Honda XR80R Service Manual

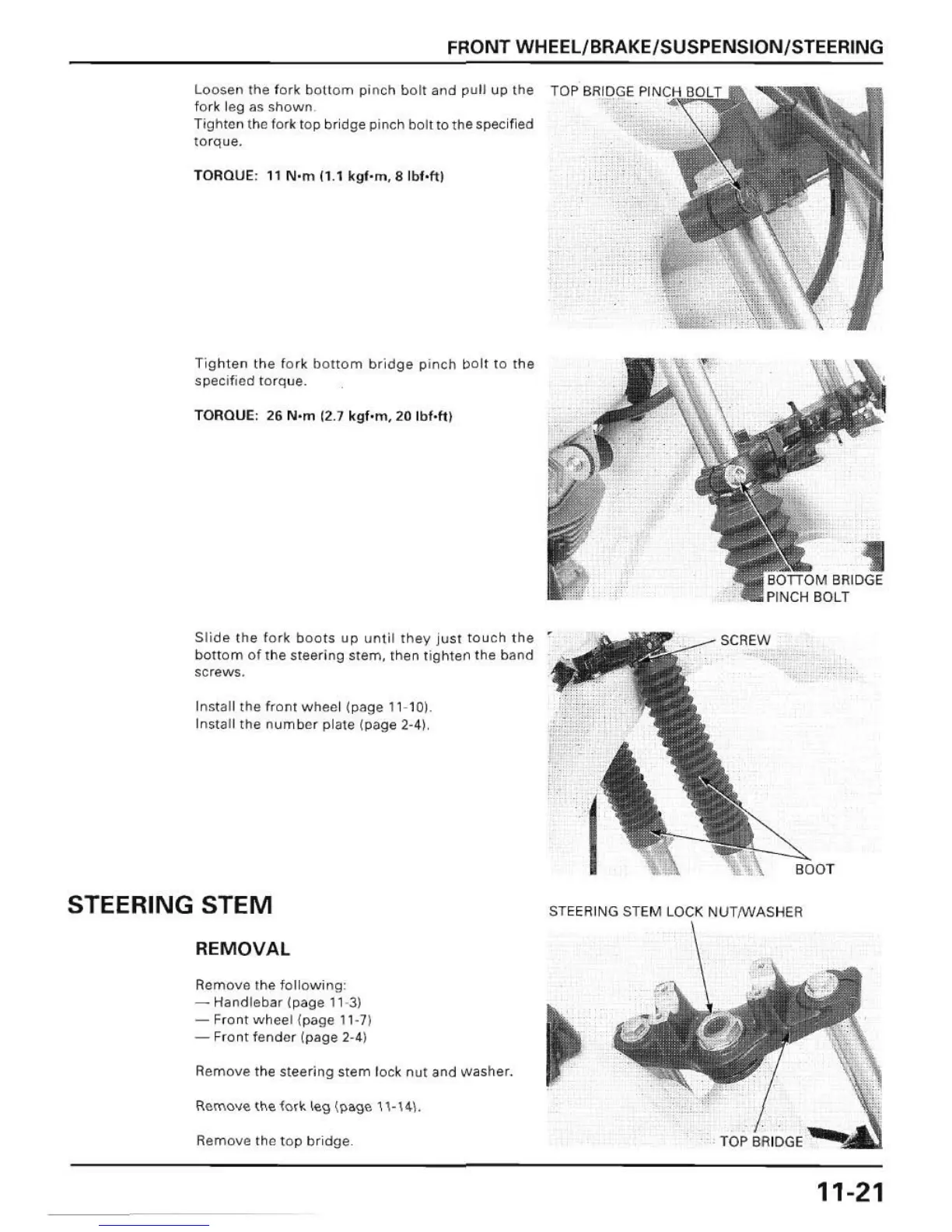

FRONT WHEEl / BRAKE /SUSPENSION/STEERING
LOO$en the fork bottom pinch boll and pu ll up the TOP BR IDGE P'N(li,~ ~
f or k leg ;JS shown .
Tig
hten the fork top bridge pinch bolt to the specified
to rq ue.
TORQUE:
11 N· m 11.1 kgf·m ,8I bf·ftl
Ti ghte n the f or k bot t om bri dg e pi nc h DOlt to the
sp ecified torque.
TOROUE: 26 N'm 12.7 kgf·m , 20 I bf ·ft l
Slide the lork boots up until they just t ouc h t he
bottom of the steering stem, then l ig hten the band
screws.
Instalilhe Iront w heel (page 11-10 ).
Instailthe nu mber plale (page 2-4).
STEERING STEM
REMOVAL
Remove th e f ol lo wing :
- Handle ba r (page 1 I - 3)
- Frontwhee ll pa ge "·71
- Front fender (page 2-4)
Remove the steering $tem lock nut and washer.
Remove tilt. fOf ~ !eglp&ge 11- \4\.
Remove the tOP br i dg e
ST EE RI NG STEM
NUTfNASH ER
T OP BR I DG E ""~"
11-21

Honda XR80R Specifications

General

Displacement	79cc
Compression Ratio	9.7:1
Fuel System	Carburetor
Ignition	CDI
Transmission	5-speed
Final Drive	Chain
Front Brake	Drum
Rear Brake	Drum
Front Tire	2.50-16
Rear Tire	3.00-14
Ground Clearance	9.1 inches
Engine Type	Air-cooled single-cylinder four-stroke
Bore x Stroke	47.5mm x 45mm
Rear Suspension	Single shock
