Honda XR80R Service Manual

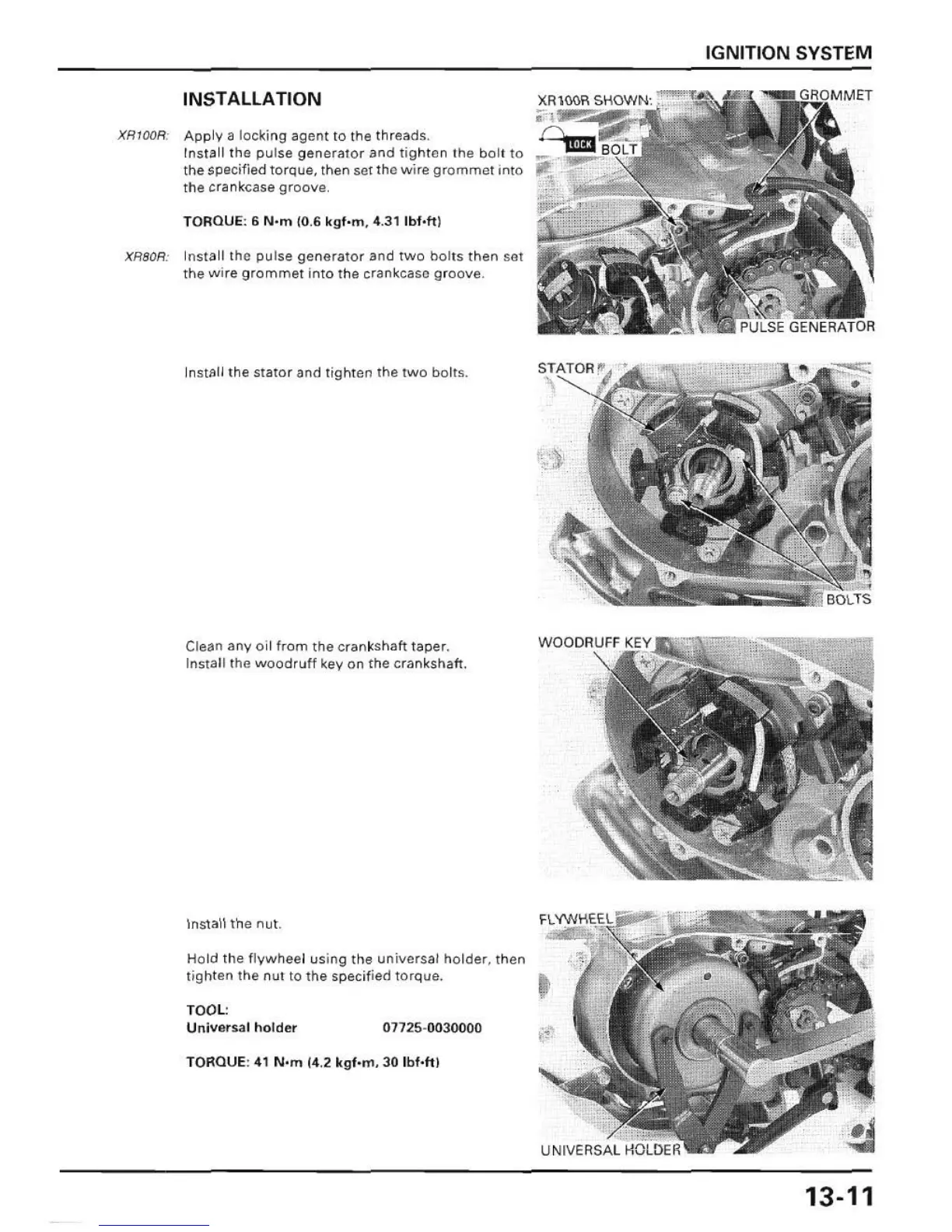

INSTALLATION
XRI00R : App l va loc king agent to the threads
Ins tall the pulse generalor and tighten the bolt to
th e specified torque, then selthe wire grommet into
th e crankcase groove ,
TORQUE, 6 N'm 10. 6 kg f.m , 4.31 Iblott)
XR80R' I nsta ll the pulse generator and t wo hOlts then set
the w ir e grommet into the cran~casc groove.
Instllil t he stator and ti ghten the two bolts.
Clean anI,' oil from the crankshaft taper.
Insta ll the woodr u ff kev on Ihe crankshaft.
Insta ll the nut .
HOld the flvwheei using the universal holder, then
tighten the nUl to the specified torq ue.
TOOL:
Un iv ersal ho l der 07725·0030000
TORQUE:
41 N·m r4 .2 kg •• m, 30 Ib '·h l
IGNITION SYSTEM
13-11
