Honda XR80R Service Manual

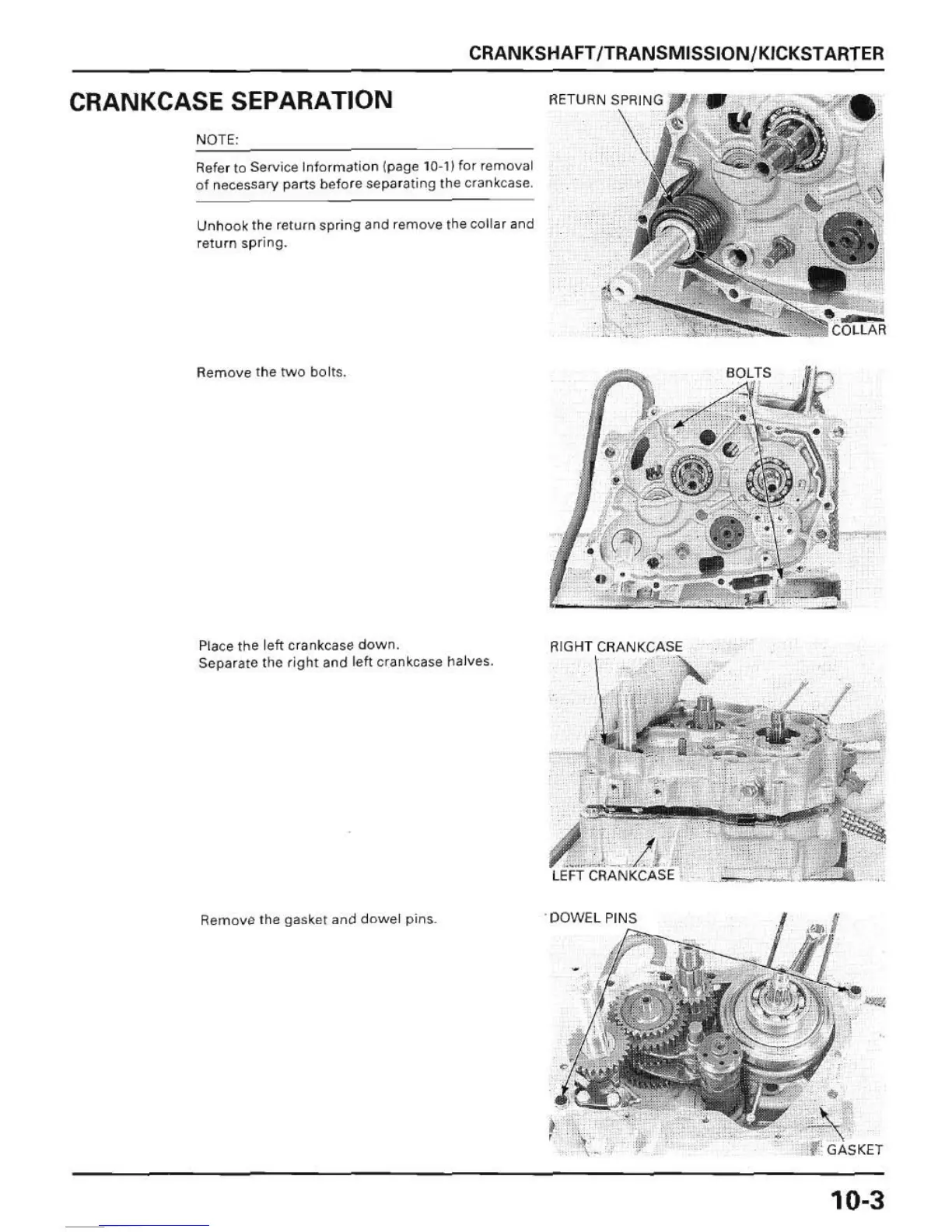

CRANKSHAFT/TRANSMISSION/KICKSTARTER
CRANKCASE SEPARATION
NO TE:
Refer (0 Service (nform <l( iOn (page 1 0-11 fo r remov ,,1
of necessa ry parts befo re separ ating the crankcase.
Unhoo k the return spring and remove the collar and
return spring.
Remove the two bOlts.
PlaCe the left cran ~ case down.
Sep"r"t!! the right and le ft crankcase halves.
Remove the gas ke T a nd dowel pins.
RIGH T CR.,,, ,eASE
. D OWEL
•
-\
( ' GASKET
10-3

Honda XR80R Specifications

General

Displacement	79cc
Compression Ratio	9.7:1
Fuel System	Carburetor
Ignition	CDI
Transmission	5-speed
Final Drive	Chain
Front Brake	Drum
Rear Brake	Drum
Front Tire	2.50-16
Rear Tire	3.00-14
Ground Clearance	9.1 inches
Engine Type	Air-cooled single-cylinder four-stroke
Bore x Stroke	47.5mm x 45mm
Rear Suspension	Single shock
