Honda XR80R Service Manual

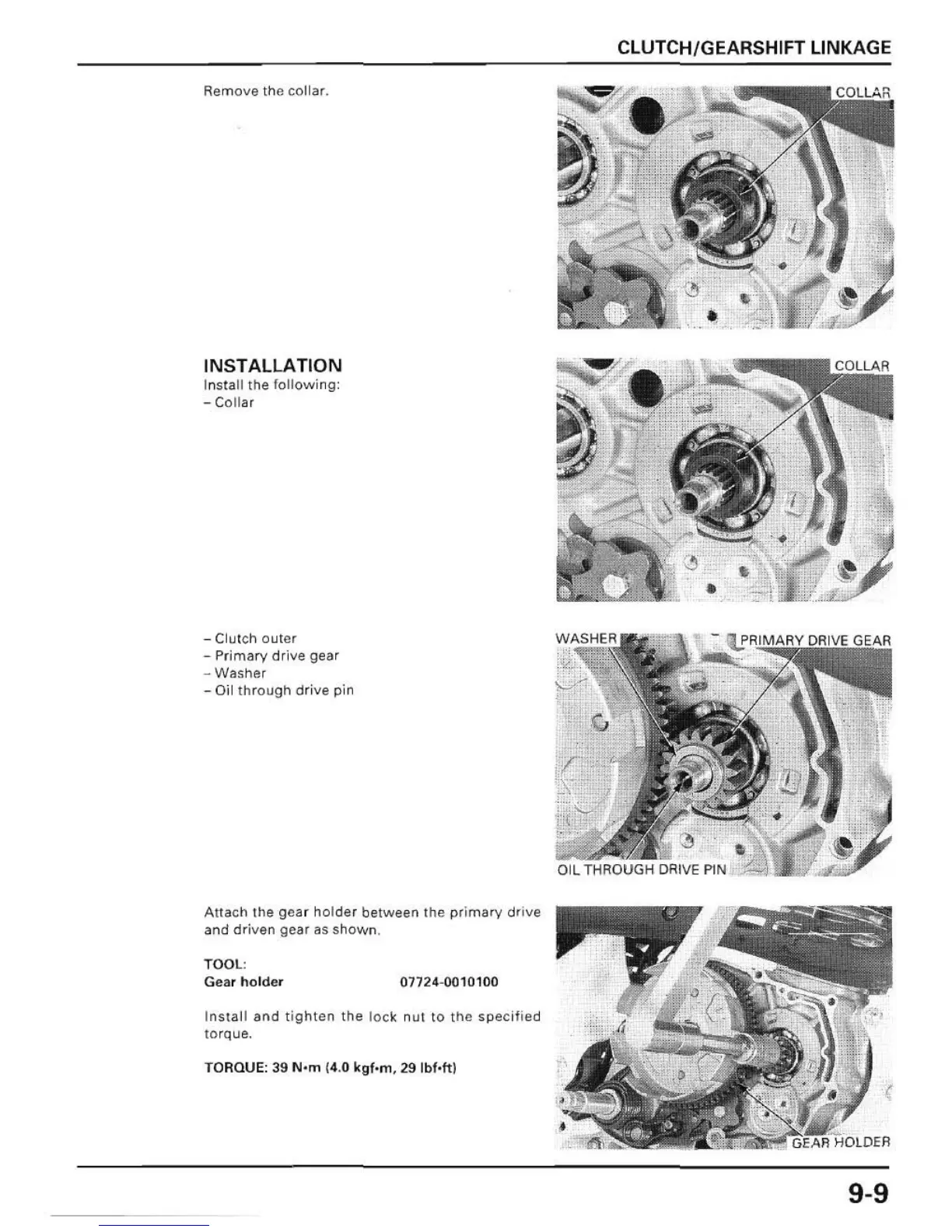

Re m ove th e collar.
INSTALLATION
Install the foll ow ing:
- Collar
- Clutch outer
- Pr imary dr ive gear
- Washe r
- Oi l
through drive pin
Attach lhe gear holder belween lhe pr imary d flve
and driven ge ar as show n.
TOOL:
Gear ho lder
07724-00101 00
InSlall an d l igh t en the lock nul to the specif ied
to rque.
TORQUE: 39
N' m (4.0 kg f. m, 29 Ibf - ftl
CLUTCH/GEARSHIFT LINKAGE
9-9

Honda XR80R Specifications

General

Displacement	79cc
Compression Ratio	9.7:1
Fuel System	Carburetor
Ignition	CDI
Transmission	5-speed
Final Drive	Chain
Front Brake	Drum
Rear Brake	Drum
Front Tire	2.50-16
Rear Tire	3.00-14
Ground Clearance	9.1 inches
Engine Type	Air-cooled single-cylinder four-stroke
Bore x Stroke	47.5mm x 45mm
Rear Suspension	Single shock
