Honda XR80R Service Manual

FRAME/BODY PANELS/EXHAUST SYSTEM
26 N-m

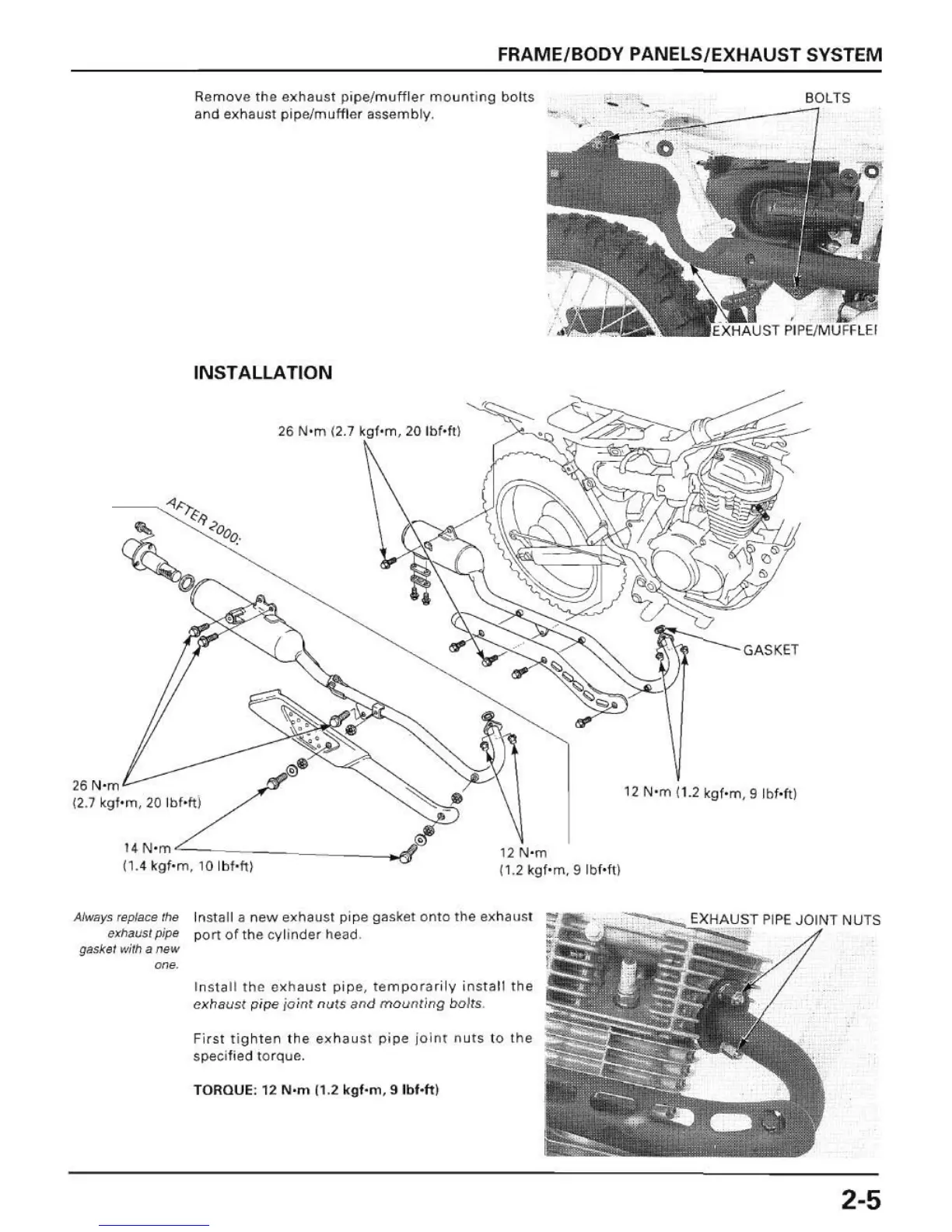

Remove the ex haust pip e/m u ffler mounting bolts
an cl exhaust pipeJm u ff ter as s em bly.
INSTALLATION
26 N-m (2 .7 " "m, "
<2.7 kgf-m, 20 Ibfofti
t 4 N - m~~~~;- __________ ____ <f
(1 .4 kg/om, 10 Ib foftl
12 N-m
(1.2 k gl om, 9 Ibl-It)
Always rEphflce rhe 10 51all a new exhaust pi pe gasket onto the exhaust
em a USI pipe p ort of t be cylinder head.
gask et wirh a neW
one .
Inst all the ex haust pipe, temporari ly install the
exheust pi pe joint nu ts and mount ing 00115 .
First tig h ten t he ex ha ust pipe j oint n U IS to the
specif ied torque.
TO RQUE: 12 N· m 11 .2 k gf· m. 9 fb f.f t)
12 N-m ( 1. 2 k gl -m, 9 Ib f.t tl
2-5

Honda XR80R Specifications

General

Displacement	79cc
Compression Ratio	9.7:1
Fuel System	Carburetor
Ignition	CDI
Transmission	5-speed
Final Drive	Chain
Front Brake	Drum
Rear Brake	Drum
Front Tire	2.50-16
Rear Tire	3.00-14
Ground Clearance	9.1 inches
Engine Type	Air-cooled single-cylinder four-stroke
Bore x Stroke	47.5mm x 45mm
Rear Suspension	Single shock
