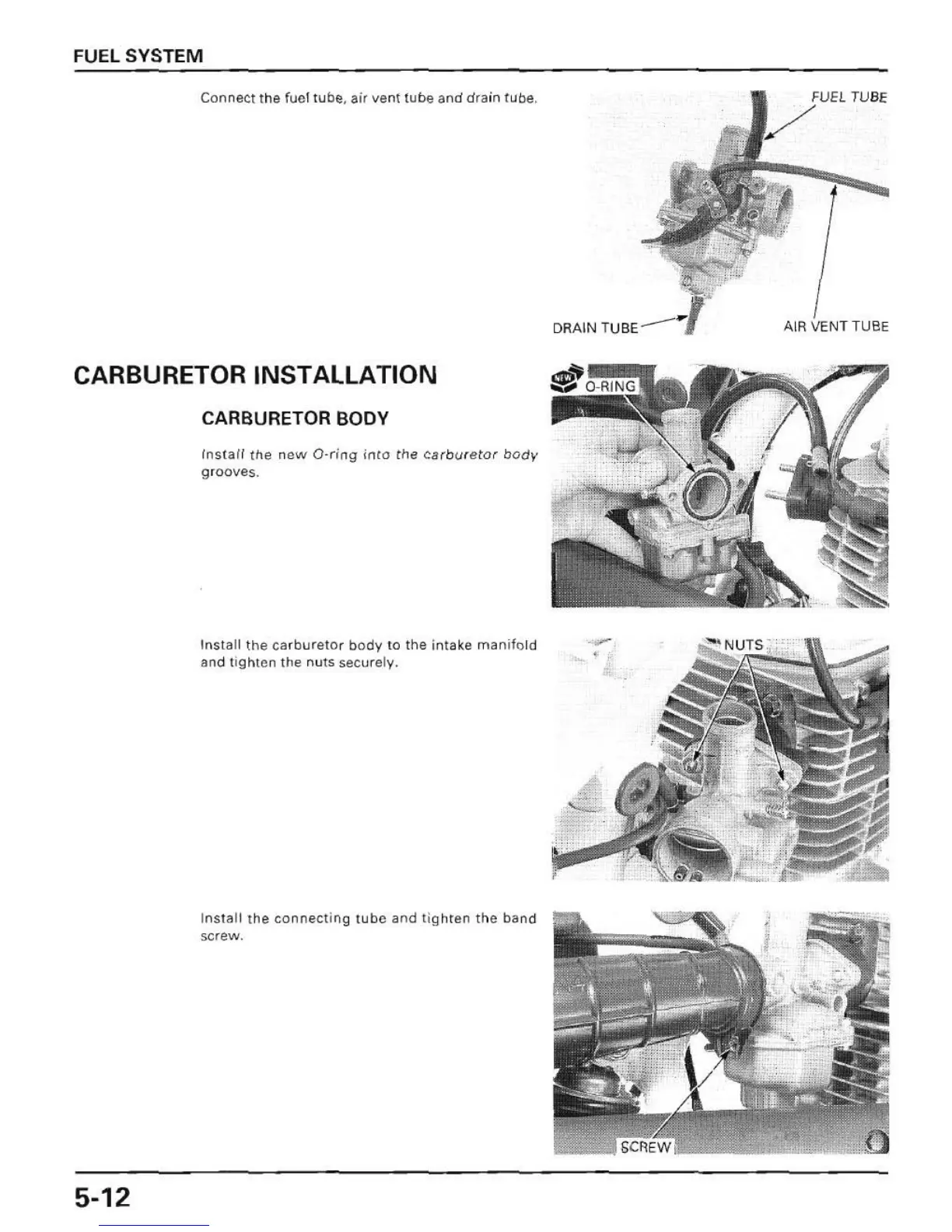

FUEl
SYSTEM
ConneCt
the
fuel
tube. air vent
tube
and
drain
tUDe
.
CARBURETOR INSTALLATION
5-12
CARBURETOR BODY
Instair
the
new
O-ring
into
the
carburetor
bOdy
grooves.
Insta
ll the ca
rburet
Or
body
to
the intake manifQld
and
tighten the nuts securely.
Insta
ll
the
connecting
tube
and
tighten
the
band
screw.
TUBE
TUBE
