Honda XR80R Service Manual

FRONT WHEEl / BRAKE /SUSPENSION/ STEERING

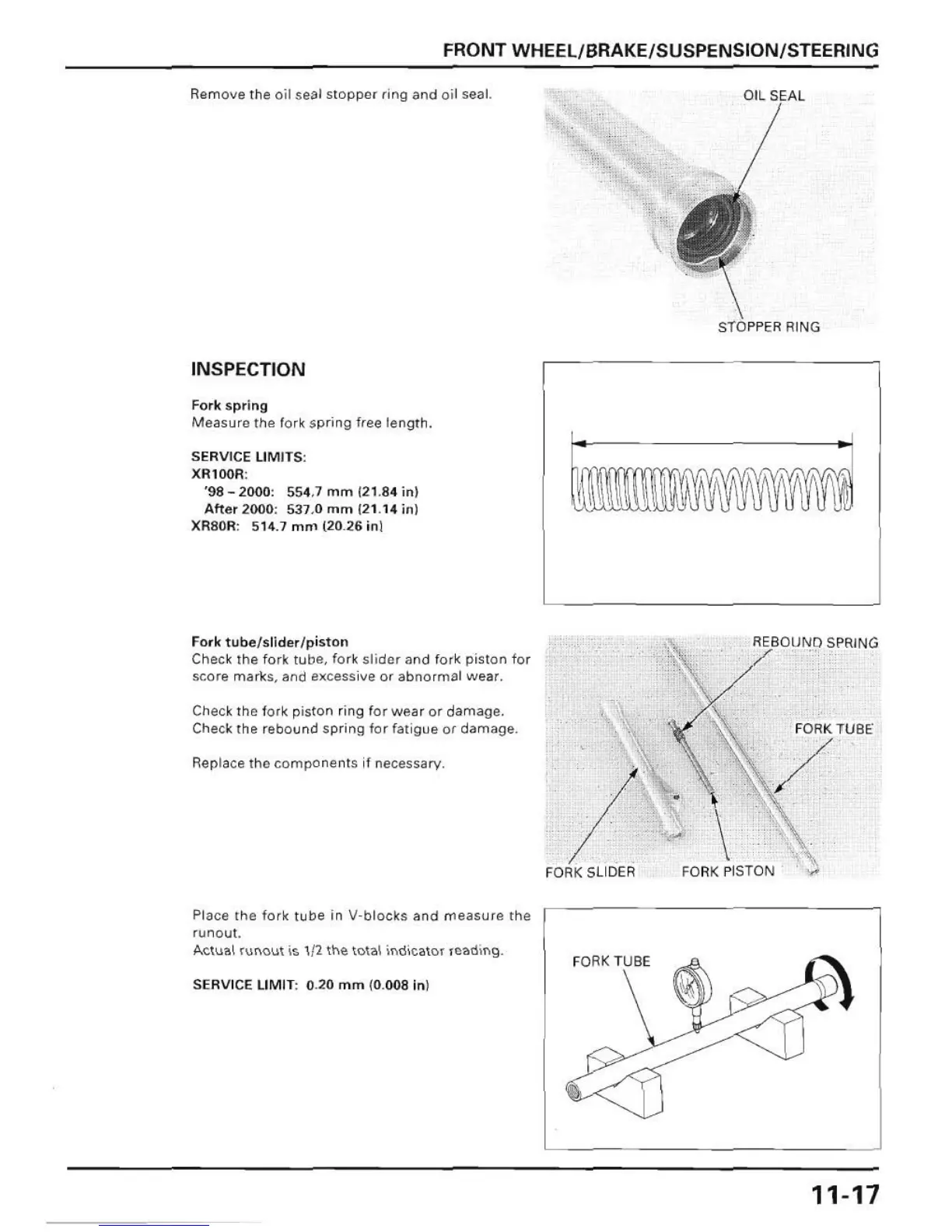

Remove the oil seal stopper ring and oil seaL
INSPECTION
Fork spring
Measure the fork spring free leng th .
S ER VI CE LI MI TS :
XR l ooR:
'98 -
2000: 554.7 mm (21,s.. in)
Aft er 2000: 537.0 mm (21 ,'" in]
XR80R: 514.7
mm (2026 inJ
Fo rk tube fslider fp ist on
Check the la rk tube. for k s li der and fork piston f or
score marks, and excessive or abnormal we ar.
Check the for k piston ring for wear or damage.
Check the rebound spring for fat i gue or damage.
Replace the components if necessary.
Place the for k tube in V-bloc ks a nd measure the
.u nout.
Aclual n. moul is 1/2 t he tola \ indicator lcad i ng.
SE RVI CE LIMIT: 0.20 mm 10.008 in )
,
sri,,, , ,, RI NG
REBOUND SPRING
/
I
FORK SLIDER
FO RK PISTON
F
OR K TUBE
11-17

Honda XR80R Specifications

General

Displacement	79cc
Compression Ratio	9.7:1
Fuel System	Carburetor
Ignition	CDI
Transmission	5-speed
Final Drive	Chain
Front Brake	Drum
Rear Brake	Drum
Front Tire	2.50-16
Rear Tire	3.00-14
Ground Clearance	9.1 inches
Engine Type	Air-cooled single-cylinder four-stroke
Bore x Stroke	47.5mm x 45mm
Rear Suspension	Single shock
