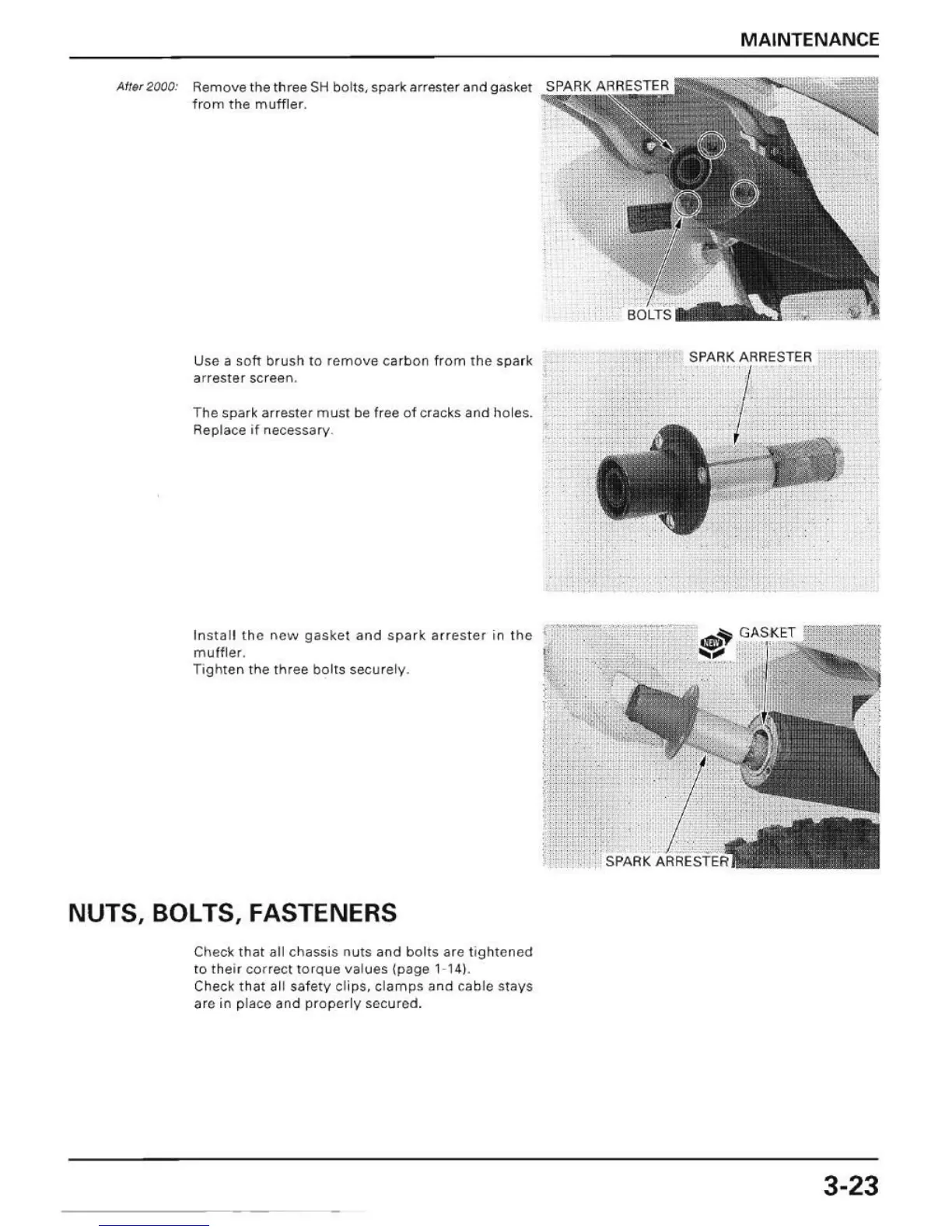

AIIsr 2000' Remove the three SH bolts. spark arrastl!( and gask et
from the muffler.
Use 11 soft brush to remove carbon from the spark
arrester screen.
The spark
anester must be free of cracks and holes.
Replace
if necessary
Install the new gaske t and spark arrester in the
muffler,
Tighten the three botls securely.
NUTS,BOLTS,FASTENERS
Check thaI ali chassis nuts and bolts are t ighte ned
10 their correc t lorque values (page 1 -1 4) .
Check
that all safety clips. clamps and cable stays
are in
place and properly secured.
MAINTENANCE
SPARK ARFIES'"
~ . GA~ ' .~
3-23

Honda XR80R Specifications

General

Displacement	79cc
Compression Ratio	9.7:1
Fuel System	Carburetor
Ignition	CDI
Transmission	5-speed
Final Drive	Chain
Front Brake	Drum
Rear Brake	Drum
Front Tire	2.50-16
Rear Tire	3.00-14
Ground Clearance	9.1 inches
Engine Type	Air-cooled single-cylinder four-stroke
Bore x Stroke	47.5mm x 45mm
Rear Suspension	Single shock
