Honda XR80R Service Manual

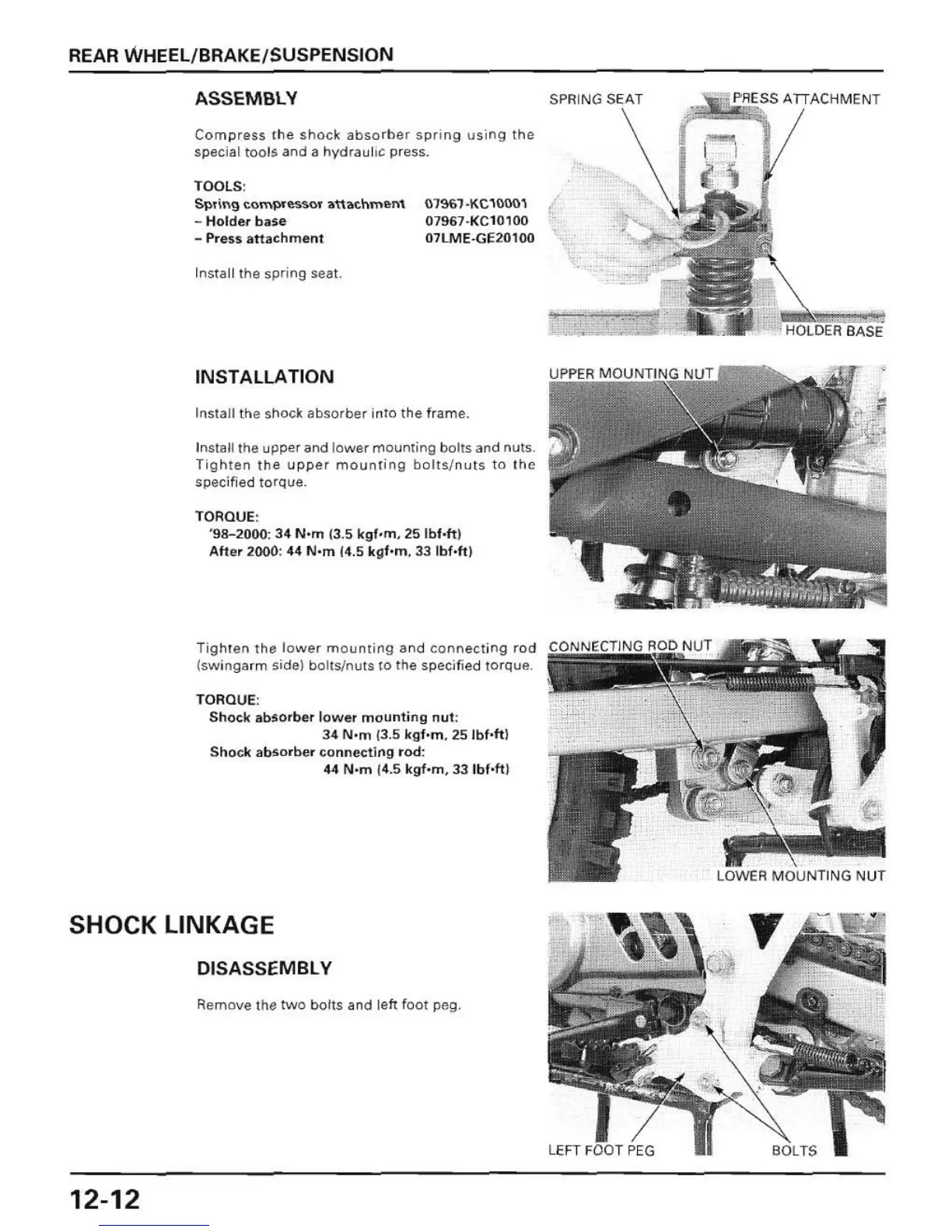

REAR WHEEL/ BRAKE / SUSPENSION
ASSEMBLV
Compress (he sho ck absor b er sp ri ng usi ng t he
special too lS and II hyd r aulic press.
TOOLS:
SP RING
Sp ring compr es$OI attach men t
- Ho lder base
- Press anachm e nl
01961·KC1 000 1 I
07967· KC10'OO
07LME-
Gf20100
InSTall the spri ng seat.
INSTALLATION
Install the shock absorber into t he frame.
Install the upper and lo wer mounti ng bolts and nuts .
Tighten the upper mounling bolts/nu ts to I he
specified to rque.
TORQUE:
'98-2000 : 34 N· m 13 .5 kgf.m. 25lb f.ft l
Aft er 2000 : 44 N'm 14. 5 kg f'm . 33 (bl ·h l
Tigh l en the lo w er m ounting and connect i ng ro d
(
swinga rm Side) bOlts/nuts (0 the specified tOrque.
TORQUE:
Shock ab~orb e r lower mount ing nut :
34 N' m (3.5 kgl·m . 25Ibf ·ft )
Shock ab~o rber c on n ect ing rod:
44 N .m (4.S k gf · m, 33 Ibf·ftl
SHOCK LINKAGE
DISASSEMBLY
Remove the tw o boilS and left 1001 peg.
12-12

Honda XR80R Specifications

General

Displacement	79cc
Compression Ratio	9.7:1
Fuel System	Carburetor
Ignition	CDI
Transmission	5-speed
Final Drive	Chain
Front Brake	Drum
Rear Brake	Drum
Front Tire	2.50-16
Rear Tire	3.00-14
Ground Clearance	9.1 inches
Engine Type	Air-cooled single-cylinder four-stroke
Bore x Stroke	47.5mm x 45mm
Rear Suspension	Single shock
