Honda XR80R Service Manual

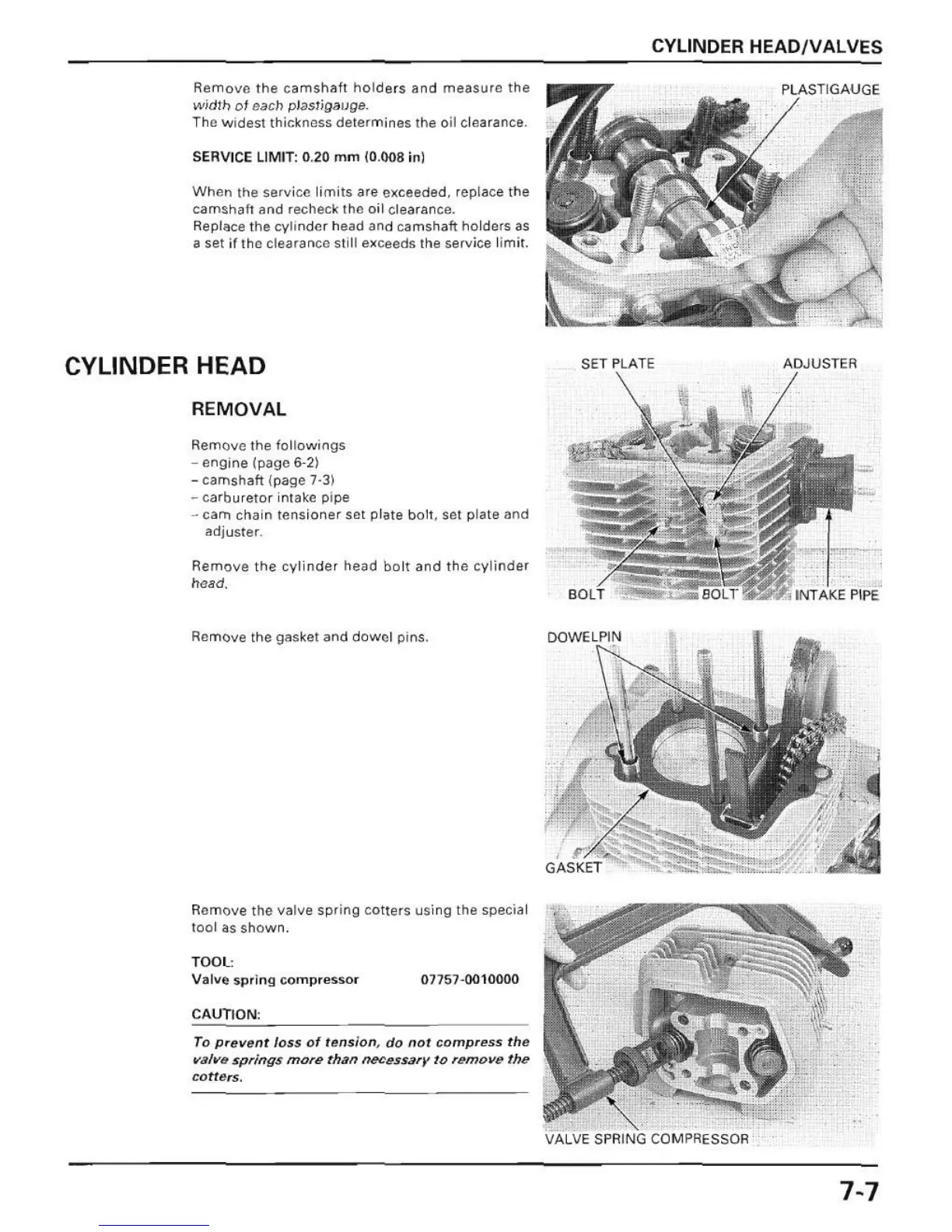

Remove the camshaft ho l ders and measure the
widtf> at each pJasligauge_
The w idest thic kness determines the oil clearance.
SERVICE LIM
IT : 0.20 mm !O.()OS in l
When the service l imits are e)(ceeded. replace th e
ca
mshaft and recheck tho oil clearance.
Replace
the cyli nder head and camshaft holders as
a set if the cleara r'l ce st ill exceeds the service li mit.
CYLINDER HEAD
REMOVAL
Remove the followings
- engine (page 6- 2)
- camshaft ( page 7·3)
- carbu r etor inta ke pipe
- cam chain tensiOr"le r se t pl'lle bolt, set plate and
adj uste r.
Remove the cyl i nde r head bolt and the cy li nder
hcad .
Re m ove the gas ke t and dow(:)1 pi ns_
R emove t he va lve spri ng COtters using t he special
1001 as shown.
TOOL:
Valve spring compressor 07157-0010000
C AUTION :
To prevent loss of t" nsion, do nOI co mpress th e
v alve spdf7g s more thllf7 fllN'e sssry 10 ,emOlle t he
carters.
CYLINDER HEAD/VALVES
SET
VALVE "'RIN~ COMPRESSOR
7-7

Honda XR80R Specifications

General

Displacement	79cc
Compression Ratio	9.7:1
Fuel System	Carburetor
Ignition	CDI
Transmission	5-speed
Final Drive	Chain
Front Brake	Drum
Rear Brake	Drum
Front Tire	2.50-16
Rear Tire	3.00-14
Ground Clearance	9.1 inches
Engine Type	Air-cooled single-cylinder four-stroke
Bore x Stroke	47.5mm x 45mm
Rear Suspension	Single shock
