Honda XR80R Service Manual

...
""
,
...

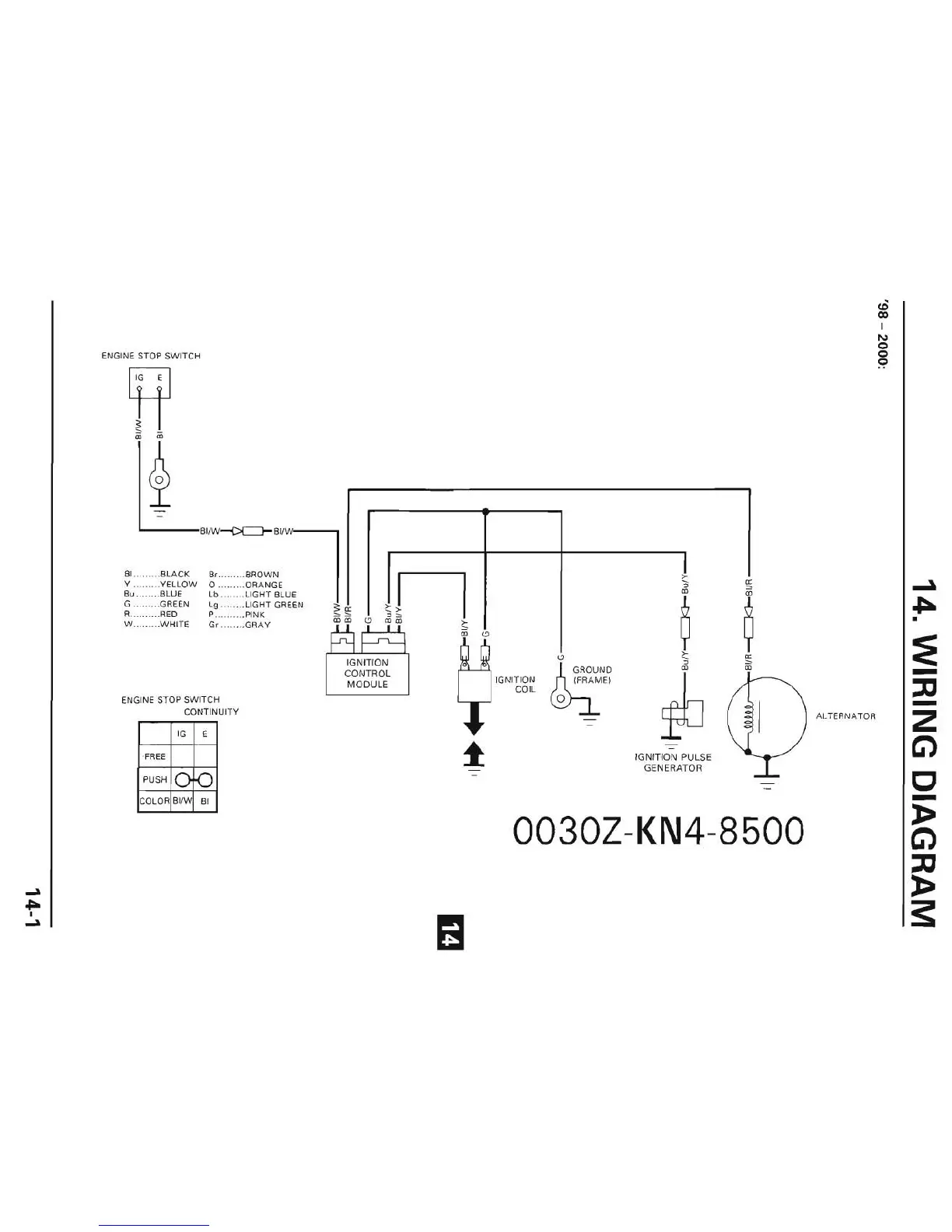

ENG I NE STOP SWITCH
"~ -«=>- " ~
81. .. __ BLACK Br allOWN
V .. " ... " VEL L OW 0 ORANGE
Bu ,. " .. BLUE Lb LIGH T BLUE
G ..... ".GR€EN lq .. .. "lIGHT GREEN "" I!
R, . . __ .RED P .. " ... ,P INK ~;;;
w. . _. __ .WHITE Gf ...... . GAAY
,n
h
.. ,
,
• 0
ENGI NE STOP SWITCH
CONT INUITY
"
,
fREE
PUSH
OlOA
0;;;
"'
IGNITION
CONTROL
MOCULE
I
I GN ITION
COIL
IGNITlON PULSE
GENERATOR
0030Z-KN4-8500
ALTERNATOR
~
~
•
:E
-
:lJ
-
2:
C)
C
-
l>
C)
:lJ
l>
s:

Honda XR80R Specifications

General

Displacement	79cc
Compression Ratio	9.7:1
Fuel System	Carburetor
Ignition	CDI
Transmission	5-speed
Final Drive	Chain
Front Brake	Drum
Rear Brake	Drum
Front Tire	2.50-16
Rear Tire	3.00-14
Ground Clearance	9.1 inches
Engine Type	Air-cooled single-cylinder four-stroke
Bore x Stroke	47.5mm x 45mm
Rear Suspension	Single shock
