Honda XR80R Service Manual

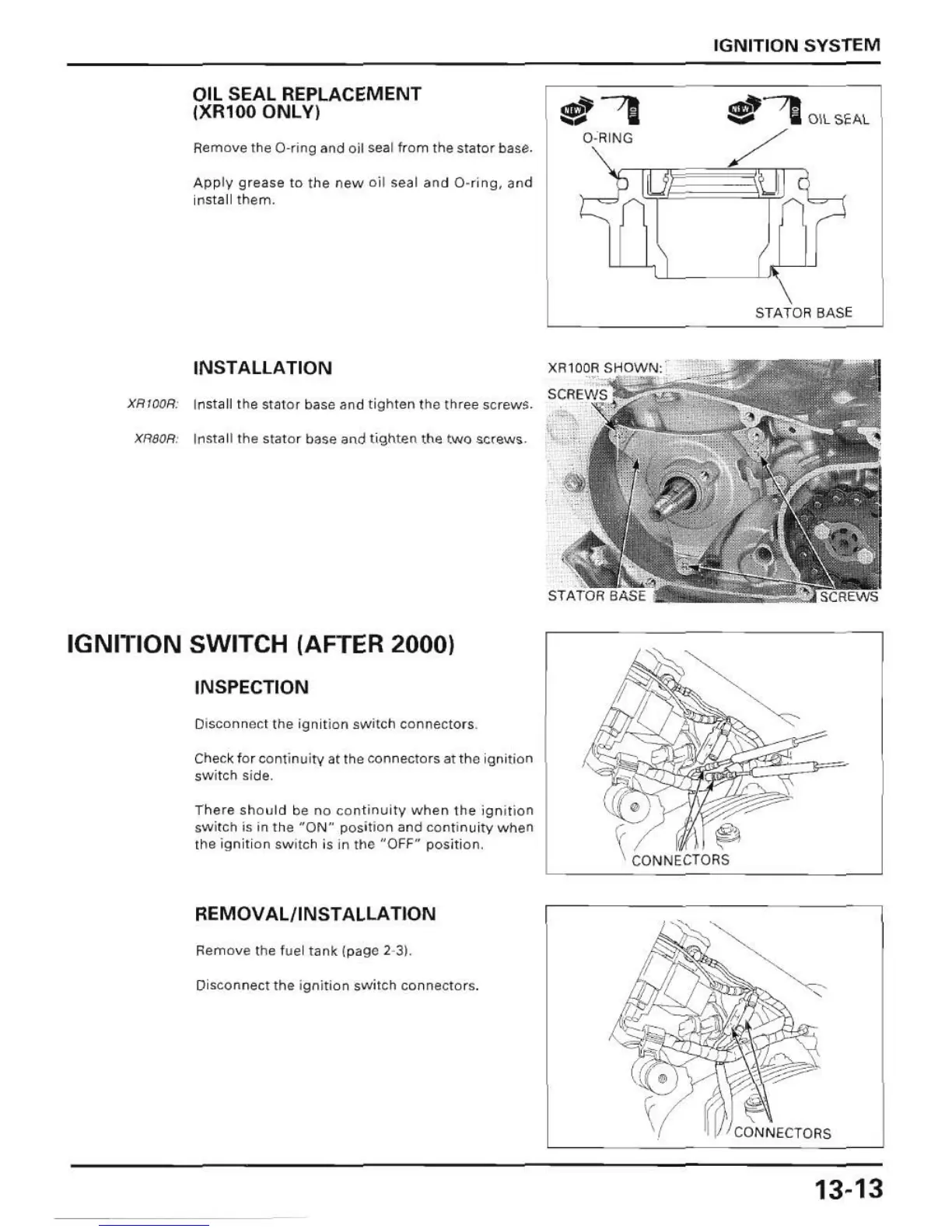

OIL SEAL REPLACEMENT
(XR100 ONLY)
Remove the O-ring and oil seal from the stator base.
App ly grease to the new oil seal and a-ring, and
install them.
INSTALLATION
XRfOOR: Install the stator base and tighten tho three screws.
X R80R : II1$t311 the stator base and t<ght.en the two screws
IGNITION SWITCH (AFTER 2000)
INSPECTION
Oi sconn(!ctthe igni tion SWitch connectors .
Check tor continuity at the connectors at the i gnition
switch side.
There should be no continuity when Ihe ignition
switch is in the ·ON" position and continuity when
the ign i tion SWllch is in the "OFF" position.
REMOVAL/ INST ALLATION
Remove the fuel tank ipago 2- 31.
Di sconnect the ignition switc h connectors .
IGNITION SYSTEM
$'-"71
~1 0\'5'"
O:RING
~
5,\ (
I-;
~
STATOR BASE
C; @Ji
\ CO NNECTORS
13-13

Honda XR80R Specifications

General

Displacement	79cc
Compression Ratio	9.7:1
Fuel System	Carburetor
Ignition	CDI
Transmission	5-speed
Final Drive	Chain
Front Brake	Drum
Rear Brake	Drum
Front Tire	2.50-16
Rear Tire	3.00-14
Ground Clearance	9.1 inches
Engine Type	Air-cooled single-cylinder four-stroke
Bore x Stroke	47.5mm x 45mm
Rear Suspension	Single shock
