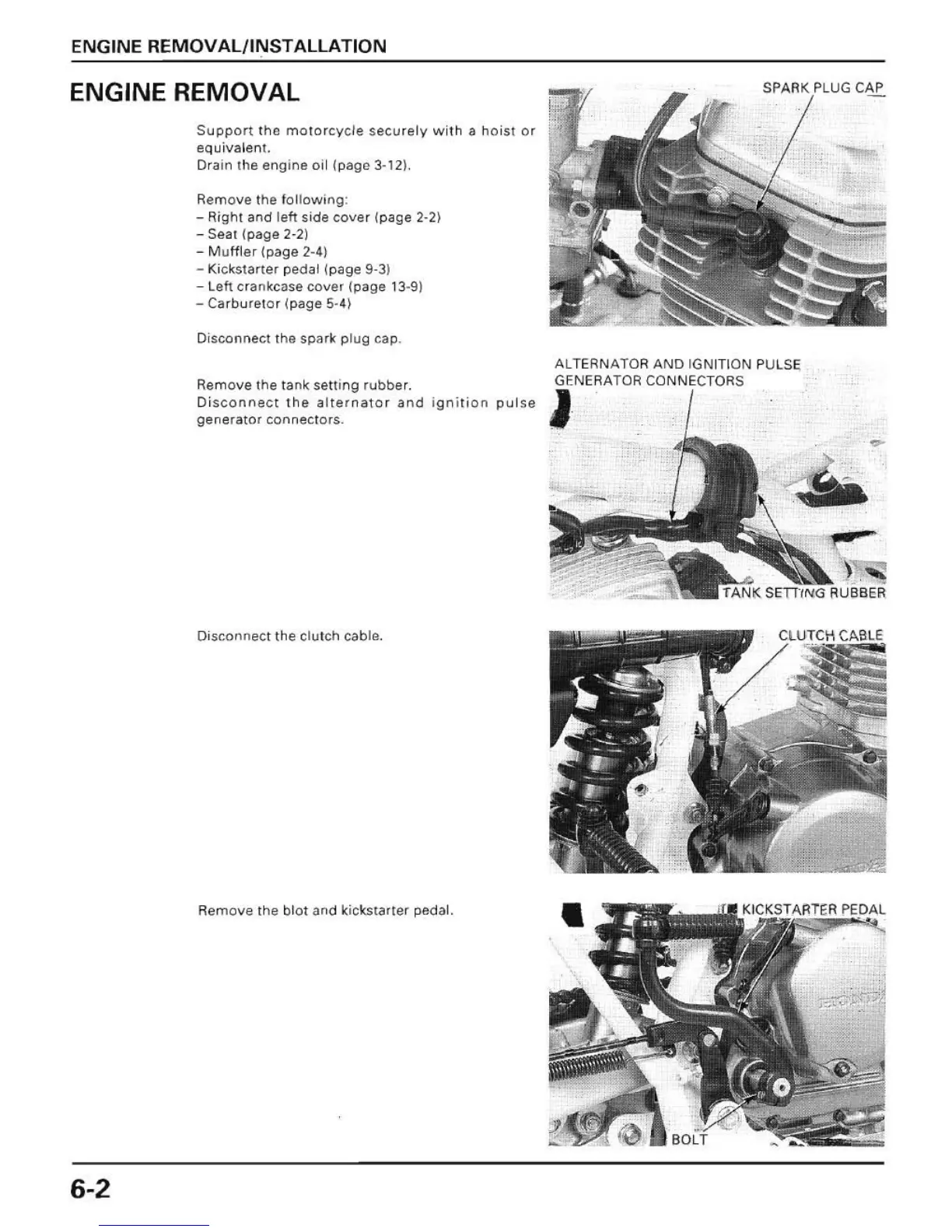

ENGINE REMOVAL/INSTALLATION
ENGINE REMOVAL
6-2
Support
the
motorcycle
securely
w i
th
a
hoist
or
equiva
lent.
D
ra
in
the
engme
oi
l (paga 3·11
).
Remove the f
ollowing
:
-
Right
and left side
cover
(page 2·2)
- Seat
(page
2·21
- Mu
ffler
(page 1·
41
-
Ki
ck
staner
pedal (page 9·
31
- Left crankcase cover
Ipage
13·91
-
Carburetor
(page 5·
4)
Disconnect
the
spark plug cap.
Remove the tank setti
ng
rubber.
Disconnect
the
alternator
and
i
gn
i
tion
pulse
generator
connectors.
Disconnect the
clutch cabl
e.
Remove
the
blot
and
~
i
c
ks
tarter
pedal.
ALTERNAT
OR
AND IGNITION PULSE
GENERAT
OR
CONNECTORS
J
