Honda XR80R Service Manual

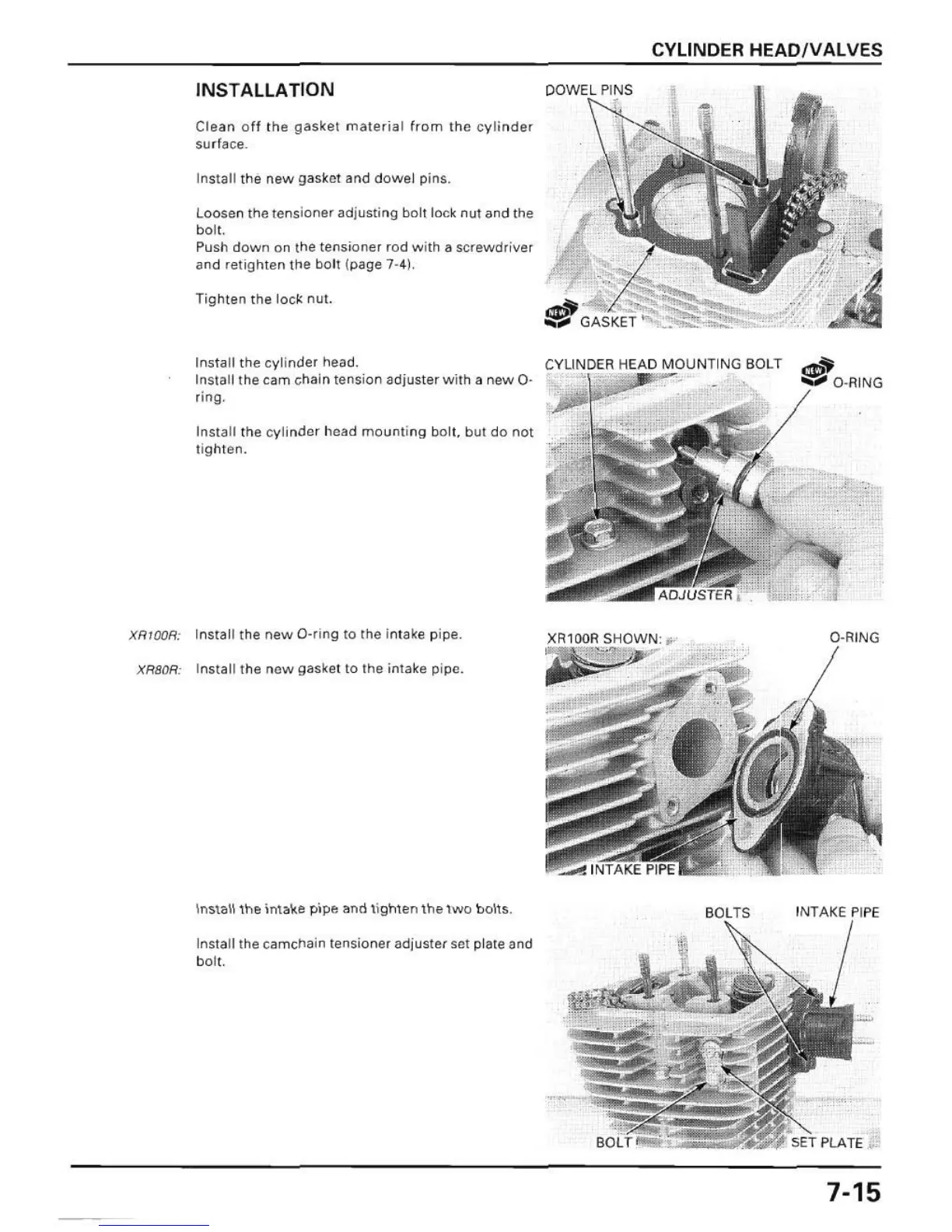

INSTALLATION
Clean 011 the gasket materia l from the cy li nde r
surface.
Install
the new gasket and dowel pins.
Loosen the tensioner adjusti
ng bolt lock nut and the
bo l t.
Push down on the tens io ner rod with a screwdriver
and
relighten the bolt (page 7-4).
Tighten {he loc k nut .
Install {he cyli nder head.
Install the cam chain tensi on adjuster w i th a new O·
ring
Install the cyl inder head mount ing bolt . bul do not
ti ghte n.
XR1 00 R: Install the new O-ring to the Intake pipe.
XR80R; Install the new gasket to the intake pipe.
Install the in take pipe lind ti ghten the two bolts.
Install t he camchil in tensioner adjuster SCI plate and
bo lt.
CYLINDER HEAD/VAlVES
~ou r <T ' N(; 60CT
O-RING
XR100R SHOWN: 1'_
~
7-15

Honda XR80R Specifications

General

Displacement	79cc
Compression Ratio	9.7:1
Fuel System	Carburetor
Ignition	CDI
Transmission	5-speed
Final Drive	Chain
Front Brake	Drum
Rear Brake	Drum
Front Tire	2.50-16
Rear Tire	3.00-14
Ground Clearance	9.1 inches
Engine Type	Air-cooled single-cylinder four-stroke
Bore x Stroke	47.5mm x 45mm
Rear Suspension	Single shock
