Honda XR80R Service Manual

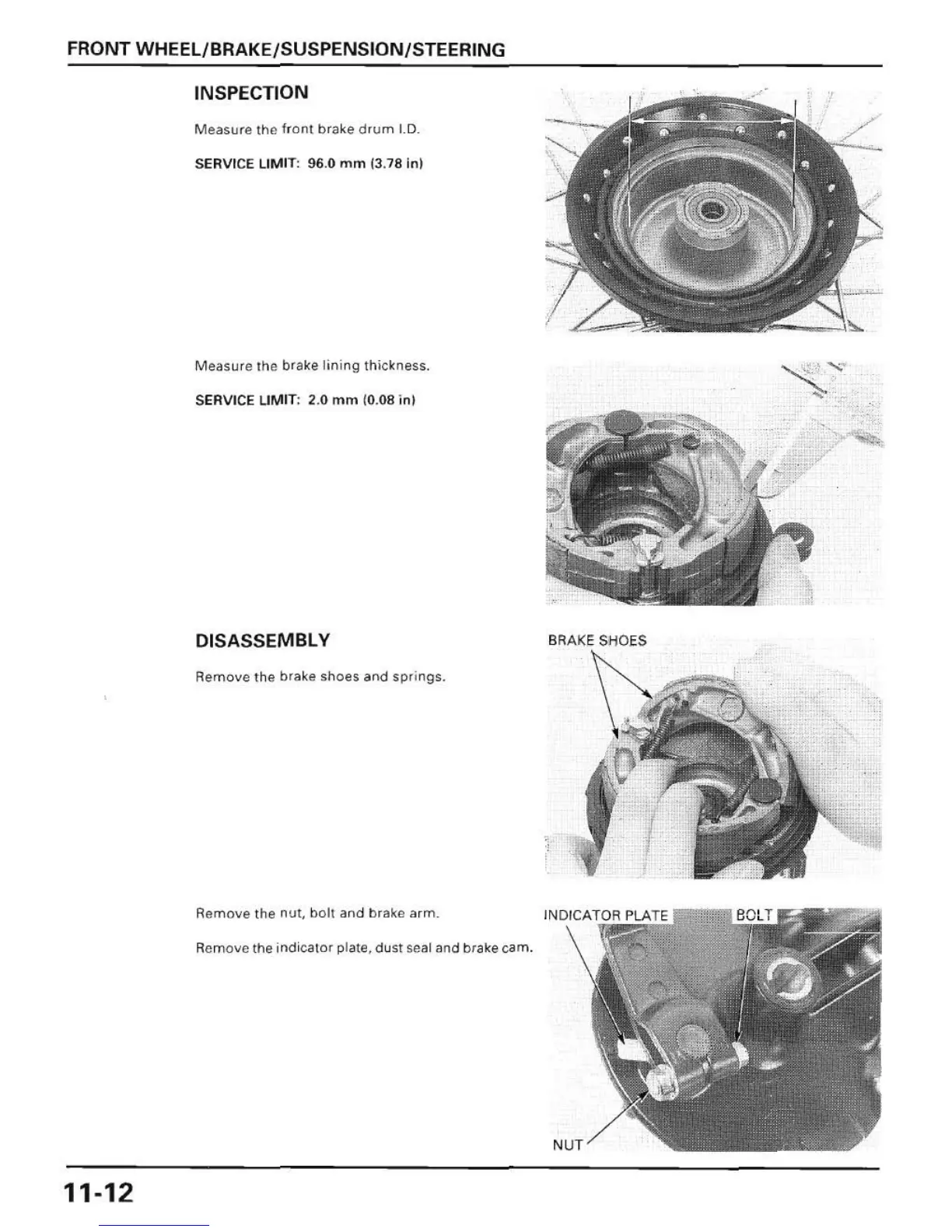

FRONT WHEEl / BRAKE /SUSPENSION/STEERING
INSPECTION
Measure the fr ont bra ke drum 1.0.
SE RVICE LI MI T: 96.0 mm 13 .78 Inl
Measure the brake lini ng thickness.
S ER VI CE LIMIT : 2.0 mm (0. 08 i nl
DISASSEMBLY
" ,,,,,,SHOES
Remove thl! bra ke shoes and sp rings.
Remove the nut, bolt and brake arm .
Remove the indicato r plale. dust se al and brake cam.
11-12

Honda XR80R Specifications

General

Displacement	79cc
Compression Ratio	9.7:1
Fuel System	Carburetor
Ignition	CDI
Transmission	5-speed
Final Drive	Chain
Front Brake	Drum
Rear Brake	Drum
Front Tire	2.50-16
Rear Tire	3.00-14
Ground Clearance	9.1 inches
Engine Type	Air-cooled single-cylinder four-stroke
Bore x Stroke	47.5mm x 45mm
Rear Suspension	Single shock
