EXCEL CARE CONTROL ICONS ALPHABETIC REFERENCE
215 74-5577–33 (US)
EN2B-0184 GE51 R0518 (Europe)

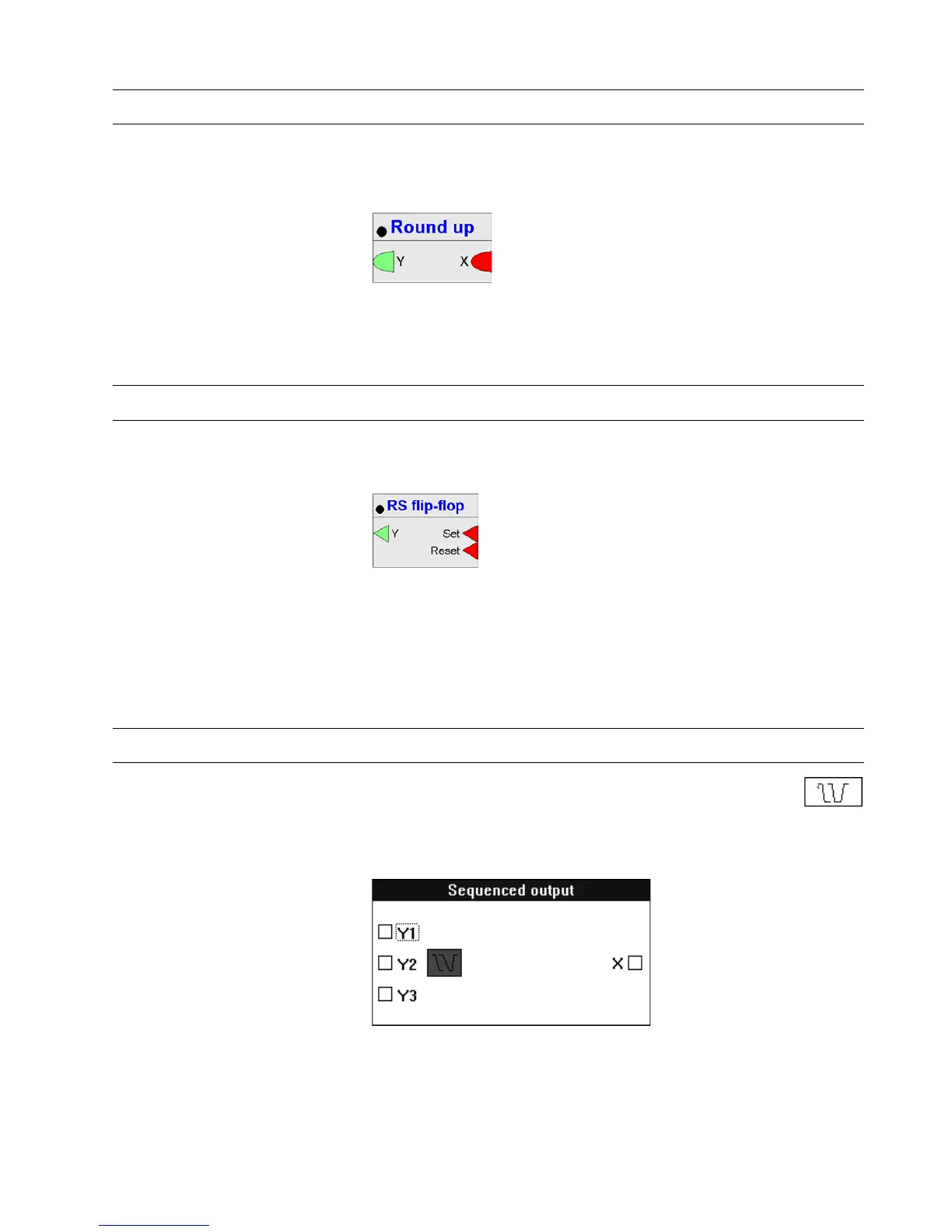

Round up (Excel Web / Excel Web II)
Function Rounds the input value up to the next integer value, e.g. 3.1 becomes 4, -3.1
becomes -3.
I/O Dialog Box
Input One analog input (X).
Output One analog output (Y).
Internal Parameters None.
RS flip-flop (Excel Web / Excel Web II)
Function Sets the output "Y" to TRUE(1) if the "Set" input is TRUE(1) until the "Reset" input
becomes TRUE(1).
I/O Dialog Box
Input Two digital inputs (Set, Reset).
Output One digital output (Y).
Internal Parameters None.
Sequence / SEQ
Function Sequence from one to three analog outputs dependent on an analog input. The
SEQ operator divides a controller signal into up to three output signals.
I/O Dialog Box
