EXCEL CARE CONTROL ICONS ALPHABETIC REFERENCE
223 74-5577–33 (US)
EN2B-0184 GE51 R0518 (Europe)
Setup for the internal parameters:
Parameter Availability Only the Y parameters for SEQ are available in the controller after program
installation.
Negative Values Use the Ratio (RAMP) function to generate negative values.

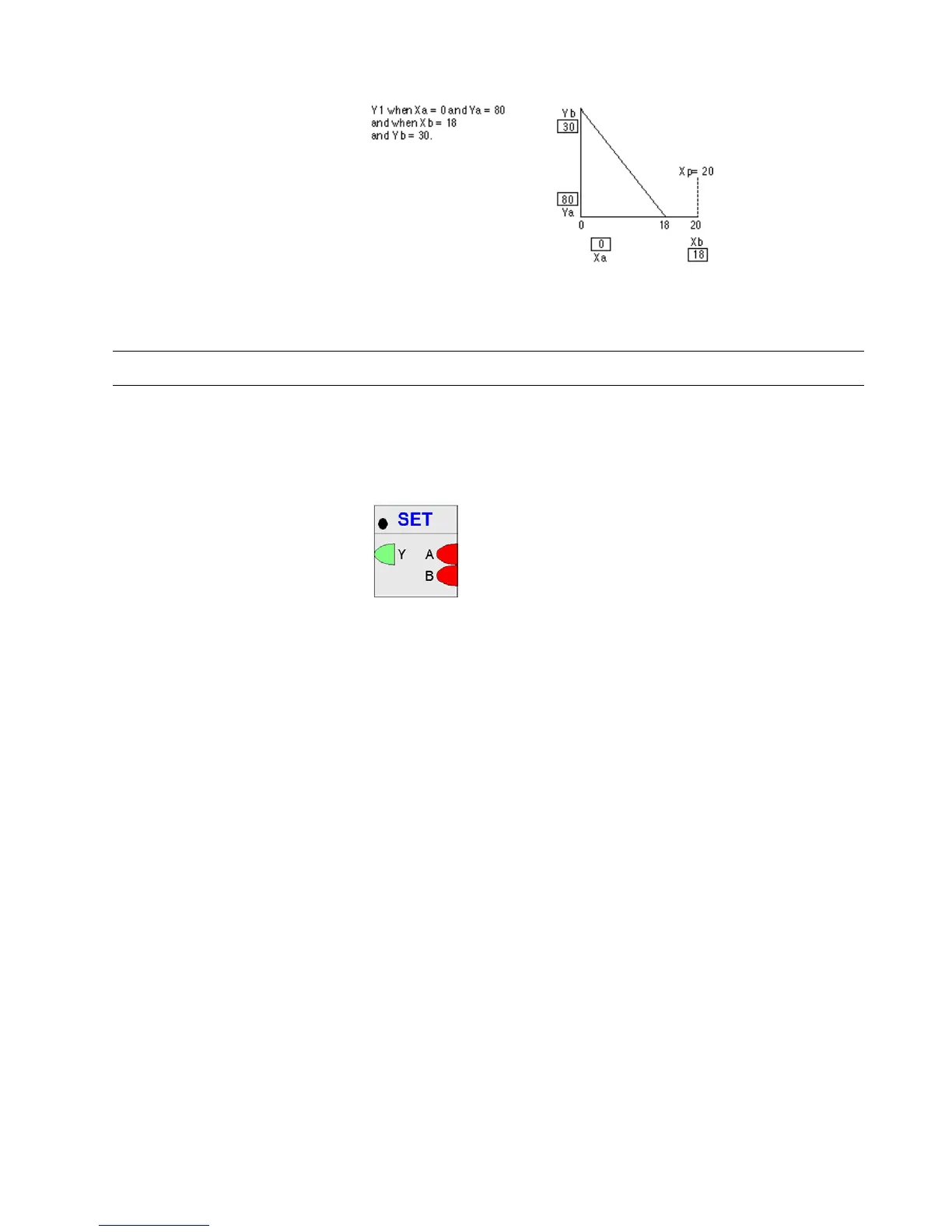

SET (Excel Web / Excel Web II)
Functions Legacy RACL function: Set the output depending on the comparison of the inputs.
Formula Y=FALSE (0) if A < B
Y=TRUE (1) if A > B
Y is not changed if A = B.
I/O Dialog Box
Inputs Two analog inputs (A and B).
Outputs One output (Y) result of the comparison A with B.
Internal Parameter None.
