Internal Parameters
Set Parameter 1 to 0 for bounded output. Set Parameter 1 to 1 for unbounded
output.
If OB1 and OB2 are set to the same value, then the output will equal this value. If
IB1 and IB2 are set to the same value, then the output will equal OB2.
Totalizer XFM
Function The totalizer module:
1. Displays and outputs current hourly and daily energy usage.
2. Stores, displays, and outputs past hourly, daily, and monthly energy usage.
3. Displays total energy usage from program start-up and current monthly usage.
Energy usage can include electrical current, water, gas, or heat. This function
eliminates the need to connect an external frequency counter.

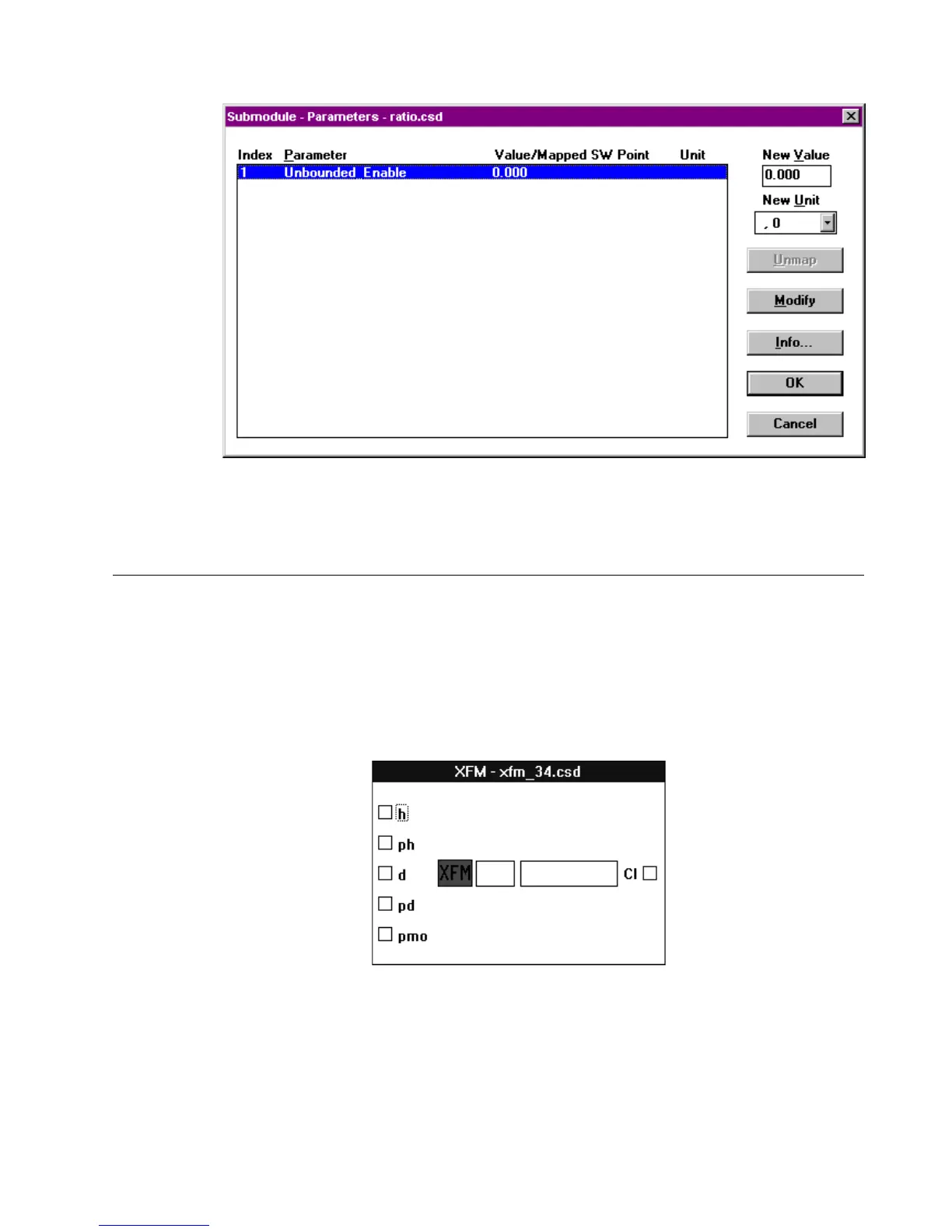

I/O Dialog Box
Inputs CI = Counter Input (Totalizer input from controller)
The Counter Input requires one point without graphic of the fast totalizer type.
Outputs Five outputs:
To Next Page
