EXCEL CARE CONTROL ICONS ALPHABETIC REFERENCE
43 74-5577–33 (US)
EN2B-0184 GE51 R0518 (Europe)
IDT Example 2 In Example 1, there may be an additional requirement to send the ADD output signal
not only to one analog point, but also to several analog and digital points. The digital
pseudopoints should show if at least one pump is running.

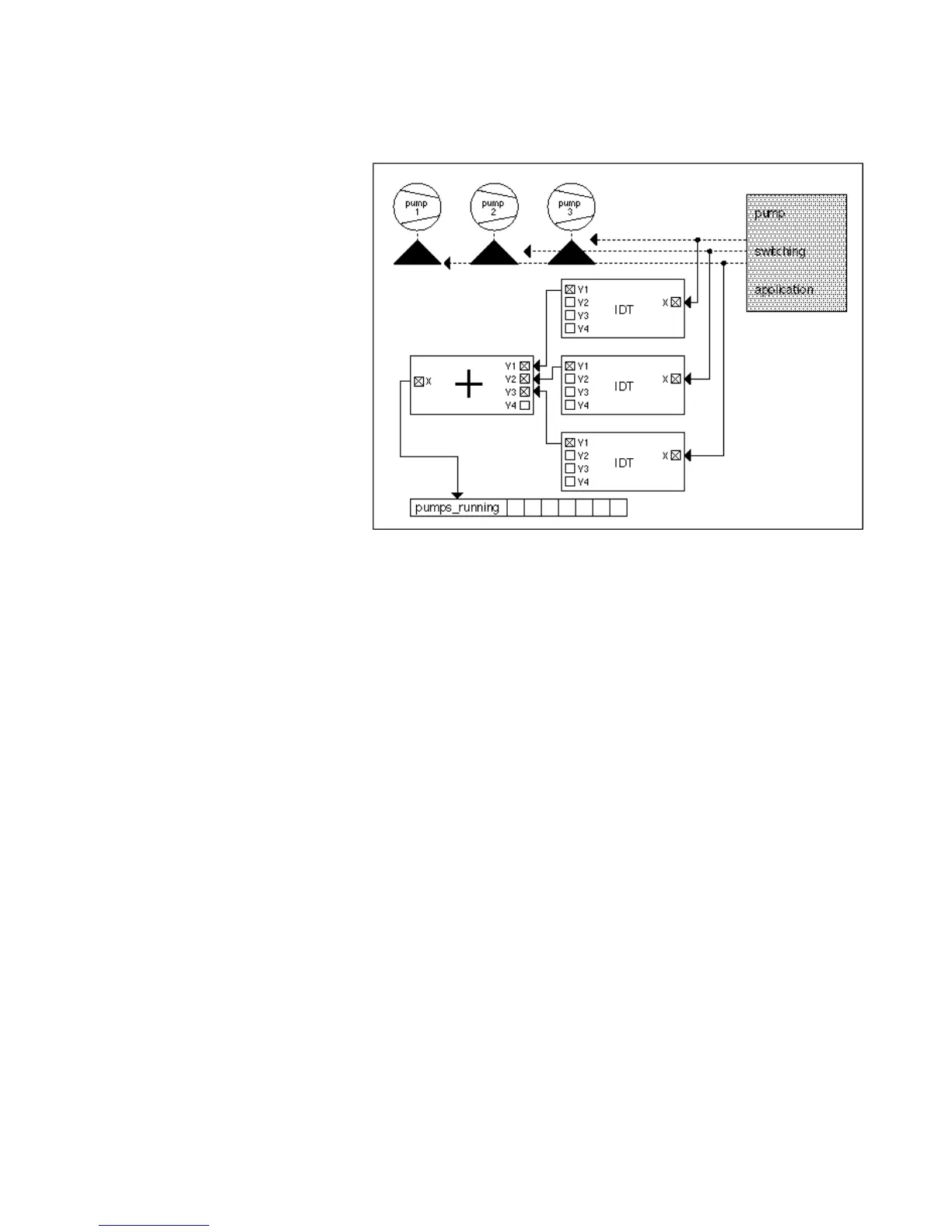

The following diagram shows how this example is accomplished:
The ADD output now connects to two additional IDT icons to increase the number of
connectable analog outputs. One of the additional IDTs outputs to two analog
points. The other IDT outputs to two digital pseudopoints. The digital pseudopoints
indicate when at least one pump is running.
