Fire Alarm Control Panel IQ8Control C/M
126 FB 798951.GB0 / 01.09
11 Functionality for fire alarm control panels
The fire alarm control panel can be programmed to activate door control systems by installing an door control
transponder. The esserbus
®
door control transponder is operated as a bus device on the analog loop of the
IQ8Control fire alarm system. The corresponding detector zones for activating the door controls are
programmed in the panel’s customer data.
This requires operating system software from Version V3.01 and programming software tools 8000 from Version
V1.06.3 upwards.
For further information about door control systems and the door control system functions, refer to technical
information about door control systems (part no. 798840) on the website www.esser-systems.de.
Serial
essernet
®
interface
esserbus
®
WINMAG
esserbus

door control
transponder
Power supply
Release
Button
Contact -
Relay 2
Remote
indicator
Detector zone for fire
Door Control System Application
Magnetic locking device
Graphic layout annunciator panel
esserbus
®
-transponder 32 optocoupler

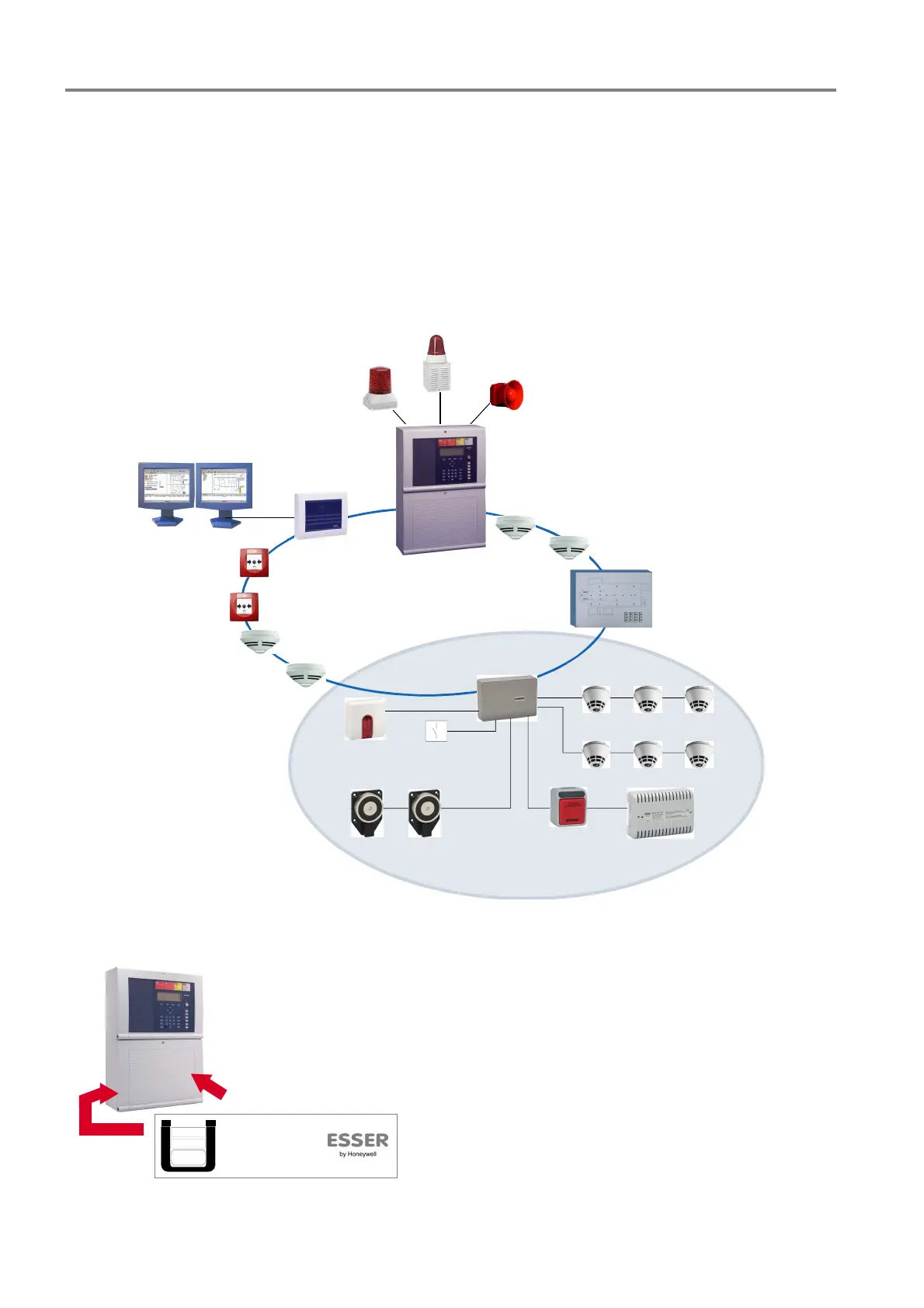

Fig. 100: Door control system control (schematic diagram)
11.1.1 Use of the analog loop module in door control systems
FSA-Koppler
808619.10
VdS G 206042
1008
ESSER
Z-6.5-xxxx
VdS
18100
When using analogue loop modules
(784382.10/804382.10) in door control systems, the label
enclosed in the module must be attached onto or in the
FACP.
Fig. 101: Example of label with the conformity mark
