Fire Alarm Control Panel IQ8Control C/M
FB 798951.GB0 / 01.09 65
5.1.2 esserbus
®
-PLus Analog loop module (Part No. 804382 / 804382.10 / 804382.D0)
This module provides the "esserbus
®
PLus" loop mode, e.g. for direct connection of audible loop devices. Note
that the esserbus
®
PLus operation requires special components and panel settings. Observe load factor refer
table chapter 5.1.3.
Mixed operation of Standard and esserbus
®
PLus function is not possible!
esserbus
®
-PLus
Fire alarm and extinguishing
computer 8010

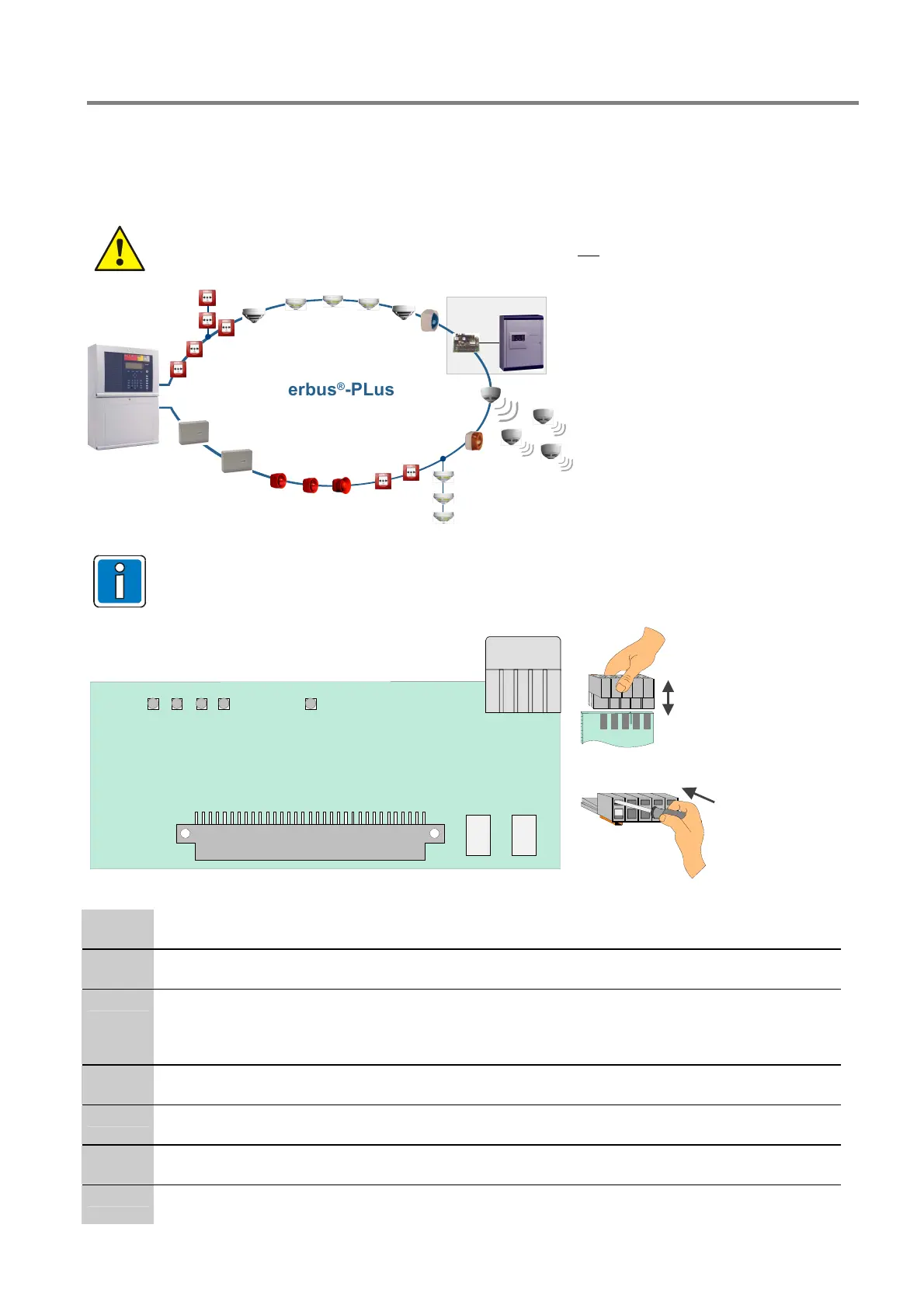

Fig. 56: esserbus
®
-PLus
 Connect cable shielding of the analog loop only at one side.
 When using the module in door control systems, place the enclosed labels on or in the FACP
housing (see chapter 11.1).
removable
X2
K2 K1
LED5
LED2
LED3LED1
LED4
B
-
B
+
A
-
A
+
Released cable
terminal: Press
in upper tab and
fit cable below.
Fig. 57: Analog loop module (Part No. 804382 / 804382.10 / 804382.D0)
X 1/2 64-way plug connector to micro module slot of the Basic module, Field device module or
Extension module
K1,K 2 Bi-directional loop interrogation by loop isolators
(K1 = A+, A- / K2 = B+, B-)
LED 1 (SMD) red, flashing « +42V supply voltage failure or communication to
control panel processor interrupted
(SMD) red, lit
« Module in CPU failure mode
(control panel CPU failure)
LED 2 (SMD) yellow, flashing « Processor program running – normal mode
(SMD) yellow, flashing rapidly
« Module in test mode
LED 3 (SMD) red, lit « esserbus
®
PLus Mode activated
+42 V loop voltage
LED 4 (SMD) yellow, flashing « Module reset
(SMD) yellow, lit
« Module defect
LED 5 (SMD) red, flashing « in normal mode in time with communication on the loop
(SMD) red, lit
« Short circuit on analog loop
