Fire Alarm Control Panel IQ8Control C/M
134 FB 798951.GB0 / 01.09
15.1 Extension housing for two batteries (Part No. 789300 / -01)
Up to 2 batteries 12 V / 24 Ah may be placed inside the lower housing part of the IQ8Control M or in the
extension housing (part no. 783000 / -01). The required battery fastener (plastic device) is delivered with the
panel equipment.
1
Place batteries as shown and insert fastener.
Assemble the additional battery mount by
pushing in.

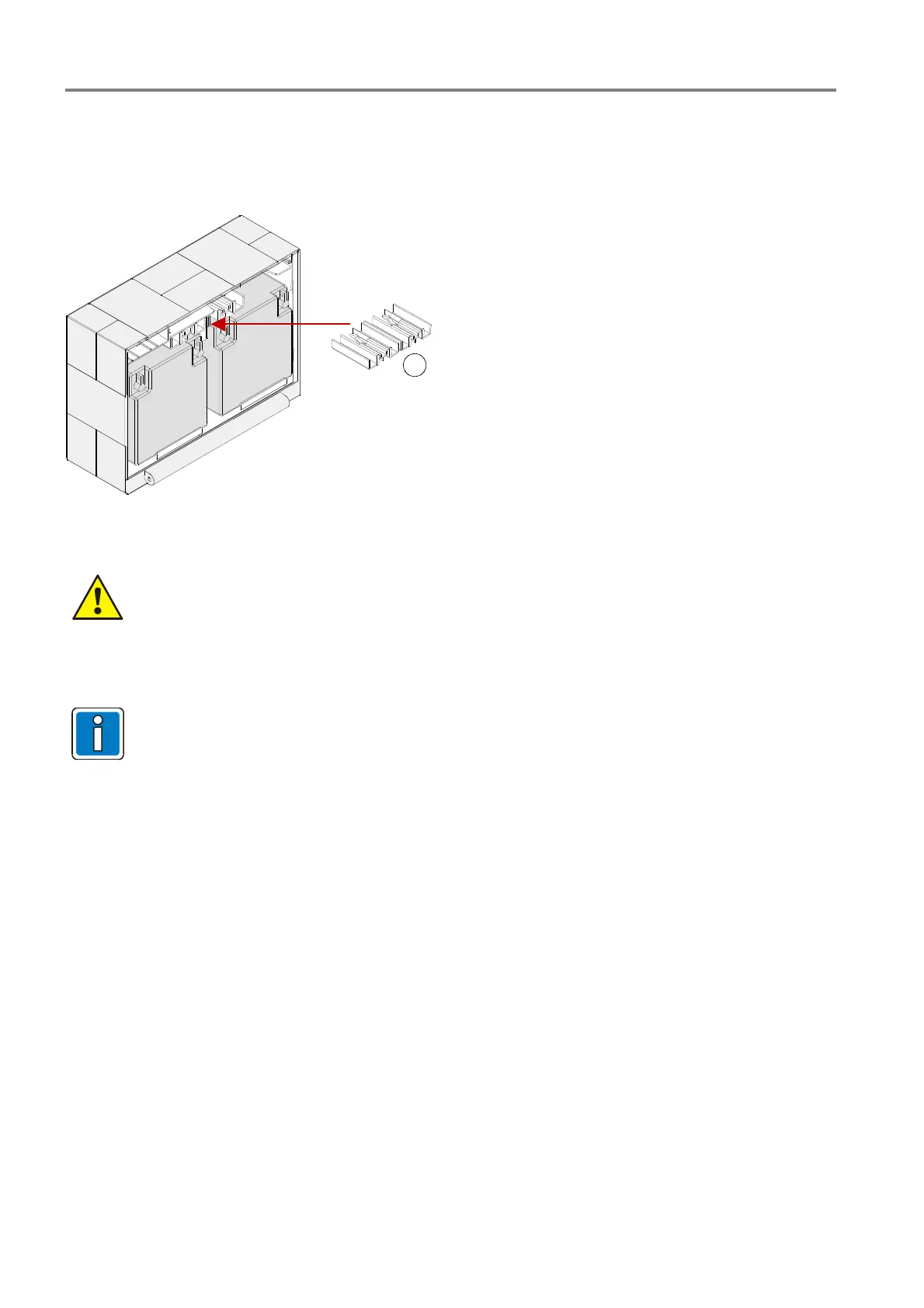

Fig. 108: Mechanical battery in the housing of the IQ8Control M or in the Extension housing
Damage to the system!
Please note that depending on the rechargeable batteries used, a significant weight must be
supported by the fastening screws of the extension housing. It is not permissible to install the
rechargeable batteries without these fastening clamps.
Refer Chapter 4.1.3 „Emergency power supply“.
