Fire Alarm Control Panel IQ8Control C/M
136 FB 798951.GB0 / 01.09
17 Mounting / Replacing of the Panel front + Printer
17.1 Heat transfer Printer without paper take-up unit
(Part No. 7868xx / 7869xx)
Panel front for heat transfer Printer without paper take-up unit.

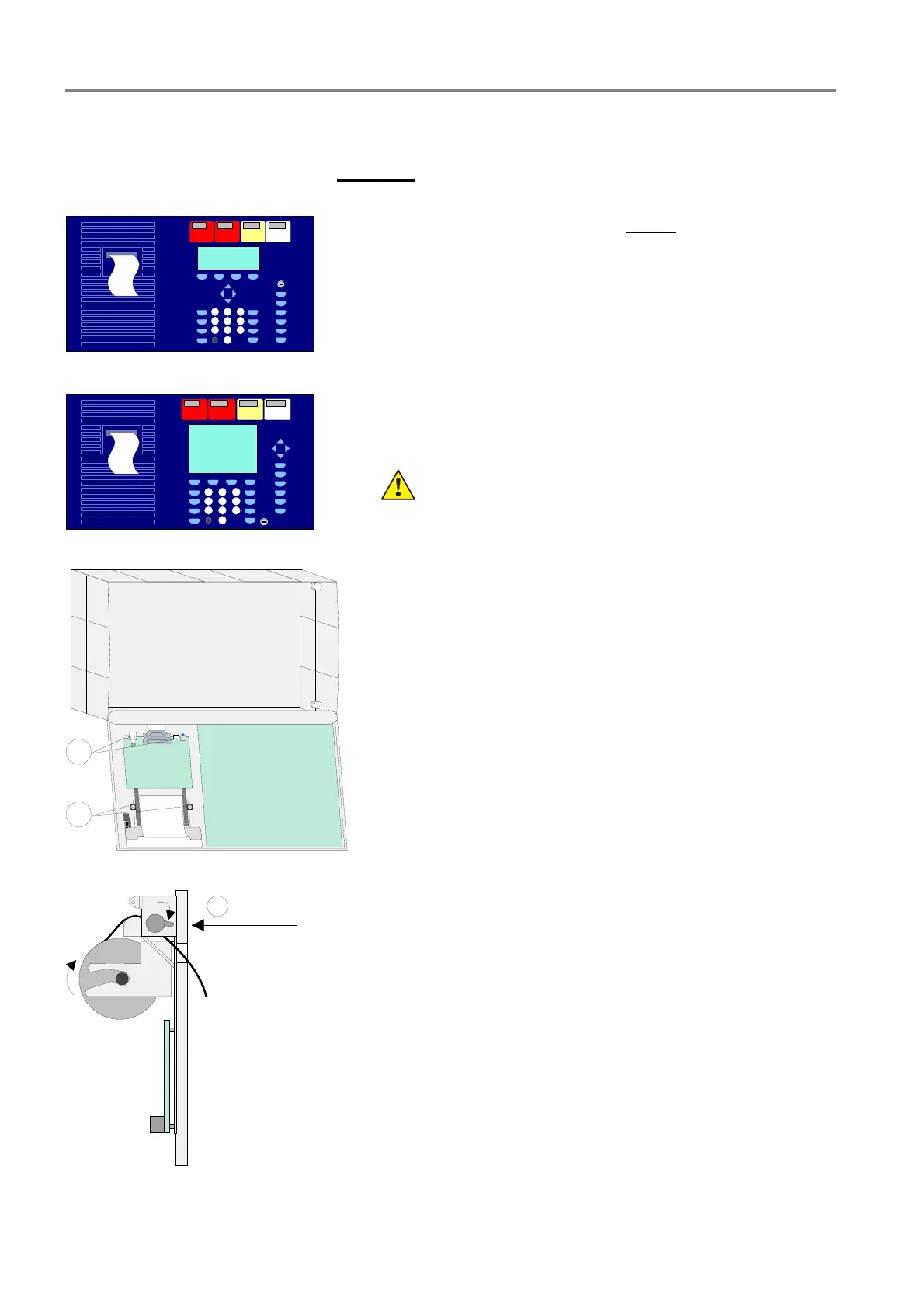

Fig. 111: Panel front (Part No. 7868xx
1
)
1)
Language identification, e.g. 00=German, 01=English etc.
(refer to catalogue Fire Alarm systems)
Fig. 112: Panel front (Part No. 7869xx
1
)
Damage to the system
Remove all power from the panel before carrying out
any installation work (battery and mains supply voltage).
Mounting / Replacing
1
2
1. Remove all power from the panel before carrying out any
installation work (batteries and mains supply).
2. Open housing and remove all electrical connections to the
mounted control panel.
3. Release mounting brackets and remove the existing
operating panel carefully.
4. Insert operating panel and fasten it with the appropriate
clamps to the frame. Fit printer in the mounting bracket
and fix it with the supplied screws
.
5. Connect printer
(Ribbon cable and
+12 V DC power supply).
6. Release paper clamp
of the internal printer and insert
paper roll.
7. Lead paper for approx. 5 cm through the opening of the
front. Lock paper clamp again.
Fig. 113: Mounting Panel Front
3
Paper clamp, locked
Fig. 114: Insert paper roll
