Fire Alarm Control Panel IQ8Control C/M
FB 798951.GB0 / 01.09 69
5.2 essernet
®
module
The essernet
®
module permits networking up to 31 essernet
®
devices, such as e.g. Fire Alarm Control Panel
System 8000 and IQ8Control, Intruder alarm panel system 5000 and WINMAG supervisor system software.
Additionally optional gateways are available to connect standard devices to the network. Two essernet
®
micro
module are available with a standard and high transmission rate.
essernet
®
WINMAG
Serial
essernet
®
-Interface
Indicating and operating panel
Intruder alarm panel 5008
Fire alarm control panel
IQ8Control M
Fire alarm control panel
IQ8Control M
Fire alarm control panel
IQ8Control C

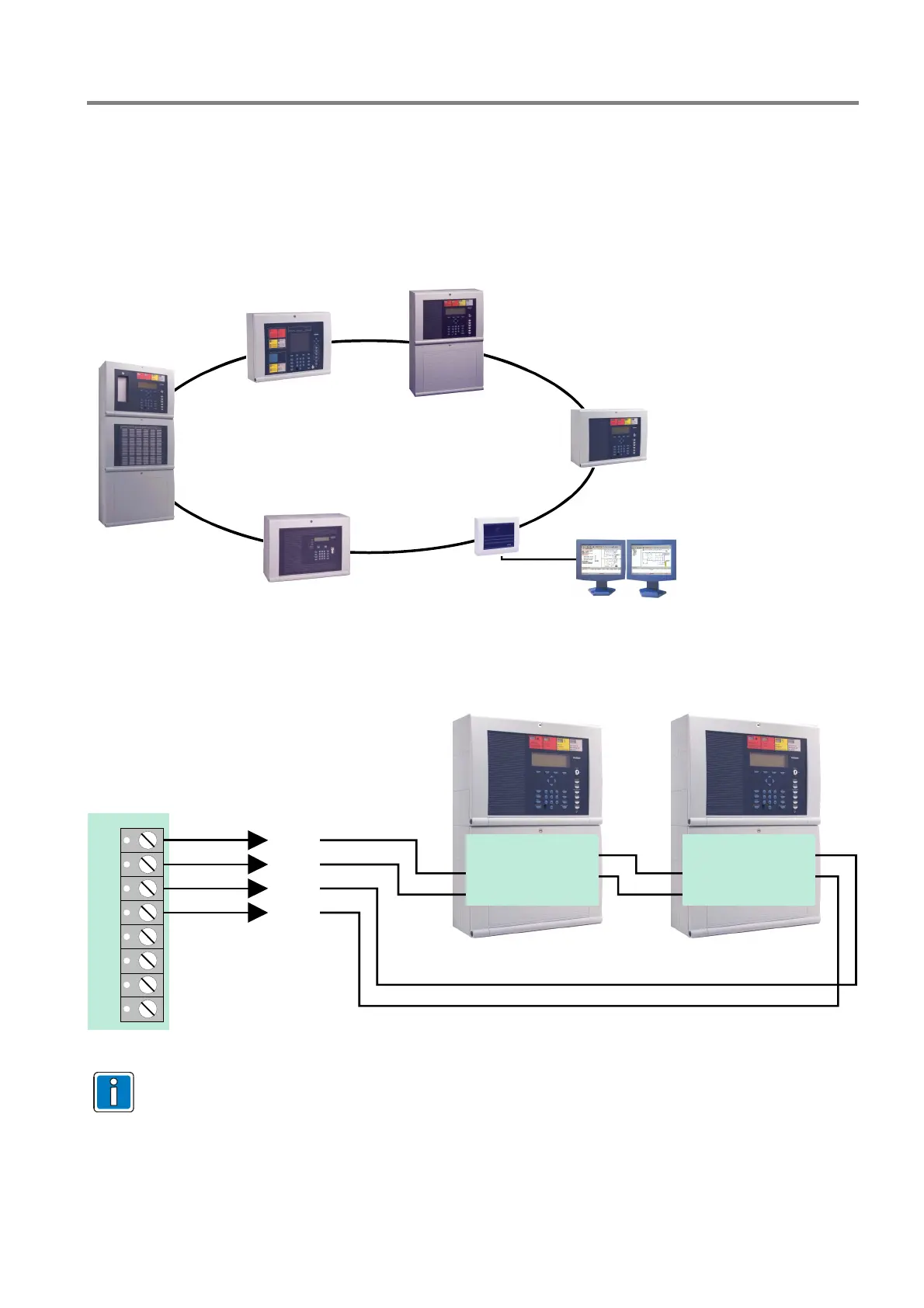

Fig. 59: Example - essernet
®
network with different devices
Terminal card assignment
1
2
3
4
5
6
7
8
L1 +
L1 -
L2 +
L2 -
not used !
L2 +
L2 -
L1 +
L1 -
L2 +
L2 -
L1 +
L1 -
essernet
®
module
essernet
®
module
not used !
not used !
not used !
Fig. 60: Terminal card assignment
In a essernet
®
network you may only use essernet
®
modules with the same transmission speed.
The EMI-protection / the extended EMI-protection of the LAN network must be implemented by
external EMI protection devices.
