4.3.3 Housing contact
X7 X8
8
7
6
5
Housing contact
V2
Housing
open
1
2
3
4
Depending on the panel housing used, up to four cover contacts can
be connected to the connection terminals of the Basic module.
A single contact per housing is integrated by factory settings.
The opened housing contact is indicated by the illuminated LED V2.
5 6 7 8 4 3 2 1
4 3 2 1
5 6 7 8
set
jumper
4 3 2 1
5 6 7 8
set
jumper
4 3 2 1 5 6 7 8
Connection of one housing contact
Connection of two housing contacts
Connection of three housing contacts
Connection of four housing contacts

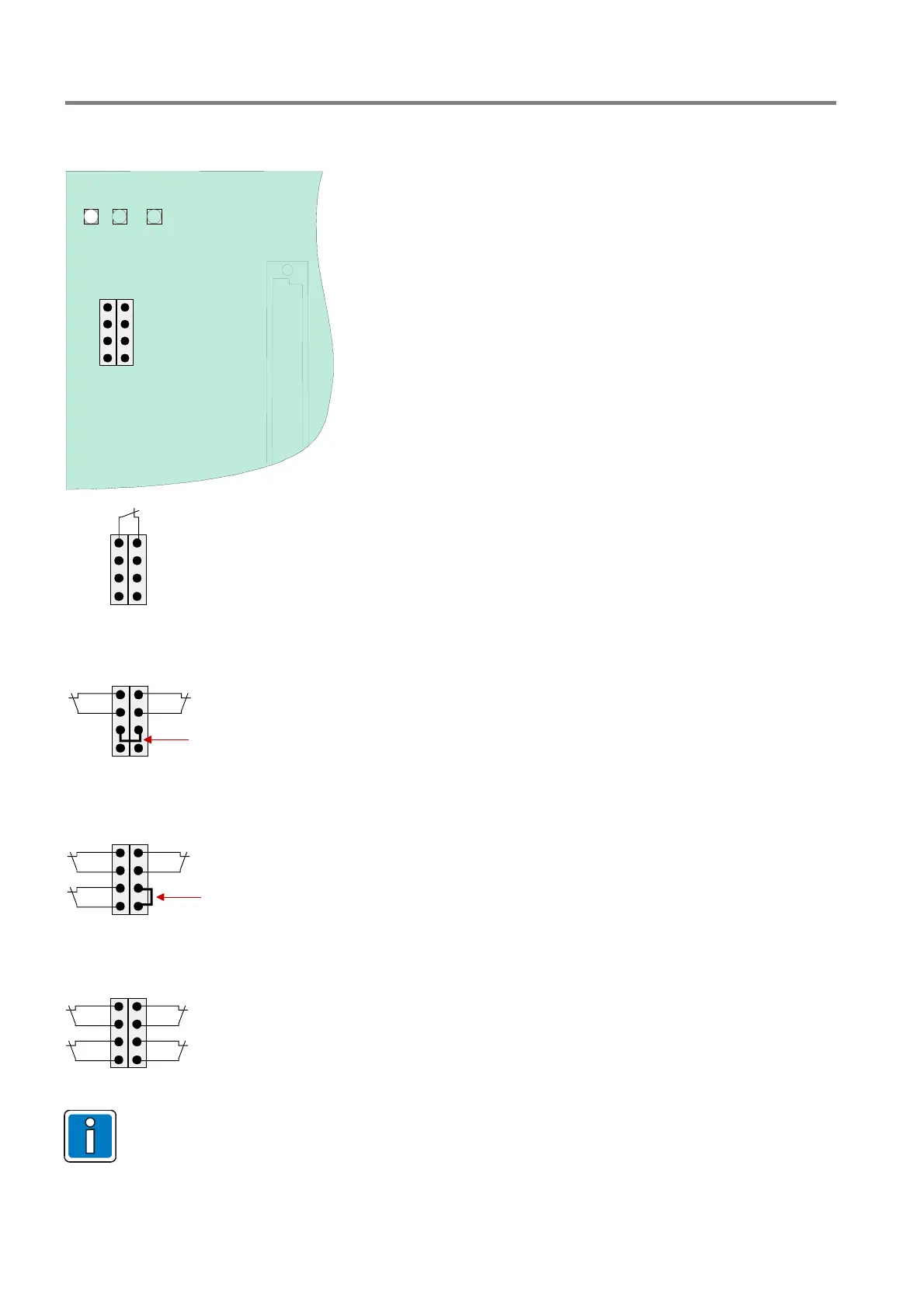

Fig. 34: Housing contact
The cover contact must be opened when the service PC is connected, otherwise connection of the
PC is not recognised by the central unit.
