Fire Alarm Control Panel IQ8Control C/M
20 FB 798951.GB0 / 01.09
3.6 Assembly
The housing is pre-assembled by factory delivery. To ease the further assembling and mounting please observe
the given mounting sequence.
1
5
3
2
4
6
7

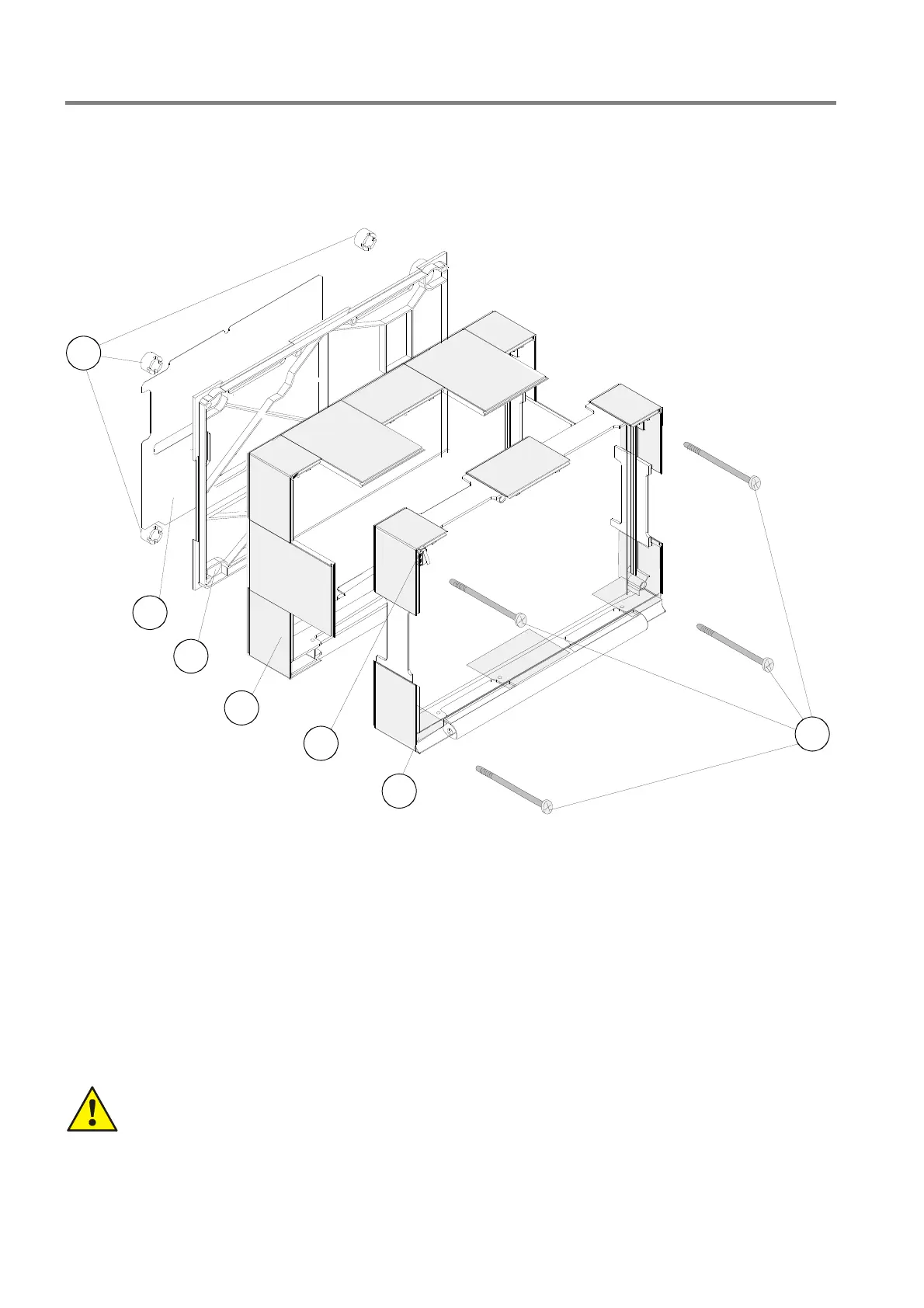

Fig. 14: Exploded illustration
c
4x wall compensation pieces
d
1 x Metal sheet of the base plate for shielding and the PE connection (functional earth)
e
1x rear panel
f
1x back box
g
1x housing contact (up to four contacts possible)
h
1x front frame with operating module and housing door
i
4x connecting screws
The Basic module is connected to the central housing’s rear metal panel via the metal spacers and
the metal screws. Without this electrically conductive connection between the Basic module and the
rear metal panel, sufficient EMC protection for the FACP IQ8Control is not guaranteed.
