12 IQ8Wireless devices
The IQ8Wireless devices provide the wireless connection of fire alarm detectors and alarm devices to the
analog loop of the Fire alarm system IQ8Control or alternatively a stand-alone wireless control unit for fire alarm
panels with conventional detector zone inputs.
3
0
-
3
0
0
m
*
IQ
8
C
ontr
ol
IQ
8
C
ont
r
ol
805595
max. 32
2
0 -
20
0
m*
max. 10
805594
+12V DC

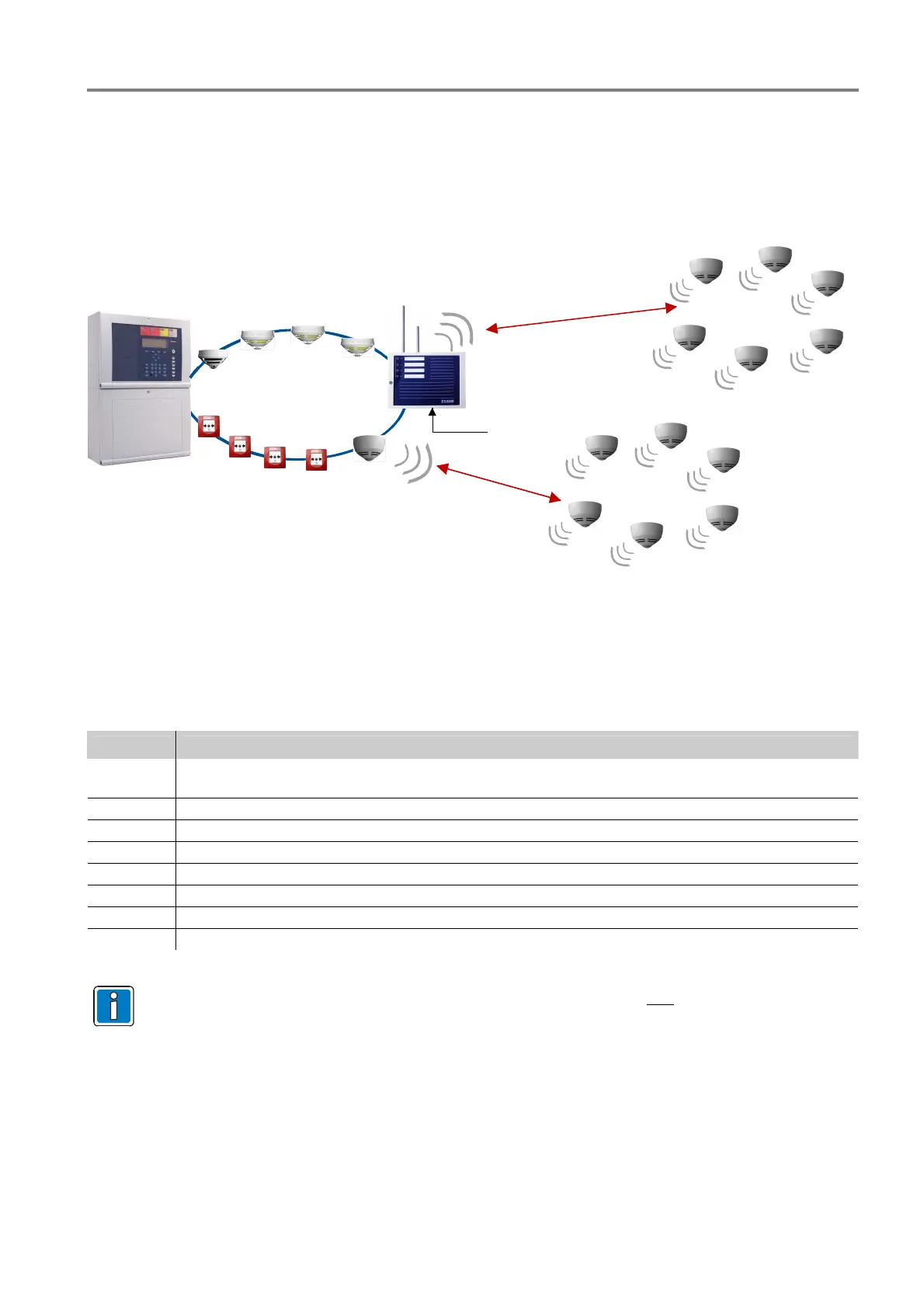

Fig. 102: IQ8Wireless devices (schematic view)
System requirements
Programming software tools 8000 from Version V1.09
To operate the IQ8Wireless transponder as a loop device of the Fire Alarm Control System IQ8Control, the
IQ8Control operating system software Version V3.04 R001 is required.
Accessories
Part No. Description
805593
IQ8Wireless detector base for automatic Fire detectors series IQ8Quad
(without integrated alarm device)
805594 Cover for IQ8Wireless Interface 805601 und 805602 (red + white)
805597 4 Lithium batteries (type AA / 3,6V) for power supply
805601 IQ8Wireless universal Interface (red), without cover
805602 IQ8Wireless universal Interface (white), without cover
805603 IQ8Wireless Mounting frame for Alarm device IQ8Alarm (red + white)
805604 IQ8Wireless Mounting frame for automatic Fire detectors IQ8Quad (white)
IQ8Wireless Gateway automatic Fire detectors IQ8Quad
805605
For the operation of the intelligent Fire alarm detectors series IQ8Quad with
integrated alarm device
use Part No. 805602 and 805604.
For additional information about the IQ8Wireless devices refer to the corresponding technical manual or visit the
Homepage www.esser-systems.de.
