Honeywell IQ8Control C User Manual

Fire Alarm Control Panel IQ8Control C/M
FB 798951.GB0 / 01.09 135
16 Power supply for the built-in printer
The internal power supply of the built-in printer is provided by the basic module terminals of the FACP.
+12 V DC
ext. power supply
+UBext.
BR7
Printer
Printer
GND
F4
+UBext T2A
+UBext.
switched
+12 V UBext.
+UBext.
BR7
Printer
Printer
GND
F4
+UBext T2A
GND
+UBext.
To use an external 12 V DC power supply unit
(e.g. Part-No. 785653) open solder jumper
BR7 !

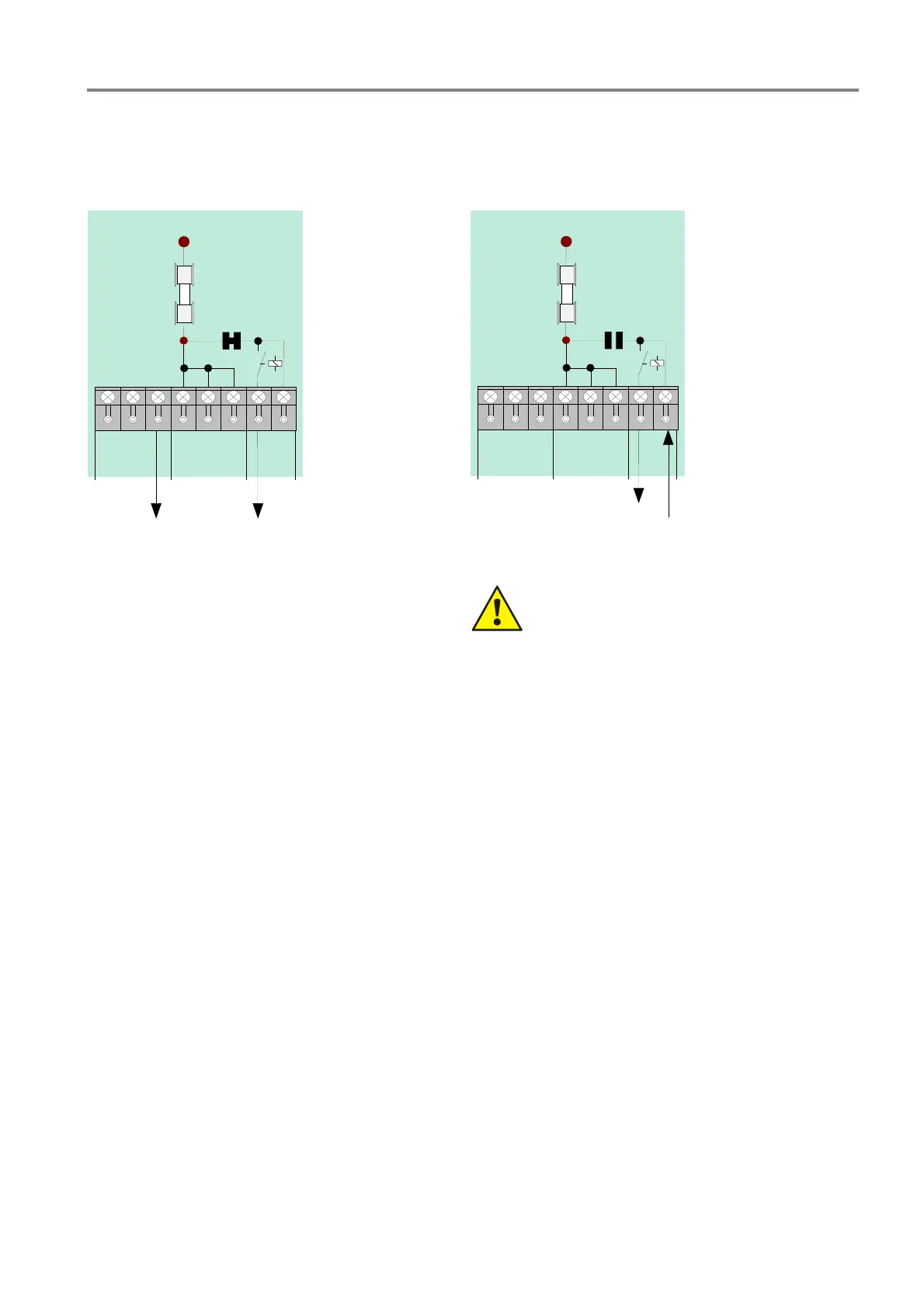

Fig. 109: Internal Power supply for the built-in printer Fig. 110: External Power supply for the built-in printer
Accessories fort he built-in printer
(Part No. 736235)
(Part No. 736233 / -34)
Paper for Printer Dimensions: W = 58mm, L = 25m
Paper for Printer
(Part No. 736217)
(Part No. 736214)
Dimensions: W = 58mm, L = 25m
