Fire Alarm Control Panel IQ8Control C/M
FB 798951.GB0 / 01.09 87
7 Master box activation module
Micro module for activating a master box (MFAB) and alerting the relevant emergency services, such as the fire
department. With the Fire Alarm Control Panel, a connection for a master box module is integrated in the Field
device module. If a Field device module is not fitted, an MFAB control module can be used for the connection of
a master box. Up to 10 MFAB may be operated within a common fire alarm system.
The required operation must be programmed with the service PC and Programming software tools 8000 from
version V1.06R001 software. For the MFAB relay, an individual additional text with 25 characters per line can be
entered for the clear text display and the protocol printer.
X1
S 1
F 1
S 2
K 1
ON
1234
BR1 BR2 BR3 BR4 BR5 BR6
MFAB activation module

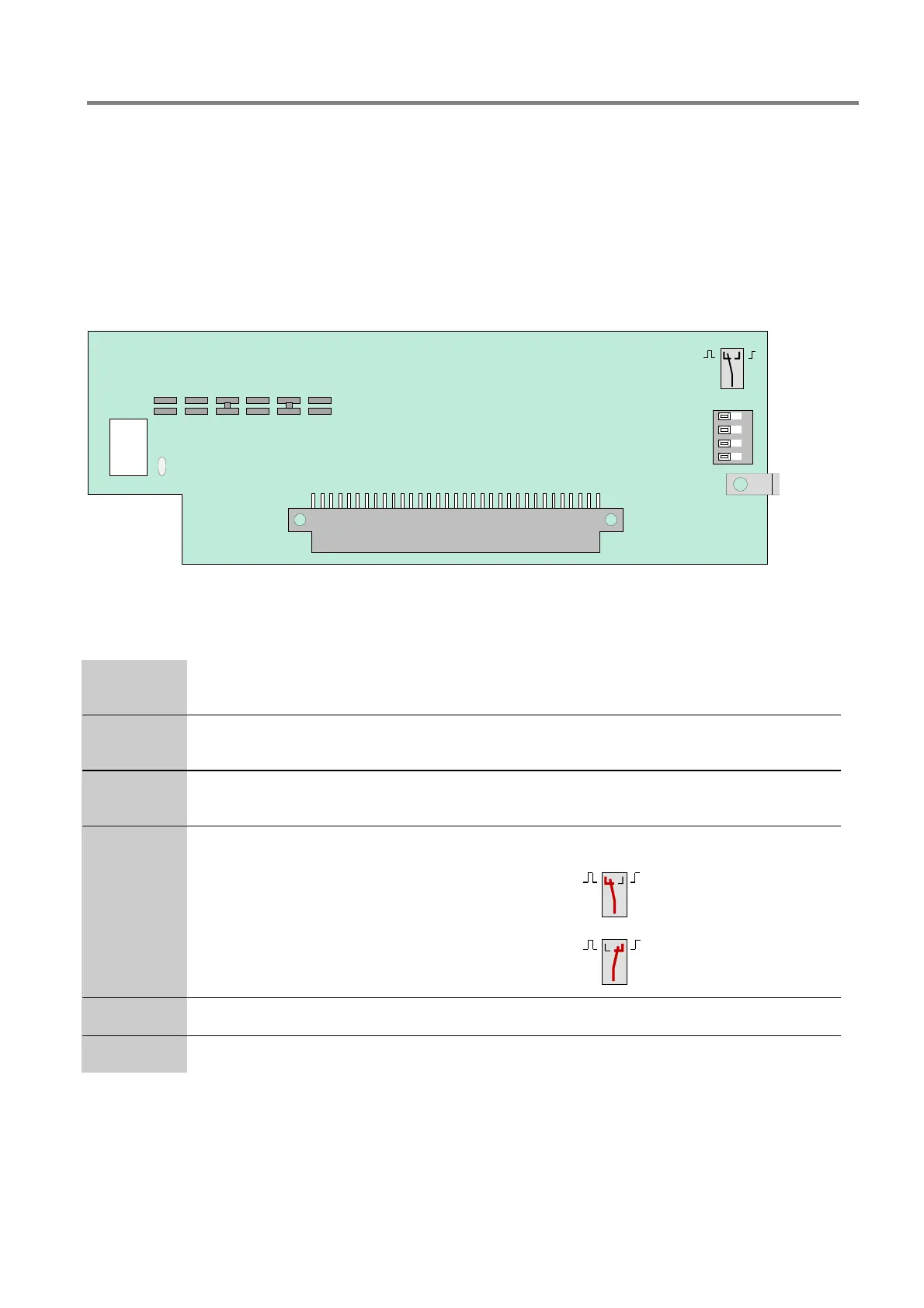

Fig. 77: Master box activation module
X1
64-way plug connector to micro module slot of the Basic module, Field device module or
Extension module
Relay for switching the MFAB supply voltage, e.g., +12 V or +24 V (DC)
max. contact rating max. 30 V DC / 1 A
K1
Electronic fuse (multifuse): to reset, de-energise for approx. 30 seconds at the relevant screw
terminals on the terminal card
F1
Setting the master box activation mode:
S1
Switch set to left
« Activation intermittent
Switch set to right
« Activation continuous
DIL switch to select the activation time of the MFAB (see table next Page)
S2
Hardware adjustment of MFAB activation (see following pages).
BR1, BR3
