Fire Alarm Control Panel IQ8Control C/M
FB 798951.GB0 / 01.09 39
4.3.2 Customer data programming
The Fieldbus- und panel interface (Part No. 789863) or panel interface (Part No. 769828) is required to
configure the panels Customer data.
The software tools 8000 from Version V1.06 provides the configuration of the FACP IQ8Control functions and
customizing the system to all requirements. A detailed guideline to the configuration of the FACP IQ8Control is
given in the Online-Help file in tools 8000.
4.3.2.1 Fieldbus- und panel interface (Part No. 789862.10), USB
Therewith the interface may be detected from the Service-PC it is required to install the appropriate USB driver
>usbefi.inf< (MS-Windows 98, 2000, XP). Connect Service-PC and the interface with the USB-cable. Switch ON
the Service-PC
Î the USB connection will be detected automatically and corresponding USB driver requested.
The driver >usbcf.inf< is delivered on the CD-ROM tools 8000 from version V1.06.
USB

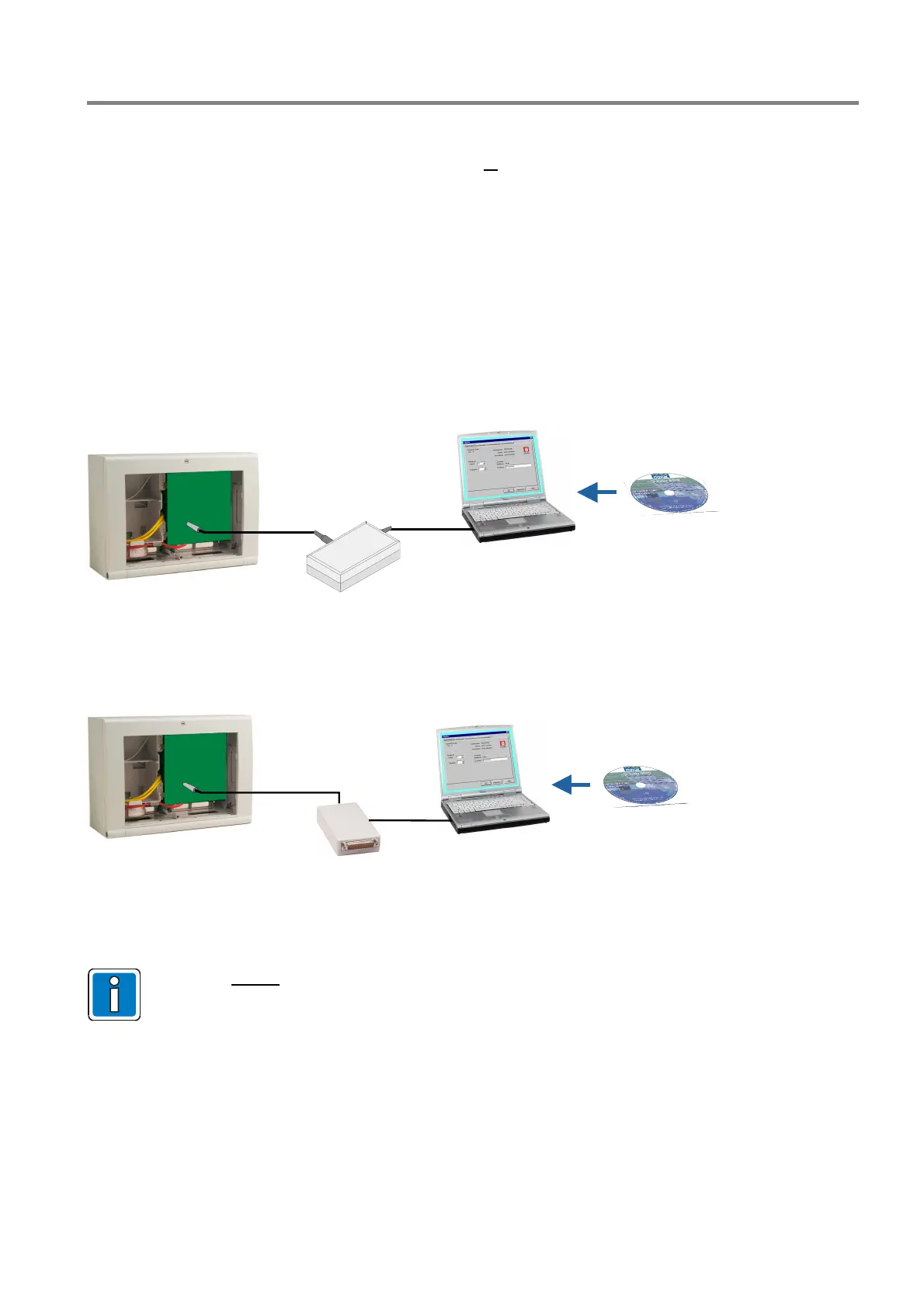

Fig. 32: Fieldbus- und panel interface (Part No. 789862.10), USB
4.3.2.2 Panel interface (Part No. 769828), serial
serial
Fig. 33: Panel interface (Part No. 769828), serial
For safety, always
save your data on the hard disk of the service PC.
The saved customer data can then be transferred quickly and easily from the service PC to the
FACP IQ8Control.
