Fire Alarm Control Panel IQ8Control C/M
FB 798951.GB0 / 01.09 81
6.2 4- Relay module
This micro module accommodates four freely programmable, non-monitorable, potential-free relays for
activating external devices and system components.
Relay assignment is programmed with the service PC and programming software tools 8000 from version
V1.06R001 software. For each relay, you may enter a specific additional text comprising 25 characters per line
for output on the alphanumeric display and protocol printer.
X1
K 3 K 2 K 1
S 2
K 4
S 4 S 3
F 4
S 1
F 1F 2F 3
Example of switch position
NO contact NC contact
4-relay module
n.o.
n.c.

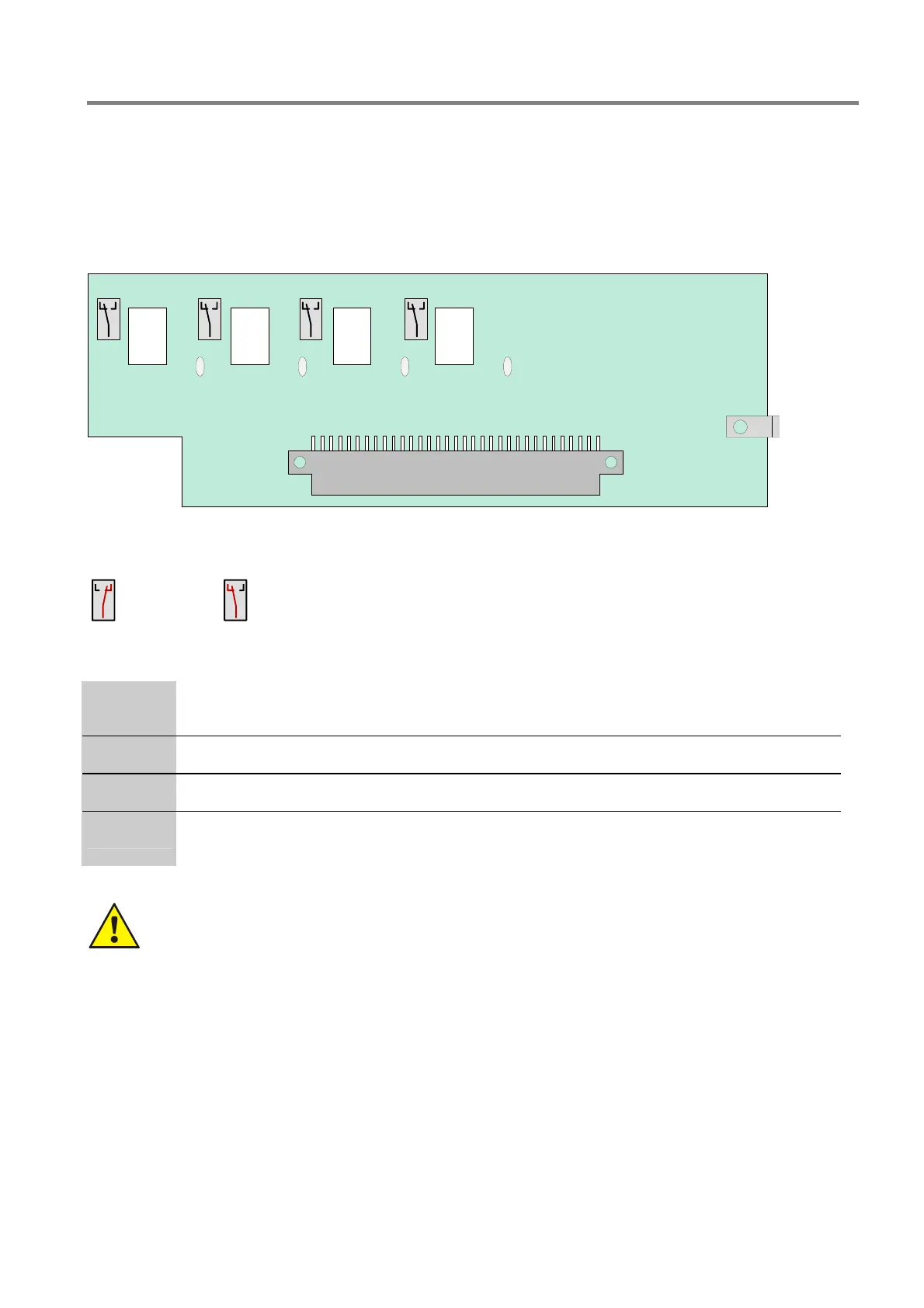

Fig. 70: 4- Relay module
64-way plug connector to micro module slot of the Basic module, Field device module or
Extension module
X 1
freely programmable, potential-free relay contacts (max. contact rating 30V DC/ 1A).
K1 to K4
Switch for setting the NC or NO contact function for each relay.
S1 to S4
Electronic fuse (multifuse): to reset, de-energise for approx. 30 seconds at the relevant screw
terminals on the terminal card.
F1 to F4
No AC voltages may be applied to the relays built-into the Fire Alarm Control Panel. This applies
also to those relays operated in the >non-monitored< mode.
