Honeywell IQ8Control C User Manual

Fire Alarm Control Panel IQ8Control C/M
FB 798951.GB0 / 01.09
13
Example: Configuration of FACP IQ8Control M
Example 1:
Basic module with a Field device module
(without micro module slot) on slot 1 and one
Extension module (with 3 micro module slots)
on slot 2.
Application:
With this configuration, e.g. a single control
panel with 4 analog loops and max. 508 bus
devices can be implemented.
A
Field device module (Part No.772479)
Connector 2
MM 1
A
D
MM 2
MM 3
MM 4
Connector 1
D
Extension module with three additional micro
module slots (Part No.772476)
Example 2:
Basic module with a Field device module
(without micro module slot) on slot 1 and one
Extension module (with 3 micro module slots)
on slot 2.
Application:
With this configuration, e.g. a single control
panel with 5 analog loops and max. 635 bus
devices can be implemented
B
Field device module with 1 additional micro
module slot (Part No.772477)
MM 1
MM 2
B
D
MM 3
MM 4
MM 5
Connector 2 Connector 1
D
Extension module with three additional micro
module slots (Part No.772476)

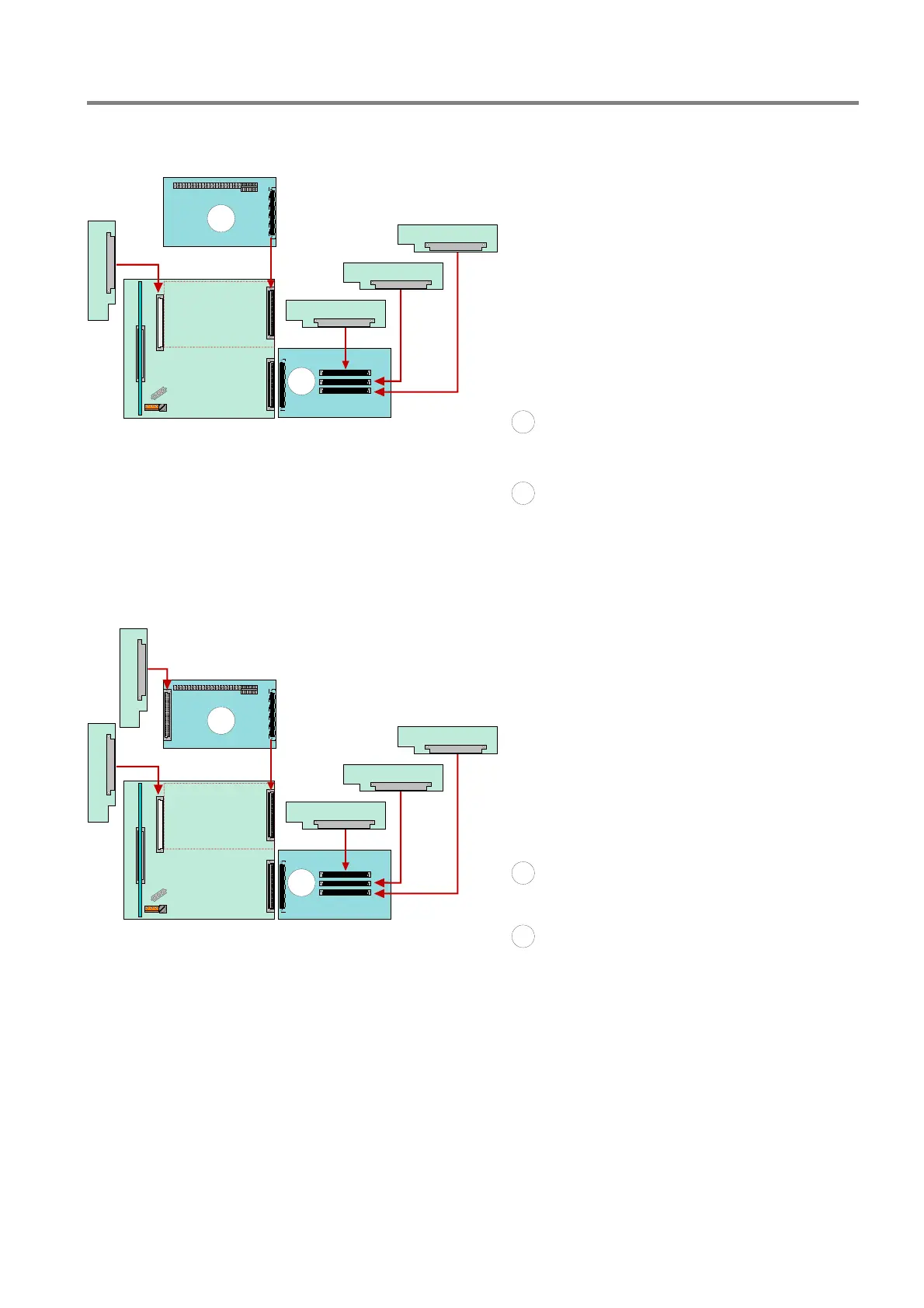

Fig. 7: Configuration FACP IQ8Control M
