ADJUST SIDE IMAGING DISPLAY SETTINGS
T
he X-Press Menu provides menu options to adjust the sensitivity, contrast, sharpness, and range as you fish. You can also mark a
p
articular range, and you can control how fast the sonar history scrolls across the screen. The menu options allow you to see more
o
r less of the sonar returns from the transducer beams as you adjust each setting.
Adjust Display Settings
1. With a Side Imaging View displayed on-screen, tap Sonar (SI) in the status bar, or press the MENU key once.
2. Select Sensitivity, Contrast, Chart Speed, or Sharpness.
3. Press and hold the slider, or turn the Rotary dial, to adjust the setting.
Sensitivity
Sensitivity controls how much detail is shown on the display and will adjust the sensitivity of
all sonar frequencies. Decrease the sensitivity to eliminate the clutter from the display that
is sometimes present in murky or muddy water. When operating in very clear water or greater
depths, increase the sensitivity to see weaker returns that may be of interest.
Contrast
Adjust the Contrast setting to accent the light and dark parts of the Side Imaging data to
provide greater definition.
Chart Speed
Chart Speed determines how fast the sonar history moves down the display and how much
detail is shown. Select a faster speed to see more detail. Select a slower speed to keep the
sonar history on the display longer.
Sharpness Turn on Sharpness and select a filter level to sharpen the edges of the Side Imaging data.

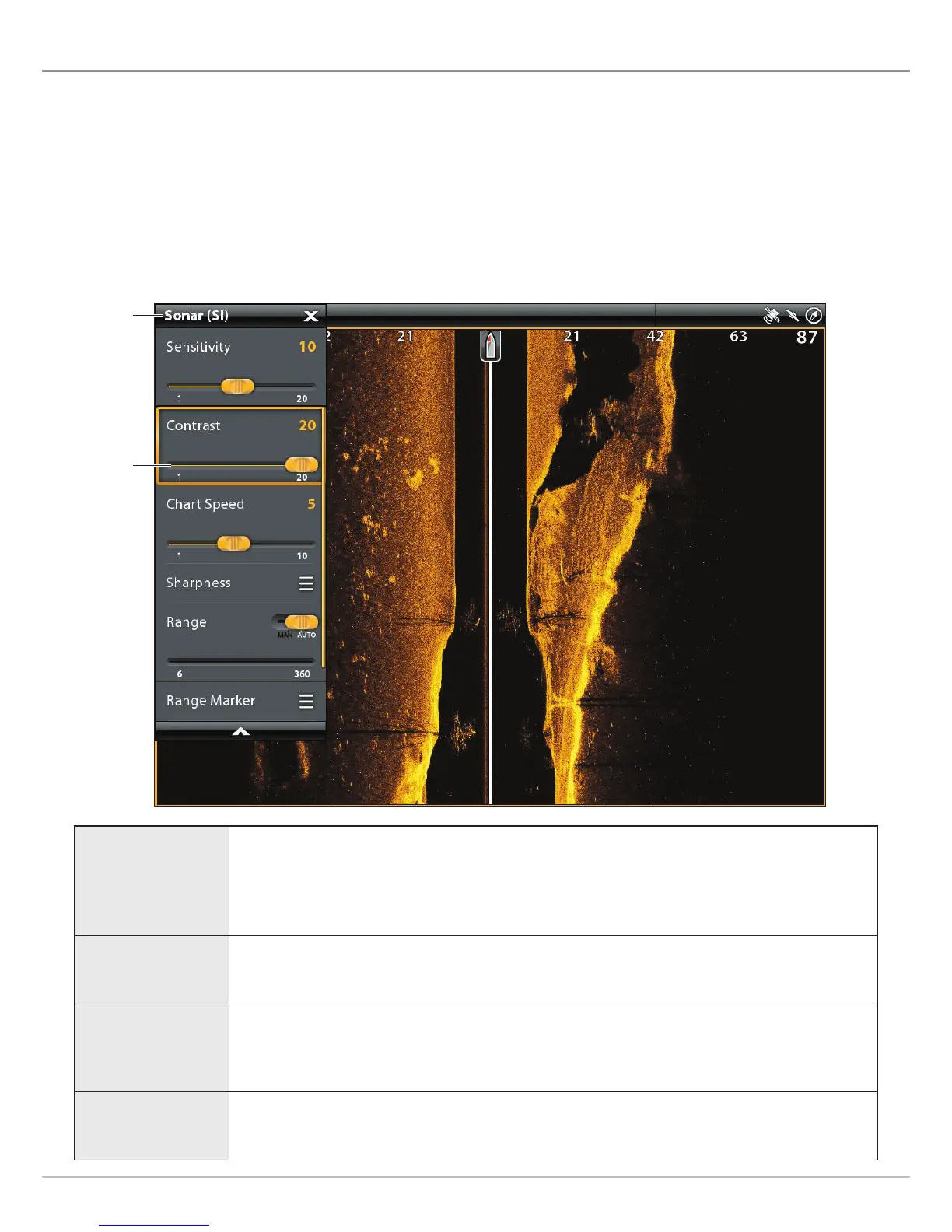

Adjusting Side Imaging Display Settings
Side Imaging
X-Press Menu
contrast set
high, accenting
the light and
dark parts of the
sonar history
To Next Page
