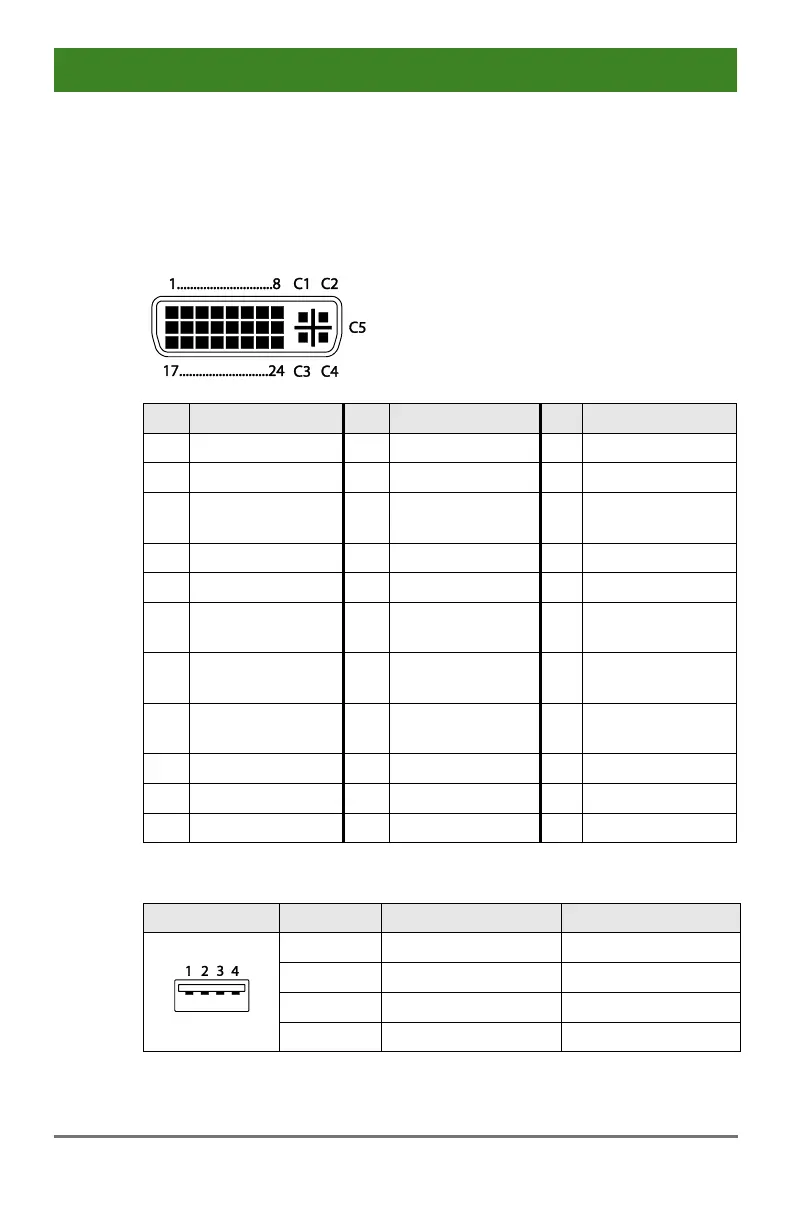

7.3 Connector Pinouts
Pos: 158 /806-IHS E/Technisch e Daten/Pinbeleg ungen/UEB_C PU-Karte @ 7\mod_1309 942897790_6.doc @ 53820 @ 3 @ 1
7.3.1 CPU Board
Pos: 159 /806-IHS E/Technisch e Daten/Pinbeleg ungen/Buchse DVI-D Sing le-Link @ 5\mod _1278578723 073_6.doc @ 42333 @ @ 1
Connector DVI-D Single-Link
Pin
Signal
Pin
Signal
Pin
Signal
1
T.M.D.S data 2 –
9
T.M.D.S data 1 –
17
T.M.D.S data 0 –
2
T.M.D.S data 2 +
10
T.M.D.S data 1 +
18
T.M.D.S data 0 +
3
T.M.D.S data 2
GND
11
T.M.D.S data 1
GND
19
T.M.D.S data 0
GND
4
n.c.
12
n.c.
20
n.c.
5
n.c.
13
n.c.
21
n.c.
6
DDC Input (SCL)
14
+5VDC high
impedance
22
T.M.D.S clock
GND
7
DDC Output
(SDA)
15
GND
23
T.M.D.S clock +
8
Internal use
16
Hot Plug
recognition
24
T.M.D.S clock –
C1
Internal use
C3
Internal use
C2
n.c.
C5
GND
C4
Internal use
Pos: 160 /806-IHS E/Technisch e Daten/Pinbeleg ungen/Buchse USB Typ A @ 5\mod_1278 578771214_6.d oc @ 42369 @ @ 1
Connector USB Type A
Pin
Signal
Color
1
VCC (+5VDC)
Red
2
Data –
White
3
Data +
Green
4
GND
Black
