Ihse Draco tera 480 Series User Manual

Specifications
2020-02-26 241

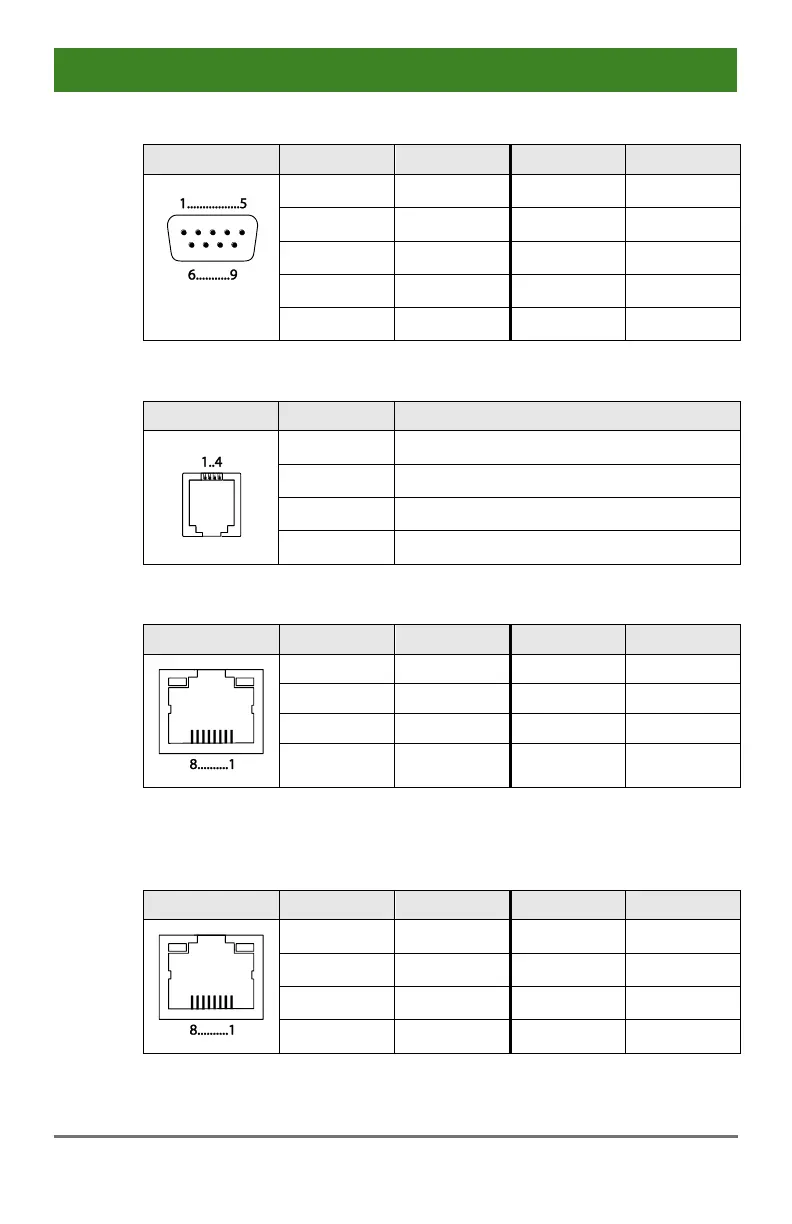

D-Sub 9 (Serial) RS232, DCE
Pin
Signal
Pin
Signal
1
n.c.
6
DSR
2
RxD
7
RTS
3
TxD
8
CTS
4
DTR
9
n.c.
5
GND
Pos: 162 /806-IHS E/Technisch e Daten/Pinbeleg ungen/480-xx /RJ10 @ 2 5\mod_158099398 0416_6.doc @ 271830 @ @ 4
RJ 10 (Serial), DCE
Pin
Signal
1
TxD
2
RxD
3
n.c.
4
GND
Pos: 163 /806-IHS E/Technisch e Daten/Pinbeleg ungen/480-xx /RJ45 @ 7\m od_1309943226 649_6.doc @ 5 3857 @ @ 1
RJ45
Pin
Signal
Pin
Signal
1
D1+
5
n.c
2
D1–
6
D2–
3
D2+
7
n.c
4
n.c
8
n.c
Pos: 164 /806-IHS E/Technisch e Daten/Pinbeleg ungen/UEB_E/ A-Port Cat X @ 7\mod_13 09943361243 _6.doc @ 53876 @ 3 @ 1
7.3.2 I/O Port Cat X
Pos: 165 /806-IHS E/Technisch e Daten/Pinbeleg ungen/RJ45 @ 5\mod_12 78578820011_6 .doc @ 42405 @ @ 1
RJ45 (interconnect)
Pin
Signal
Pin
Signal
1
D1+
5
D3–
2
D1–
6
D2–
3
D2+
7
D4+
4
D3+
8
D4–
Pos: 166 /806-IHS E/Technisch e Daten/Pinbeleg ungen/UEB_E/ A-Port SFP @ 7\mod_130 9943436008_ 6.doc @ 53894 @ 3 @ 1
