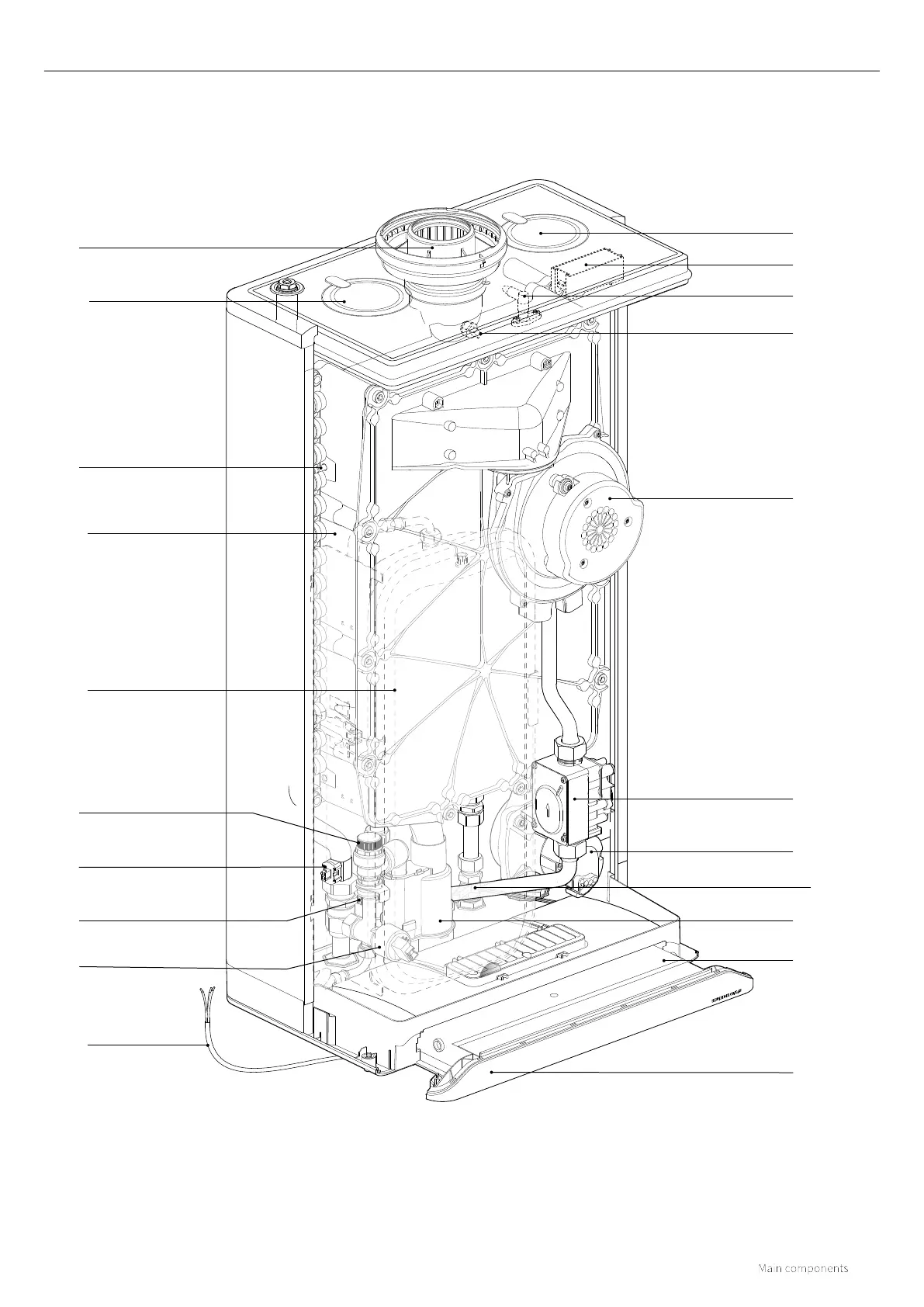

4 MAIN COMPONENTS
Flue appliance adapter
Air supply duct
(for 80mm twin flue only)
Ignition electrode
Ignition module
vNTC Flue gas sensor (S5)
Fan assembly
24V DC Gas valve
Heating Modulating Pump
Flow turbine sensor
Condense syphon
Printed circuit board and
housing
Touch screen fascia panel
Heat exchanger
Expansion vessel
shown as silhouette
NTC Domestic hot
water sensor (S3)
3bar Pressure relief valve
NTC Central heating
flow sensor (S1)
Central heating
low pressure sensor
Mains lead 230 V
AC (bare)
NTC Heat exchanger
sensor (S0)
Air supply duct
(for 80mm twin flue only)
