Intergas Xclusive 24 User Manual

39
COMMENT
► PP Pipes for the connection of the air
supply duct and the flue from the boiler
to the wall terminal 076355 must have a
diameter of Ø80 mm.
► The individual flue pipe (Ø80) and/ or
the internal pipe of the combi-pipe
wall terminal / extension pipe must be
approved by Intergas heating ltd.

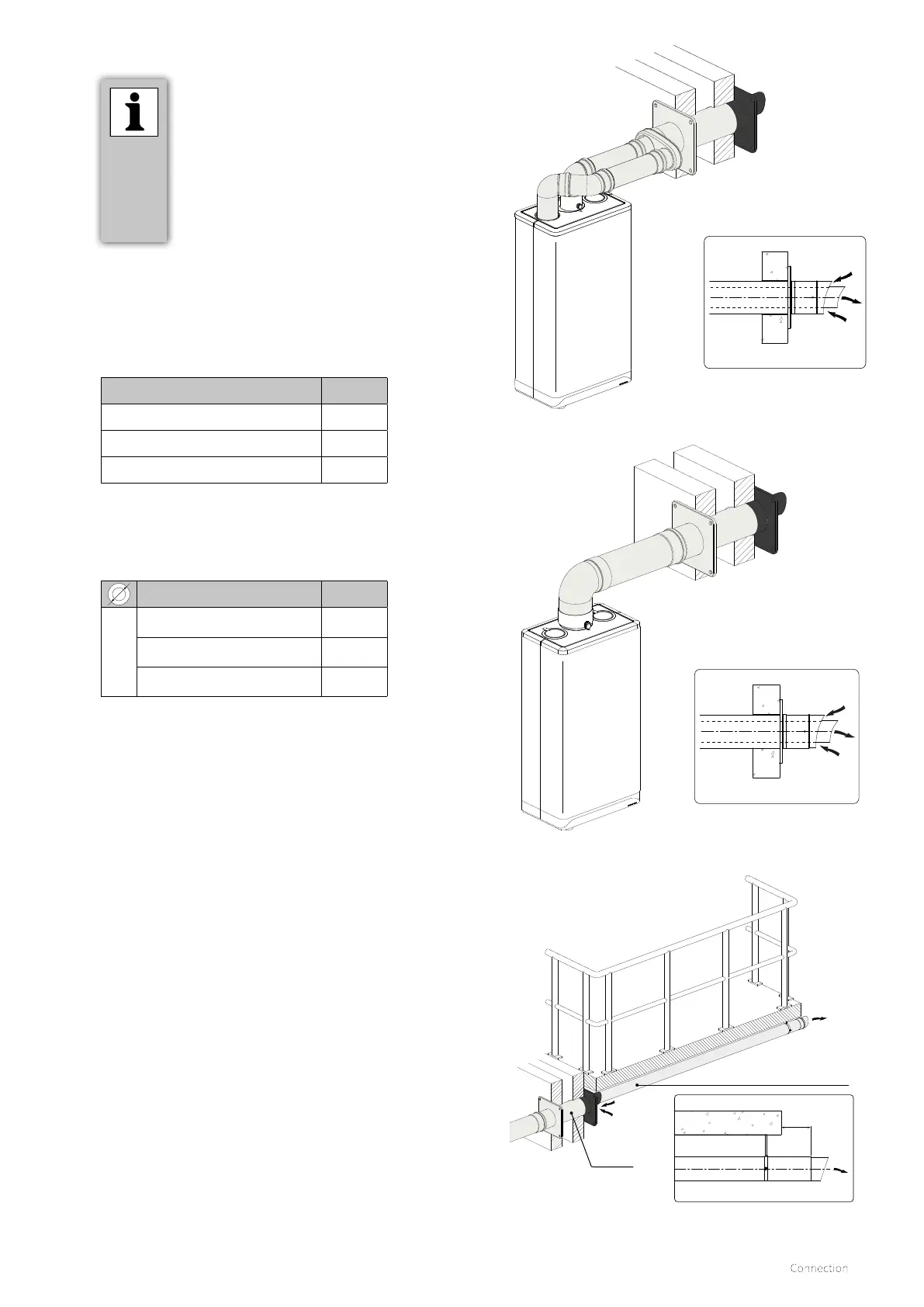

Allowed pipeline length
► Twin-pipe
Air supply duct and flue pipe together, excluding the length of
the combi-pipe wall terminal.
Boiler Length
Intergas Xclusive 24 100 m
Intergas Xclusive 30 85 m
Intergas Xclusive 36 80 m
► Concentric
Air supply duct and combustible gas exhaust pipe
together, excluding the length of the combi-pipe wall
terminal.
7.8.1 Horizontal wall terminal 60/100mm C13
Boiler C13
Ø60/100
Intergas Xclusive 24 10 m
Intergas Xclusive 30 10 m
Intergas Xclusive 36 10 m
100mm
Assembly of combi-pipe horizontal terminal
► Create an opening of Ø130 mm at the location of the
terminal.
► Shorten the wall terminal to the required length.
► Assemble the concentric flue system.
► Slide the wall terminal in through the opening and attach to
the concentric flue.
► Seal the flue through the wall with sand & cement and fit
the supplied decorative covers to the opening both inside
& out.
► The terminal should be positioned level however any
further extensions must slope back to the boiler 5mm/mtr.
art. no. 086890
art. no. 082969
