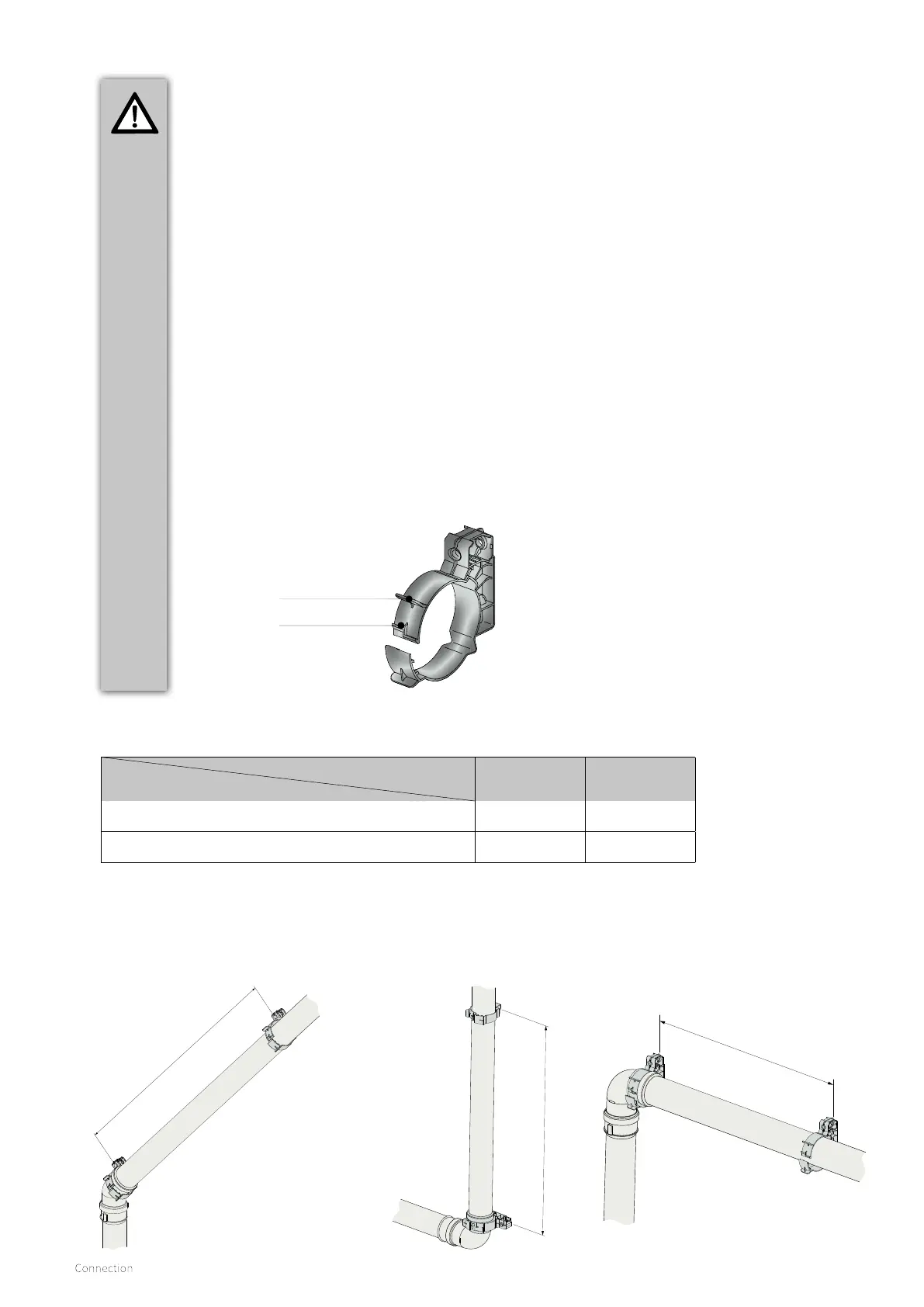

7.8.4 Clamping the flue system (twin and concentric)
Maximum distance between brackets
IMPORTANT
► These regulations are typical for both
concentric and twin flue systems.
► The flue system must be secured to a solid
structure.
► The flue system should have a continuous
fall back to the boiler (1.5° to 3°).
► Only use Intergas approved brackets.
► Every bend or change of direction must
be secured by using the approved bracket
(excluding the appliance bend).
If the length of the pipes before and aer
the first elbow, are no more than 250mm,
a support bracket must be used and
positioned on the elbow! (See illustration D)
► Every extension must be secured per metre
with a bracket.
This bracket must be clamped around the
pipe ensuring free movement for expansion
and contraction purposes.
► Make sure bracket is locked correctly
depending on its location i.e.
position "A" = pipe location
position "B" = elbow location.
A = bracket on pipe
B = bracket on elbow
max. 1000 mm
max. 2000 mm
max. 1000 mm
Orientation
Flue system
Horizontal/
non-vertical
Vertical
Safe-PP 1000 mm 2000 mm
Concentric 1000 mm 2000 mm
► Distribute the length between brackets evenly.
► Each flue system has to contain at least 1 bracket.
► The distance between the boiler and the first bracket must not be more than 500 mm.
A B C
