7.8.2 Flue terminal positions 60/100mm C13
Concentric Flue 60/100
The boiler utilises a special concentric flue adapter which can only be used with the
elbow that is part of the horizontal flue kits.
The flue is not supplied with the boiler and should be purchased separately from your
supplier. This flue may be routed to the rear, le or right of the appliance by means of the
900 degree bend, which is supplied in the flue kit.
Note
Only use a pproved Intergas flue products with this boiler, which can be sourced from
your boiler or Intergas stockist, with C33 type applications a vertical flue adapter will be
required to connect to the boiler.

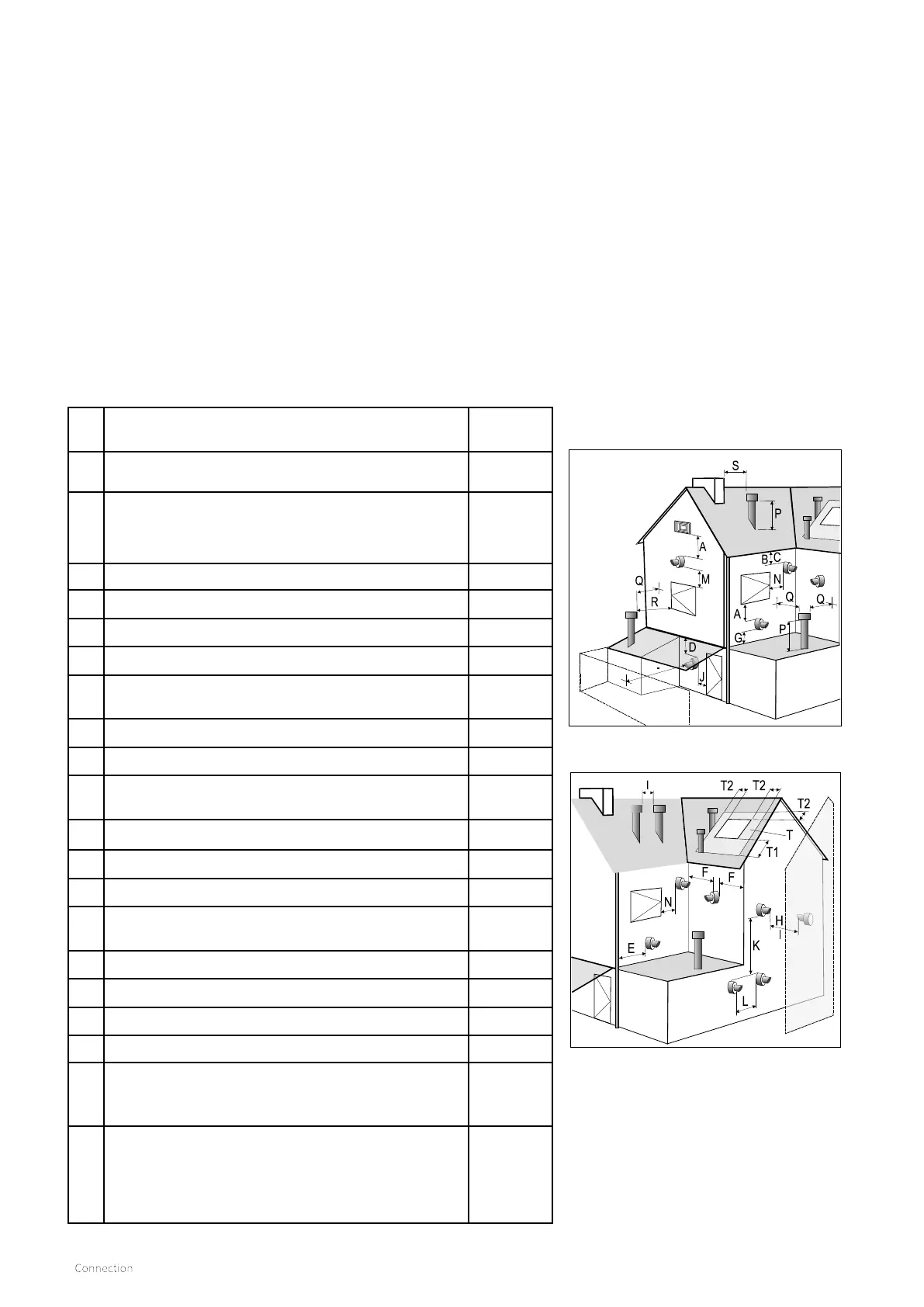

Flue Terminal position
Terminal Position
Min.
distance
A
Directly below an open able window or other opening
e.g. air brick
300mm
B
Below gutters, soil pipes or drain pipes can be reduced
to 25mm, as long as the flue terminal is ectended to clear
any overhang. External flue joints must be sealed with
suitable slicon seal.
25mm
C
Below eaves 200mm
D
Below balconies or car front roofs
200mm
E
From vertical drain pipes and soil pip
25mm
F
From internal or external corners
300mm
G
Above ground, roof or balcony level, Terminal guards
must be fitted if less than 2 metres from the ground.
300mm
H
From a surface facing a terminal
600mm
I
From a terminal discharging towards another terminal
1200mm
J
From an opening in a carport (e.g. door, window) into a
dwelling
1200mm
K
Vertically from a terminal on the same wall
1500mm
L
Horizontally from a terminal on the same wall 300mm
M
Above an opening, air brick, opening windows, etc.
300mm
N
Horizontally to an opening, air brick, opening windows,
etc.
300mm
P
Above roof level (to base of terminal)
300mm
Q
From adjacent wall to flue
300mm
R
From an adjacent opening window
1000mm
S
From another roof terminal 600mm
-
Distance to a boundery, unless it will cause a nuisance.
BS 5440:Part1 recommends that care should be taken in
sitting terminal in relation to boundary lines. A PMK or
Deflector may be fitted.
600mm
T
T1
T2
Terminals adjacent to windows or openings on pitched
and flat roofs:
The flue should not penetrate this area.
2000mm
600mm
Note
Intergas cannot be held responsible for
atmospheric conditions when siting flue
terminals it is the installers responsibility to
ensure products of combustion cannot enter
the building under adverse or normal weather
conditions.
