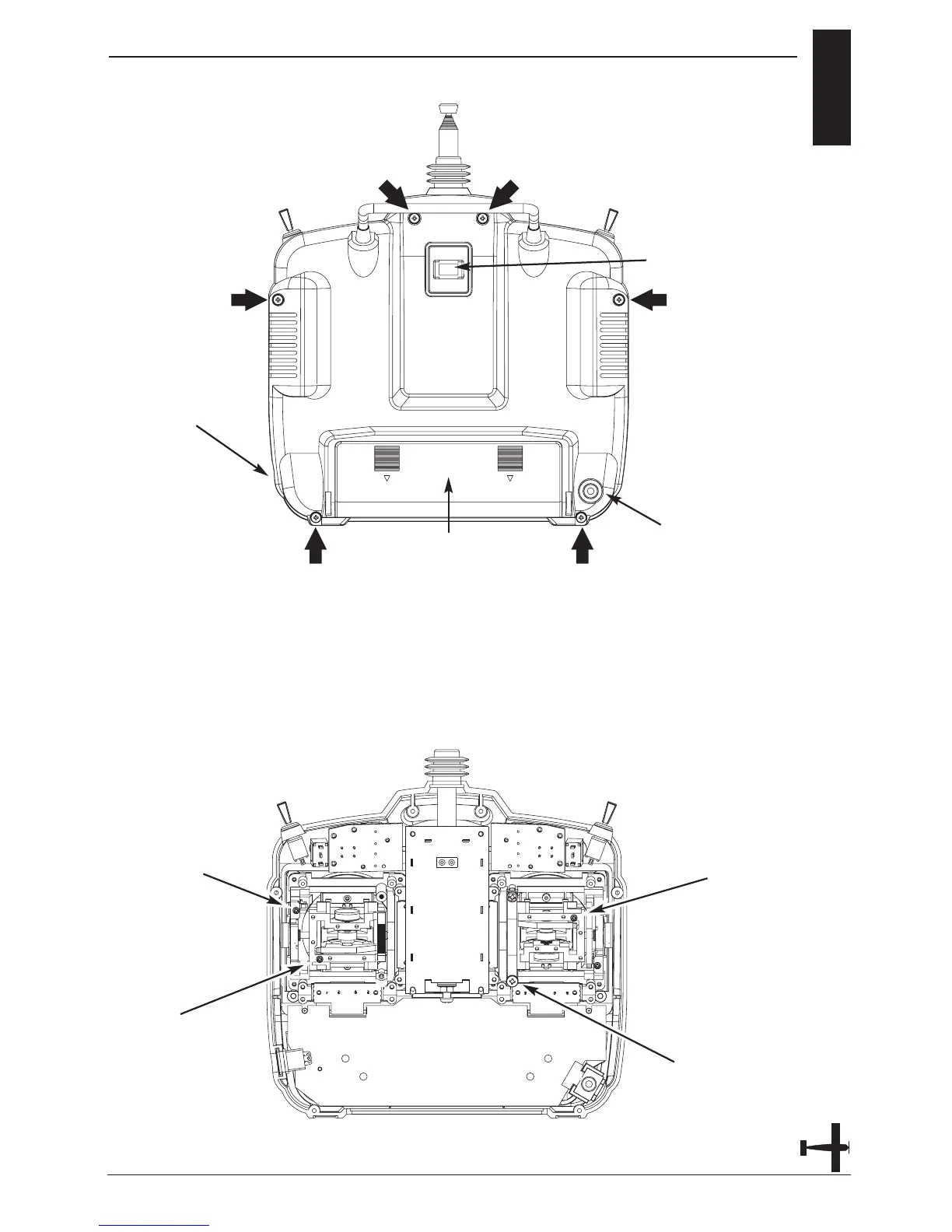

TRANSMITTER REAR
x
11XP6102 - Airplane Manual
TRANSMITTER CRYSTAL
DSC/TRAINER JACK
CHARGING JACK
FOR NI-CD BATTERY
ONLY (8N-600)
BATTERY COVER
CAUTION: THE BATTERY CONNECTOR
IS KEYED SO THAT IT CAN ONLY BE PLUGGED
IN ONE DIRECTION. DO NOT FORCE.
Transmitter Crystal Replacement Notice
The Federal Communications Commission (FFC) requires that
changes in transmitter frequency must be performed only by
an authorized service technician (Horizon Service Center). Any
transmitter frequency change made by non-certified
technician may result in a violation of the FCC rules.
RUDDER TENSION
SCREW
THROTTLE TENSION
SCREW
ELEVATOR TENSION
SCREW
AILERON TENSION
SCREW
