27XP6102 - Airplane Manual
Elevon Type Selection
Elevon Wing Mixing is available as on
option with your XP6102. This style of
aircraft also employs two wing servos.
However, there is not an elevator present.
Instead, at an elevator stick input, the two
wing servos function in conjunction with
one another to change the pitch
movement of the aircraft. Also, when an
aileron control is given, the two wing
servos move in opposition to one another
to function as ailerons.
Accessing and Utilizing the Elevon Type Selection
1. While the Down and Select keys are
pressed, move the power switch to the
On position to access the System mode.
2. Press either the Up or Down key until
WING TYPE appears on the LCD.
3. Press the Select key to select the Elevon
function.
4. Press either the (+) or (-) key to change
the Elevon Wing Type function.
Note: The Elevon function requires one
servo for each elevon, i.e. a separate
servo for each wing half.
5. Plug the left elevon servo to the aileron
(AILE) of your JR receiver. Connect the
right elevon servo into the elevator
(ELEV) port of your receiver.
6.Check to make sure the servos move in
the proper direction. When an input is
given from the elevator stick, they
should move in unison to achieve the
proper up/down elevator command. If
your servos do not move as described
above, use the Servo Reversing function
to reverse the travel direction.
Note: Each servo's direction is adjusted
individually through the Servo
Reversing function. For more
information, refer to the Servo
Reversing section in this manual.
7. Once the servos direction has been
set, adjust their travel direction, travel
volume, dual rates, sub-trim and
aileron differential.
Note: The applicable channel's left or
right, up or down travel adjustments
can be made individually. Refer to
the Travel Adjust section in this
manual for more information.
8. Relative to the note above, each servo's
travel volume is automatically reduced
to 75% of the operating range. This is to
ensure that the servo does not operate
beyond its capabilities. Failure to
observe extreme caution when adjusting
the value for the elevon servos may
result in damage to the servos by over
traveling.
Note: Fine adjustments of the elevons
should be made in the Dual-Rate
function. For more information, refer
to the Dual-Rate section in this
manual. You can also adjust the
neutral point of your elevon servos
individually using the Sub-Trim
function as described in the Sub-Trim
section of this manual. Differential is
offered for the elevon function of
your XP6102. For more information,
refer to the Differential Aileron
Mixing section of this manual.
9. Press the Down key to access the
SWITCH SEL function.
10. Press the Up key to access the
MODEL SEL function.
11. To exit the WING TYPE function, press
the Down and Select keys
simultaneously.

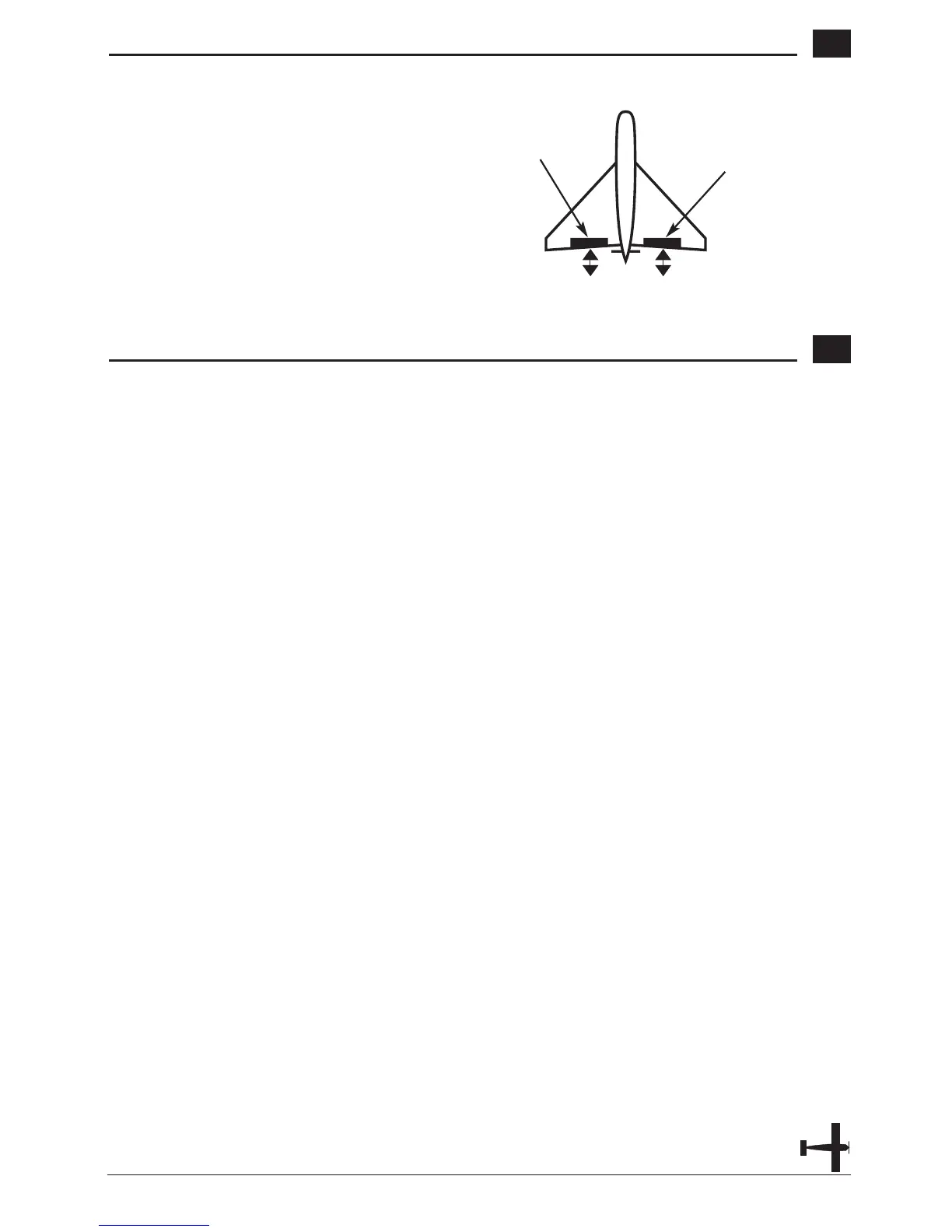

Connect this servo
to the elevator port
of the receiver
Connect this servo
to the aileron port
of the receiver
To Next Page
