JR XP6102 User Manual

PITCH CURVES
6.10
Adjustment of the pitch curve is very
similar to the throttle curve adjustment
described in the preceding section. A
thorough understanding of the Throttle
Curve Section will make pitch curve
adjustment easier to understand. There are
three independent types of pitch curves
available: Normal, Stunt, and Hold. Each
pitch curve contains five adjustable points:
LOW, 1, MID, 3 and HIGH.
Note: The pitch curve for the Throttle
Hold function can only be set if this
system is activated.
73XP6102 - Helicopter Manual
Accessing the Pitch Curve Function
1. Place the transmitter switch in the On
position.
2. Press the Down and Select keys
simultaneously to enter the Function
mode.
3. Press either the Up or Down key until
PITCH appears in the top of the LCD.
Note: Use NORMAL for hover curves
and STUNT for stunt curves. We will
concentrate on the hovering curve
during this example.
4. Press the Select key to select the point
of the curve you want to change.
5. Press either the (+) or (-) key to change
the value of the current curve point. The
range of each point is 0-100% in .5%
intervals.
Note: In each curve, the factory setting
INH indicates Inhibited for points 1
and 3. These values are 25% and
75% respectively, if no value changes
are made to any other points. If any
of the other points have been
changed while these points were
inhibited, the inhibited points will
change to plot a smooth curve. If you
want to keep this from happening,
press the Select key to display the
positions 1 and 3, then press the (+)
or (-) key to activate each point.
6. To set curves for STUNT mode, press
the Select to highlight the NORM
function, then press the (+) or (-) key to
select the STUNT function. Repeat Steps
4 and 5 to complete the procedure.
7. To set the curves for the Throttle Hold
mode ‘’H’’, press the Up key once again
until ‘’H’’ is displayed, and repeat steps
4 and 5.
8. Access the REVO MX function by
pressing the Up key.
9. Access the THROTTLE CURVE function
by pressing the Down key.
10. Exit the PITCH CURVE function by
pressing the Down and Select keys
simultaneously.

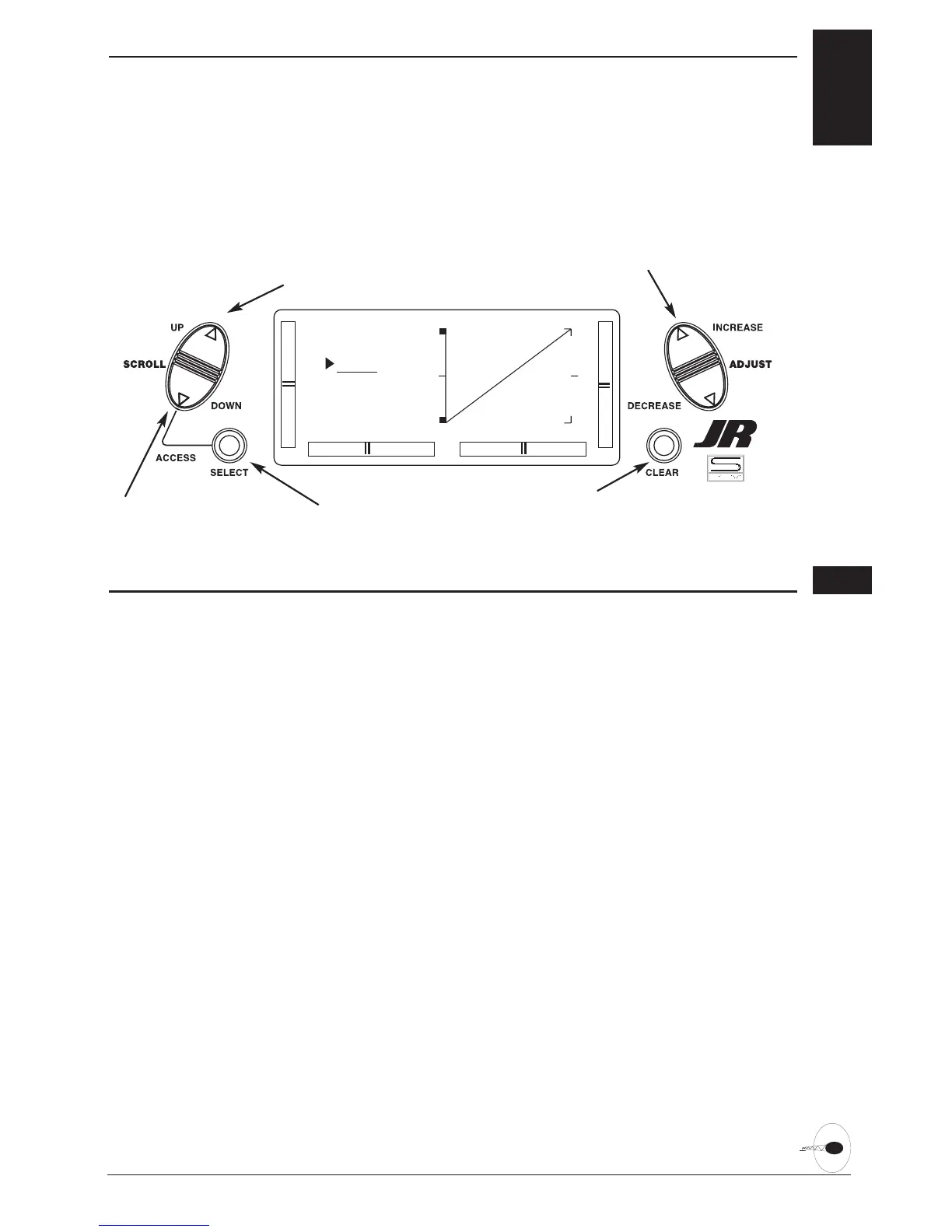

[PITCH]
NORM
I 1
O 1

Go to Throttle Curve menu
Go to Throttle Cut menu
Change value/Switch selection
Reset POS value to O
or
Inhibit function
Select function to change
