JR XP6102 User Manual

59XP6102 - Helicopter Manual
SWASHPLATE TYPE SELECTION
5.10
The Swashplate Mixing function enables
the XP6102 system to operate many
different types of swashplate control
systems, including 3 versions of CCPM.
The Swashplate options are:
1 Servo: Non-CCPM, standard mixing
type helicopter.
2 Servo/180° CCPM
3 Servo/120° CCPM (JR style, most
popular)
3 Servo/90° CCPM

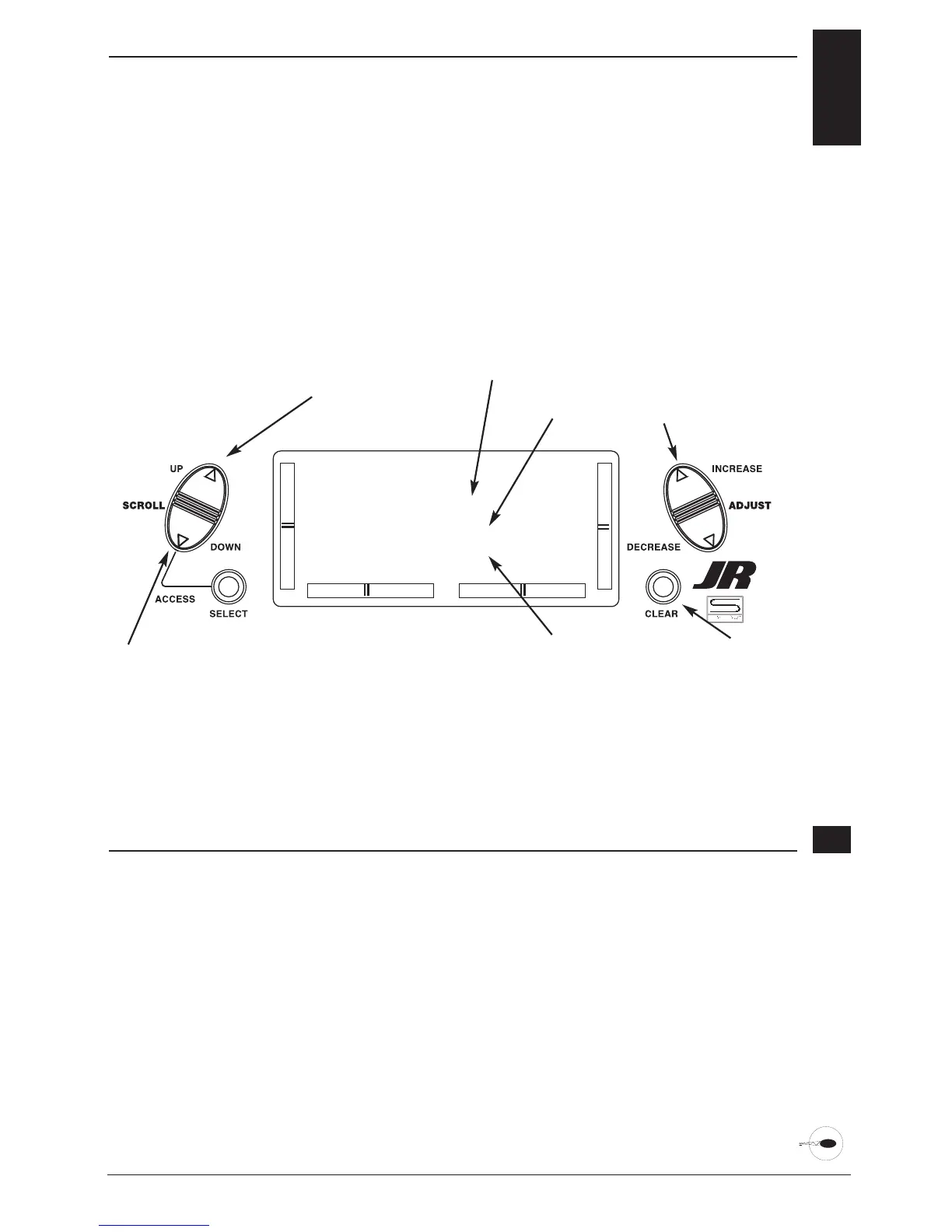

[SWASH TYPE]

NORMAL
1SERVO
V-Tail indicator
Flaperon indicator
Return to Default mode
Go to Model Select menu
Go to Switch Select menu
Turn selected
type on or off
Elevon indicator
Definition of Swashplate Types
1. While pressing the Down and Select
keys, switch the transmitter to the ON
position to enter the system mode.
2. Press either the Up or Down key until
SWASH TYPE is displayed in the upper
center portion of the LCD.
3. Press the (+) or (-) keys to change the
Swashplate type.
4. Pressing the Clear key will reset the
Swashplate Type to the Normal
position.7. To access the AUX2 Switch
function, press the Down key.
5. Press the Up key to access the MODEL
SELECT function.
6. Press the Down key to access the
SWITCH SELECT function.
7. Exit the SWASH TYPE function by
pressing the Down and Select keys
simultaneously.
