FX-3R Maintenance Guide
13-29
[Replacement procedure]
c Before starting the replacement work, always turn OFF the main power, main circuit
breaker, and main switch.
d The battery unit is located on the left in front of the base frame center and below the ATX
power supply (40048006). Remove SL6041092TN (1 pc.) on the left and loosen
SL6040892TN (1 pc.) on the right to detach the battery unit together with the BATTERY
SUPPORT PLATE (40092122).
e Remove four inch screws (40048047) to detach the battery unit from the BATTERY
SUPPORT PLATE (40092122).
Additionally, disconnect the cables from the ATX power supply.
f Replace the battery unit with a new one. Reassemble the parts and components in the
reverse order of disassembly.
Left Right
40048007
Battery unit
40092122
BATTERY SUPPORT PLATE
SL6040892TN
2
SEMS cap bolt with washer M4×8

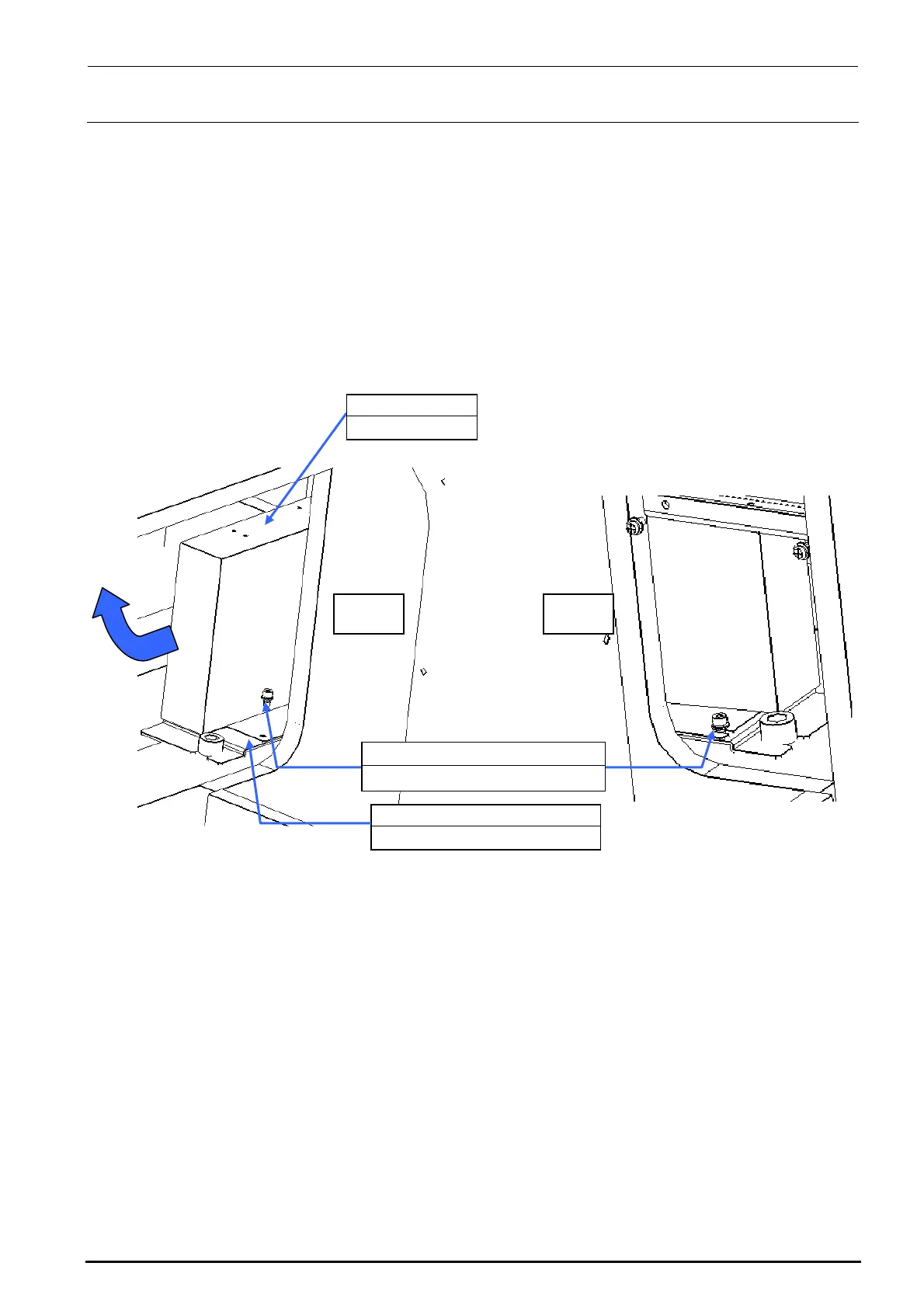

Figure 13-4-10-2 Detaching the Battery Unit
Rev. 1.00
