5-10. Replacing the Centering Pin (Optional)
1) Loosen the screws c, d and e of the guide block A and guide block B to detach the centering
pin together with the guide blocks.
2) At this time, also detach the T-PIN sensor (together with its bracket) from the reference side.
Removing the E ring
12
allows you to pull the centering pin
17
from the damper block.
Removing the E rings
16
(two in total, top and bottom) allows you to remove the centering pin
17
.
When installing a new centering pin, reassemble the components in the reverse order. The
E-rings must also be replaced with new ones.
After the components have been reassembled, adjust the sensor position in the same manner
as described in 5-10, Replacing the T-PIN Sensor.

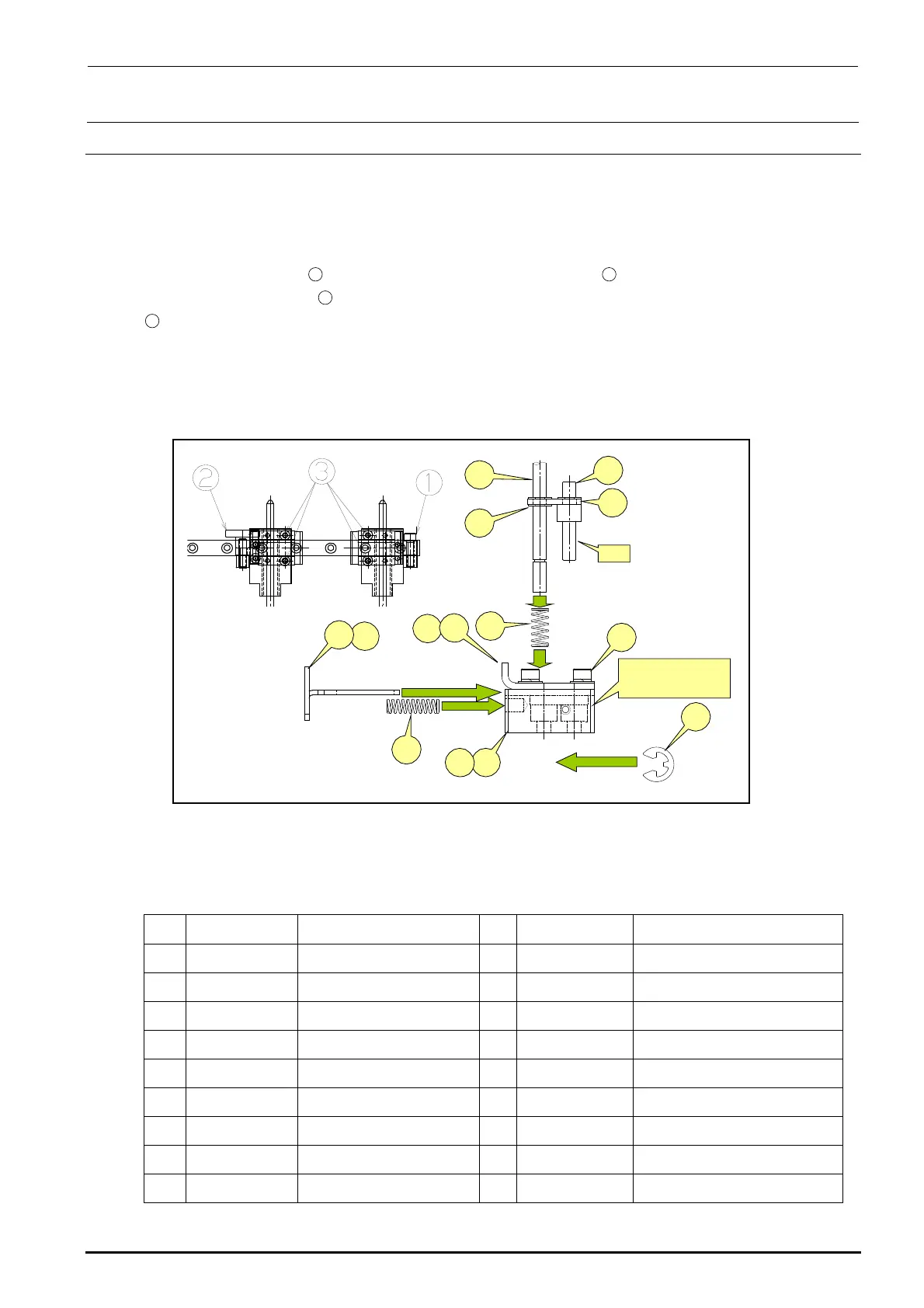

Figure 5-10-1 Centering Pin
Table 5-10-1 Reference for PWB Positioning Hole
[List of Replacement Parts]
Part No. Part name
Part No. Part name
1 40000886 GUIDE_BLOCK_ASM 10
40000895 DAMPER_BLOCK_R
2 40000887 GUIDE_BLOCK_A_ASM 11
SL6030892TN SCREW
3 40000889 GUIDE_BLOCK_B_ASM 12
RE0300000K0 E-RING
4 40000891 STOPER_SLIDE_LEVER_L 13
40000896 DAMPER_LOCK_PIN
5 40000897 STOPER_SLIDE_LEVER_R
14
40000978 DAMPER_LOCK_LINK
6 40000892 DAMPER_BLOCK_L 15
40000950 DAMPER_SPRING
7 40015791 DAMPER_PLATE_L 16
RE0300000K0 E-RING
8 40015792 DAMPER_PLATE_R 17
40001081 CENTERING_PIN 4.0
9 40015793 LOCK_SPRING
⑦
④
⑰
⑬
⑭
⑯
Ａ
⑤
⑨
⑮
⑧
⑪
Ｂ部
右側＝⑧＋⑩＋⑪
左側＝⑦＋⑥＋⑪
⑫
⑩⑥
Section B
Right side = ⑧+⑩+⑪
Left side = ⑦+⑥+⑪
To Next Page
