FX-3R Maintenance Guide
8-5

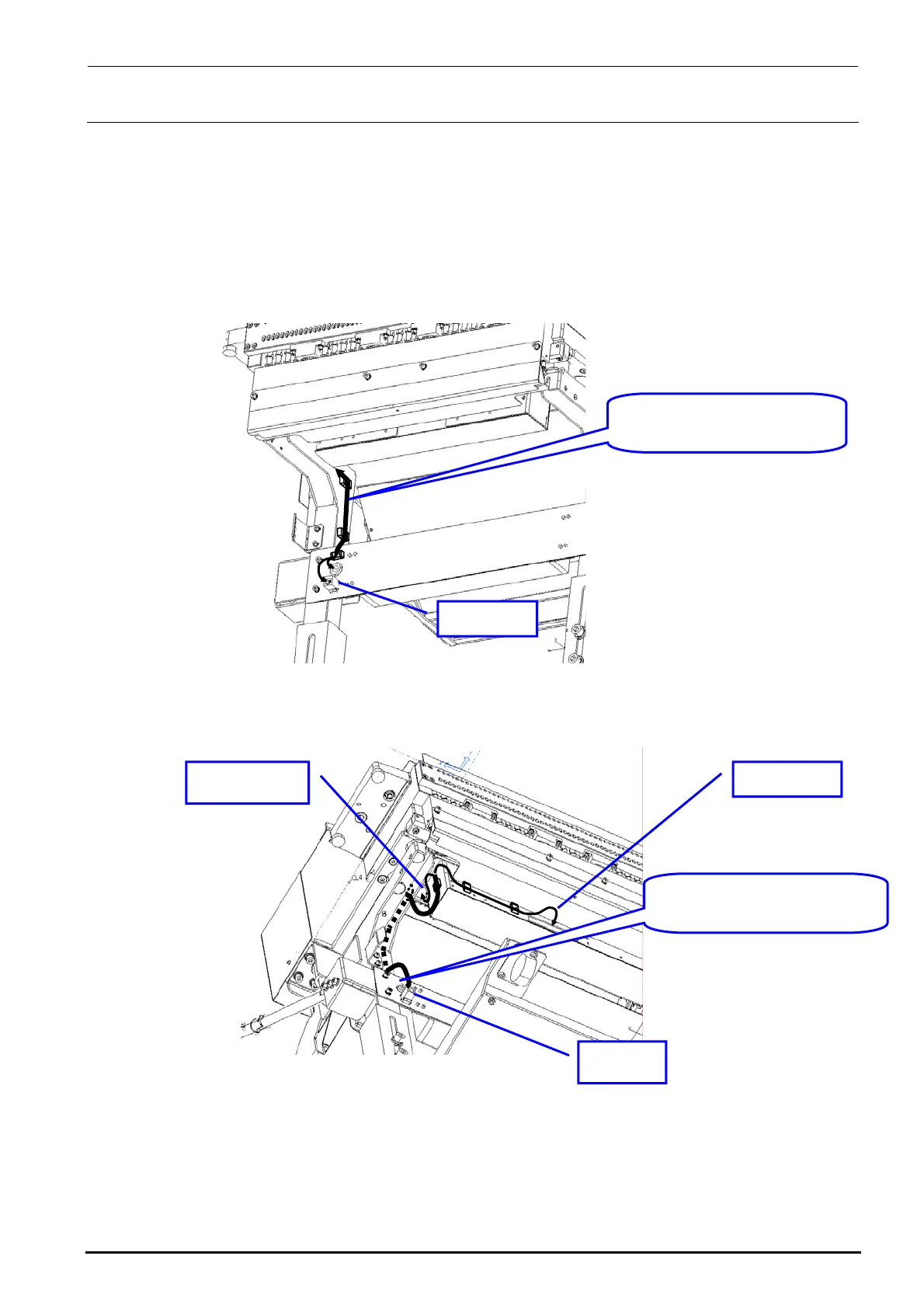

2) Replacing the cable (RFID JOINT CABLE ASM: 40079659)
c Before replacing the cable, disconnect the cable connection from the antenna and relay
connector.
d Disconnect the cable from the cable securing materials (cable band and cable clamp).
e After the cable has been replaced, secure the cable and connect it to the connector in the
original manner.
RFID JOINT CABLE ASM:
40079659
OUT side
Figure 8-1-6-3 Cable Wiring Diagram 1
RFID JOINT CABLE ASM:
40079659
IN side
RFID side Antenna side
Figure 8-1-6-4 Cable Wiring Diagram 2
Rev. 1.00
