32
DTMF 1rones
Freq.
1209 1336
1477
1633
(Hz)
697
1 2 3 A
770
4
5 6
B
852
7
8 9
c
941
*
0
#
D
Single-Frequency Tones
Key
Freq.
Key
Freq.
(Hz)
(Hz)
1 697
5
1209
2 770 6
1336
3
852
7 1477
4
941
8
1633
Note: Some repeater!s'require a special key sequence to
activate Autopatch. Check with the control operator.

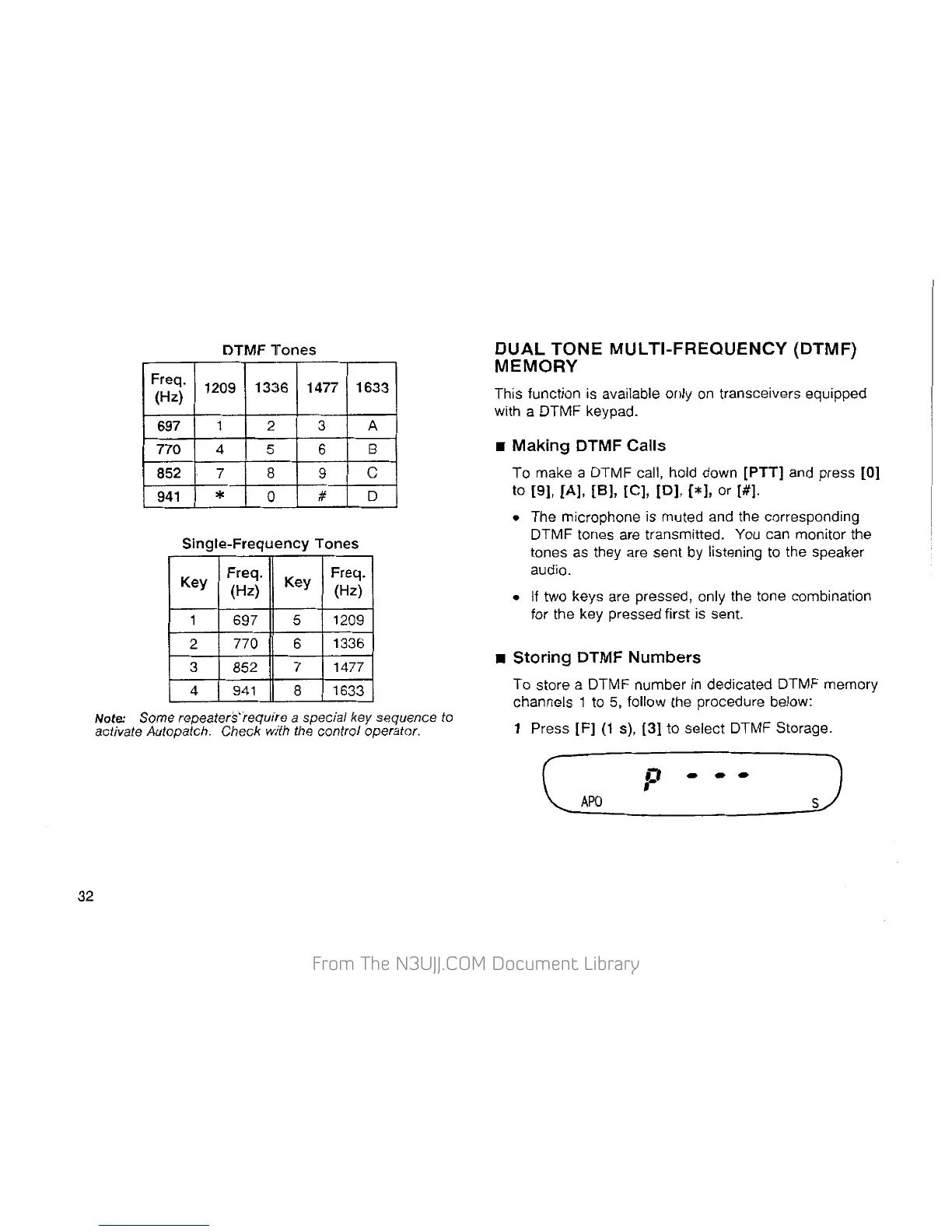

DUAL TONE MULTI-FREQUENCY (DTMF)
MEMORY
This function is available only on transceivers equipped
with a DTMF keypad.
• Making DTMF Calls
To make a DTMF call, hold down [PTT] and press [0]
to (9], [A], [B], [C], [D], [*], or (#).
• The microphone is muted and the corresponding
DTMF tones are transmitted.
You can monitor the
tones as they are sent by listening
to the speaker
audio.
• If two keys are pressed, only the tone combination
for the key pressed first is sent.
• Storing DTMF Numbers
To store a DTMF number in dedicated DTMF memory
channels 1 to
5, follow the procedure below:
1 Press
[F] (1 s), [3] to select DTMF Storage.
p
--.
J
