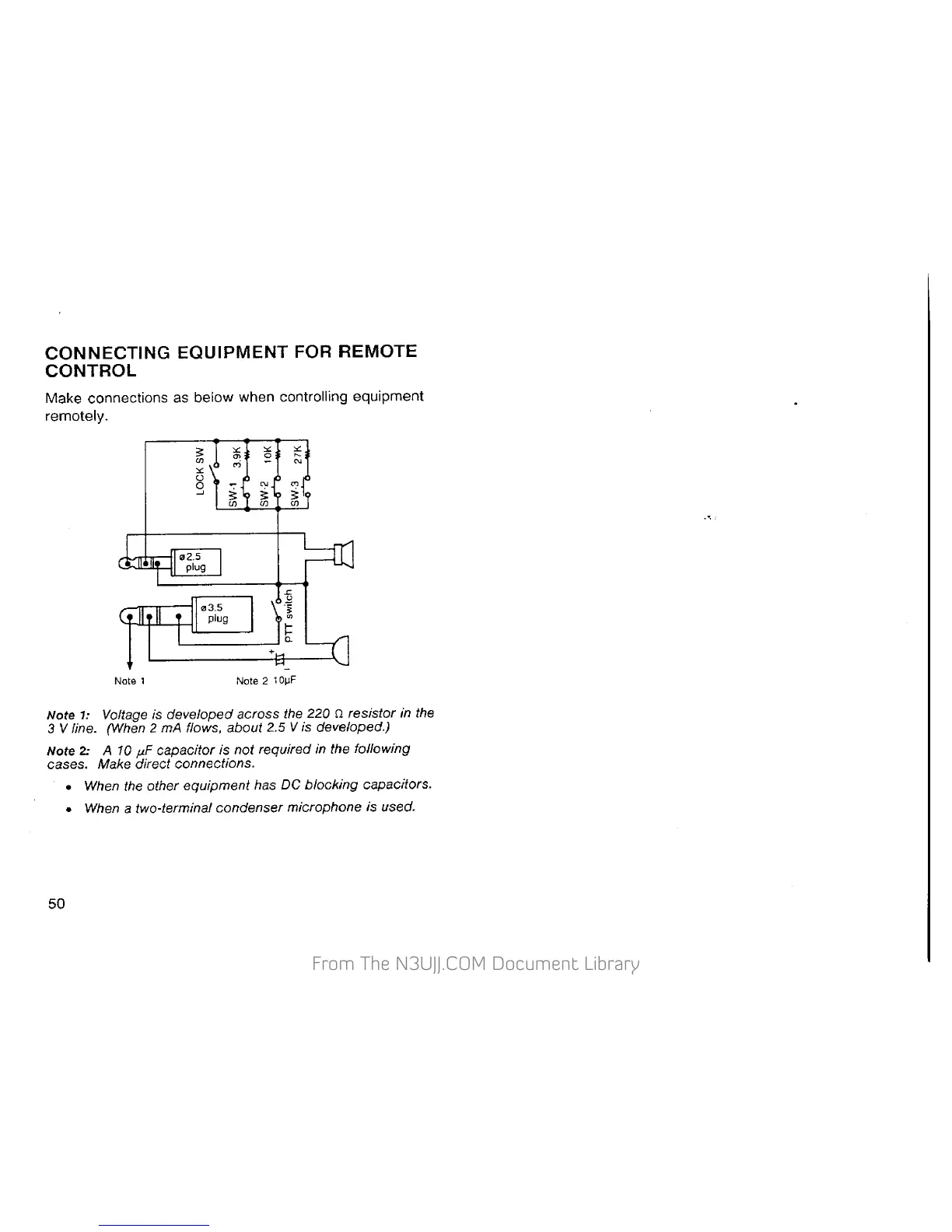

CONNECTING EQUIPMENT FOR REMOTE
CONTROL
Make connections as below when controlling equipment
remotely.
Note 1
:;:
(/)
"'
u
0
...J
a3.5
plug
"'
"'
"'
"'
0
...
,.;
N
,:
(/)
Note 2 1 O~F
Note 1: Voltage is developed across the 220 o. resistor in the
3
V line. (When 2 mA flows, about 2.5 Vis developed.)
Note 2: A 10 pF capacitor is not required in the following
cases. Make direct connections.
• When the other equipment
has DC blocking capacitors.
• When
a two-terminal condenser microphone is used.
50
-~ .
