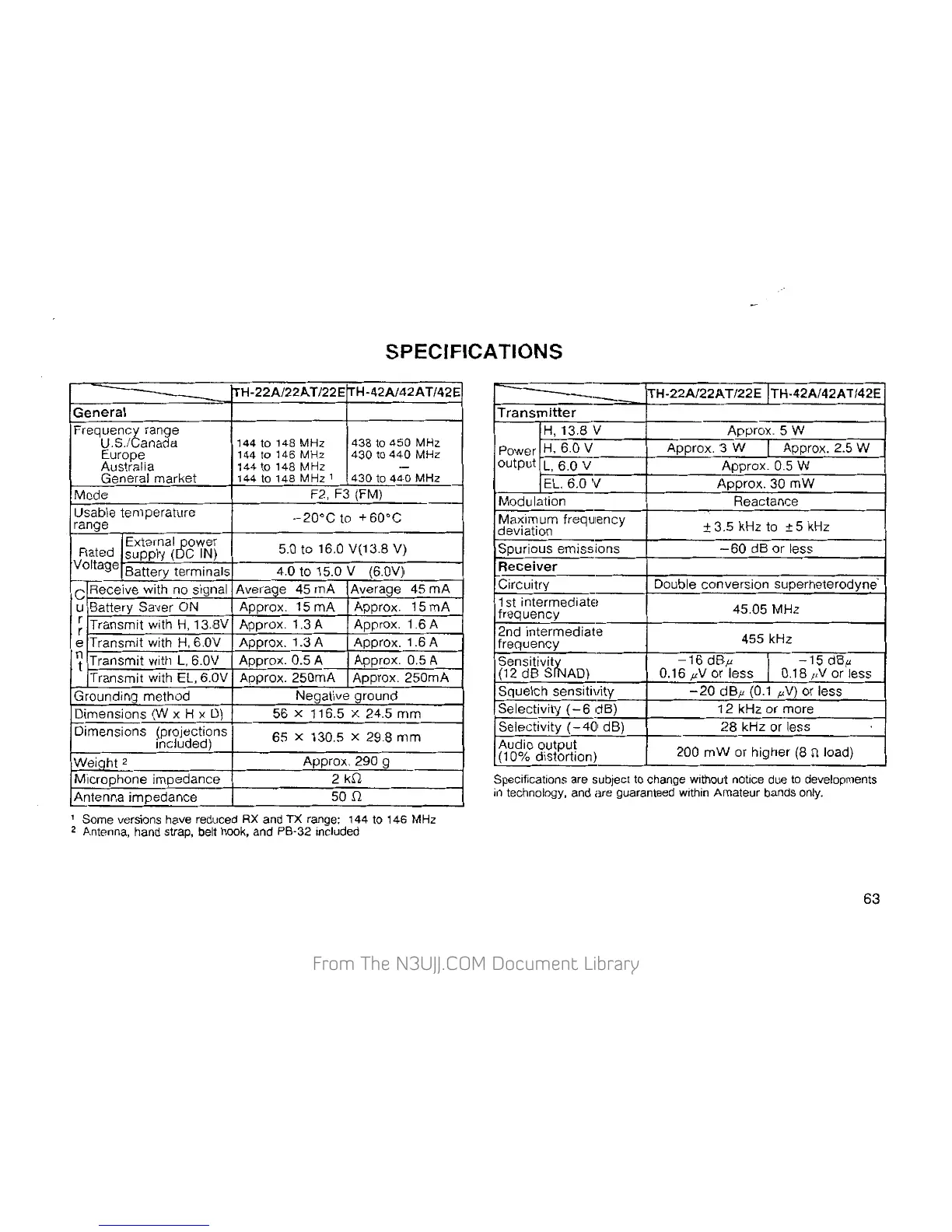

SPECIFICATIONS
trH-22A/22AT/22E
TH-42AI42A T/42E
General
Frequen~t range
U.S.1 anada
144 to 148 MHz
438 to 4o;o MHz
Europe
144 to 146 MHz 430 to 440 MHz
Australia
144 to 148 MHz
-
General market
144 to 148 MHz 1
430 to 440 MHz
Mode
F2, F3 (FM)
Usable temperature
- 20oC to
+ 60"C
range
External
&ower
5.0 to 16.0 V(13.8 V)
Rated
supply ( C
IN)
Voltage
Battery terminals
4.0 to 15.0 V
(6.0V)>
c
Receive with no signal
Average 45 mA
Average
45 mA
u
Battery Saver ON
Approx.
15 mA Approx. 15mA
~ Transmit with H, 13.8V
Approx. 1
.3 A Approx. 1 .6 A
e
Transmit with H. 6.0V Approx. 1.3 A
Approx. 1.6 A
n
Transmit with L. 6.0V
Approx. 0.5 A Approx. 0.5 A
t
Transmit with EL. 6.0V
Approx. 250mA Approx. 250mA
Grounding method
Negative ground
Dimensions (W x H x
D)
56 x 116.5 x 24.5 mm
Dimensions (projections
included)
65 x 130.5 x 29.8
mm
Weight z
Approx. 290 g
Microphone impedance
2 kO
Antenna impedance
son
1
Some versions have reduced RX and TX range: 144 to 146 MHz
2
Antenna, hand strap, belt hook, and PB-32 included
TH-22A/22AT/22E ITH-42A/42AT/42E
Transmitter
H, 13.8 V Approx. 5 W
Power
H. 6.0 V
Approx. 3 W
I
Approx. 2.5 W
output
L, 6.0 V Approx. 0.5 W
EL, 6.0 V Approx. 30
mW
Modulation Reactance
Maximum frequency
deviation
± 3.5 kHz to ± 5 kHz
Spurious emissions
·-60 dB or less
Receiver
Circuitry Double conversion superheterodyne
.
1st intermediate1
45.05 MHz
frequency
2nd intermediate
455kHz
frequency
Sensitivit~
(12 dB S AD)
-16 dS.,u I -15 dBu
0.16 ,uVor less 0.18
1
N or'less
Squelch sensitivity
-20 dBp (0.1 p.V) or Jess
Selectivity (-6 dB) 12 kHz or more
Selectivity
(-40 dB) :~8 kHz or less
Audio output
(1 0% distortion)
200
mW or higher (8 n load)
Specifications are subject to change without notice due to developments
in technology, and are guaranteed within Amateur bands only.
63
