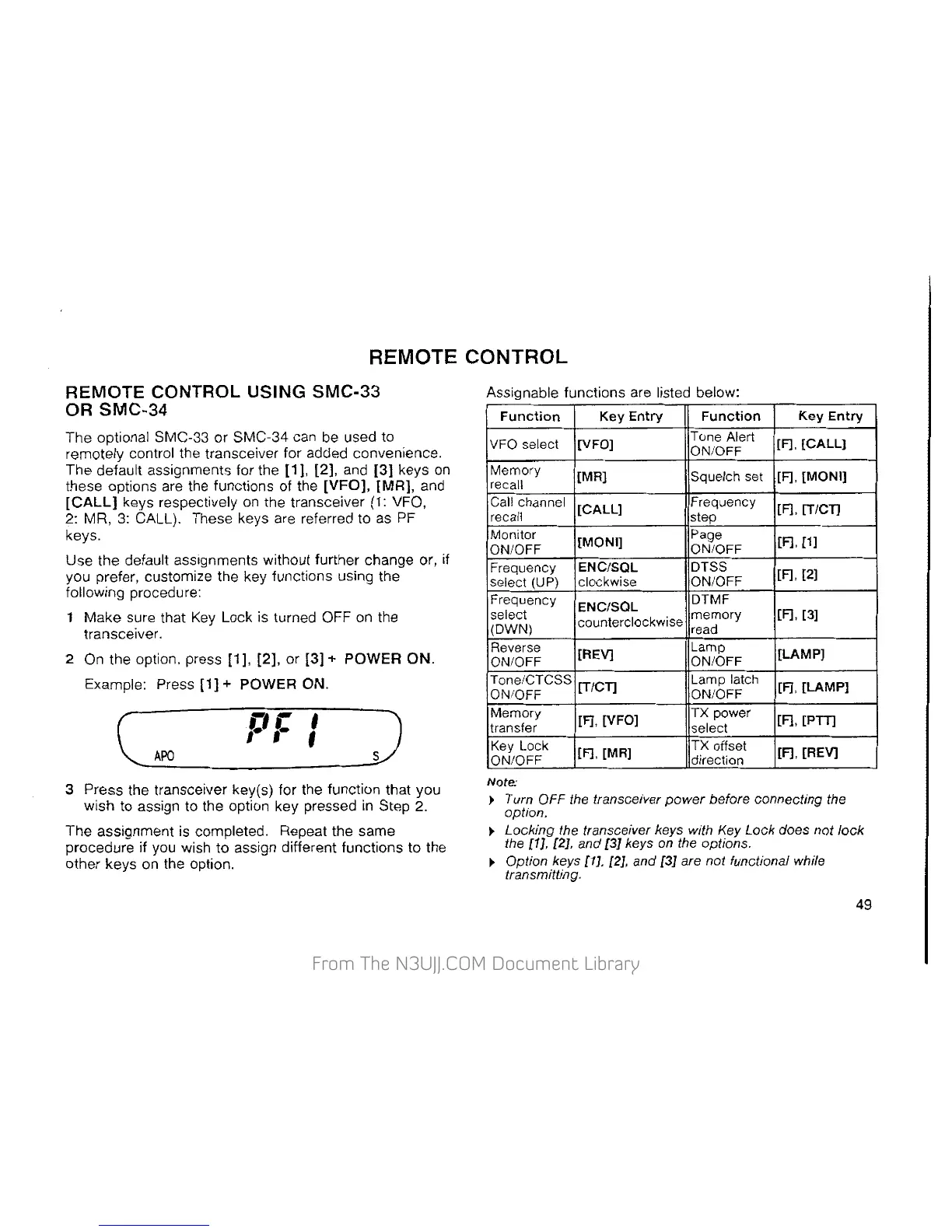

REMOTE CONTROL
REMOTE CONTROL USING
SMC-33
OR
SMC-34
The optional SMC-33 or SMC-34 can
be
used to
remotely control the transceiver for added convenience.
The default assignments for the [ 1
),
[2],
and
[3]
keys
on
these options are the functions of the [VFO],
[MR],
and
[CALL]
keys respectively
on
the transceiver (1: VFO,
2: MR,
3:
CALL). These keys are referred to
as
PF
keys.
Use the default assignments without further change or, if
you prefer, customize the key functions using the
following procedure:
1 Make sure that
Key
Lock is turned OFF
on
the
transceiver.
2 On the option, press
[1
], [2], or [3) + POWER
ON.
Example: Press
[1]
+ POWER ON.
C
oc'
J
-~A~~-----'---'---'----~5
3 Press the transceiver key(s) for the function that you
wish to assign to the option key pressed
in
Step
2.
The assignment is completed. Repeat the same
procedure
if
you wish to assign different functions to the
other keys
on
the option.
Assignable functions are listed below:
Function
Key
Entry
Function
Key
Entry
VFO select
[VFO]
Tone Alert
[F],
[CALL]
ON/OFF
Memory
[MR)
\Squelch set
[F], [MONI]
recall
Call channel
[CALL]
FreqJency
[F], [TICT]
recall
step
Monitor
[MONI)
Page
[F],
[1]
ON/OFF
ON/OFF
Frequency
ENC/SOL DTSS
[F], [2]
select (UP) clockwise
ON/OFF
Frequency
ENC/SOL
DTMF
select
counterclockwise
memory
[F), [3]
(OWN) read
Reverse
[REV]
Lamp
[LAMP]
ON/OFF
ON/OFF
Tone!CTCSS
[T/CT]
Lamp latch
[F], [LAMP]
ON/OFF ON/OFF
Memory
[F), [VFO]
TX
power
[F], [PTT]
transfer
select
Key Lock
[F), [MR]
TX
offset
[F), [REV]
ON/OFF
direction
Note:
• Turn OFF the transceiver
power
before connecting the
option.
• Locking the transceiver keys with Key Lock does not lock
the [1], {2], and
{3]
keys
on
the options.
• Option keys
[1], [2], and [3] are not functional while
transmitting.
49
To Next Page
